All Size of Roller Chain With Good Price
Specifications
all size of roller chaingood quality and good price
ISO9001 manufacture
small order accept
design by client's require

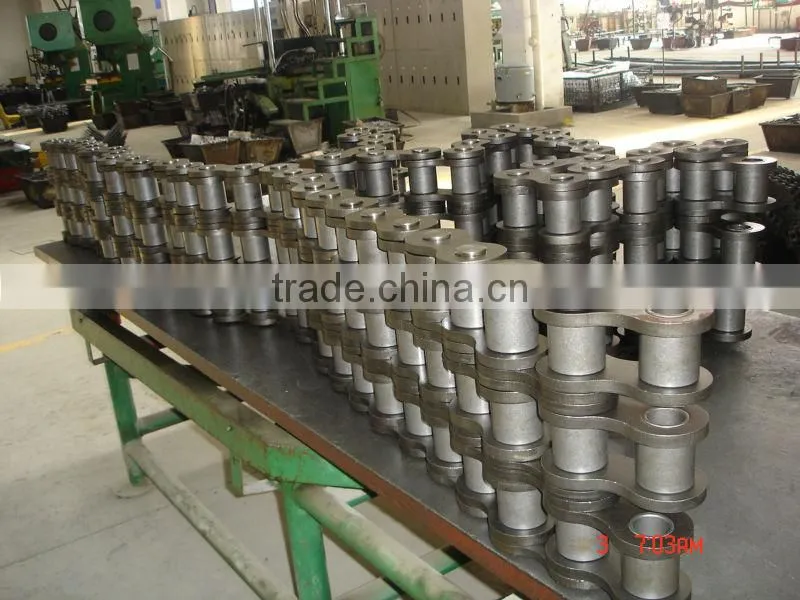

all size of roller chain
good quality and good price
ISO9001 manufacture
small order accept
design by client's require
We product all size roller chain from pitch 4mm to 400mm, also can design the chain with sample or drawing
ANSI |
Pitch |
Roller |
Width |
Pin |
Pin |
Inner Plate depth |
Plate |
Average tensile strength |
Weight |
|
P |
d1 |
b1 |
d2 |
L |
Lc |
h2 |
T |
Q0 |
q |
|
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
kN |
kg/m |
|
*15 |
4.7625 |
2.48 |
2.38 |
1.62 |
6.10 |
6.90 |
4.30 |
0.60 |
2.0 |
0.08 |
*25 |
6.350 |
3.30 |
3.18 |
2.31 |
7.90 |
8.40 |
6.00 |
0.80 |
4.6 |
0.15 |
*35 |
9.525 |
5.08 |
4.77 |
3.58 |
12.40 |
13.17 |
9.00 |
1.30 |
10.8 |
0.33 |
41 |
12.700 |
7.77 |
6.25 |
3.58 |
13.75 |
15.00 |
9.91 |
1.30 |
10.8 |
0.33 |
40 |
12.700 |
7.95 |
7.85 |
3.96 |
16.60 |
17.80 |
12.00 |
1.50 |
17.5 |
0.62 |
50 |
15.875 |
10.16 |
9.40 |
5.08 |
20.70 |
22.20 |
15.09 |
2.03 |
29.4 |
1.02 |
60 |
19.050 |
11.91 |
12.57 |
5.94 |
25.90 |
27.70 |
18.00 |
2.42 |
41.5 |
1.50 |
80 |
25.400 |
15.88 |
15.75 |
7.92 |
32.70 |
35.00 |
24.00 |
3.25 |
69.4 |
2.60 |
100 |
31.750 |
19.05 |
18.90 |
9.53 |
40.40 |
44.70 |
30.00 |
4.00 |
109.2 |
3.91 |
120 |
38.100 |
22.23 |
25.22 |
11.10 |
50.30 |
54.30 |
35.70 |
4.80 |
156.3 |
5.62 |
140 |
44.450 |
25.40 |
25.22 |
12.70 |
54.40 |
59.00 |
41.00 |
5.60 |
212.0 |
7.50 |
160 |
50.800 |
28.58 |
31.55 |
14.27 |
64.80 |
69.60 |
47.80 |
6.4 |
278.9 |
10.10 |
180 |
57.150 |
35.71 |
35.48 |
17.46 |
72.80 |
78.60 |
53.60 |
7.20 |
341.8 |
13.45 |
200 |
63.500 |
39.68 |
37.85 |
19.85 |
80.30 |
87.20 |
60.00 |
8.00 |
431.6 |
16.15 |
240 |
76.200 |
47.63 |
47.35 |
23.81 |
95.50 |
103.00 |
72.39 |
9.50 |
622.5 |
23.20 |
