Specifications
B series Heavy series roller chainsgood quality good price
ISO9001 chain manufacture
small order accept
B series Heavy series roller chains
good quality good price
ISO9001 chain manufacture
small order accept
fastest delivery time

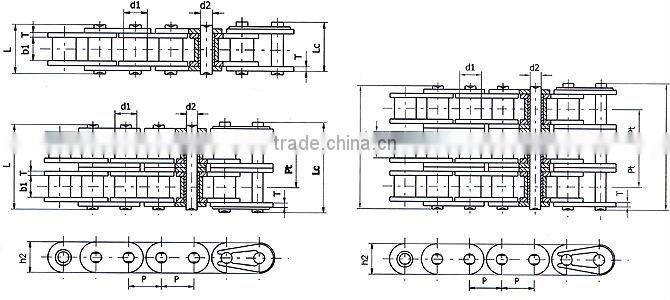

Heavy series Roller chain
Heavy series roller chain mainly type:
Simplex : 08AH-1 -- 40AH-1 40H-1 -- 200H-1
Duplex : 12AH-2 -- 40AH-2 60H-2 -- 200H-2
Triplex : 12AH-3 -- 40AH-3 60H-3 -- 200H-3
Color:Yellow, Blue, Steel, Gold, white, blank and so on.
Material:Carbon steel, Stainless steel
Chain |
Pitch |
Roller |
Width |
Pin |
Pin |
Inner |
Plate |
Ultimate |
Average |
Weight |
|
P |
d1 |
d2 |
d2 |
L |
Lc |
h2 |
T |
Q |
Q0 |
q |
|
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
kN |
kN |
kg/m |
|
06B |
9.525 |
6.35 |
5.75 |
3.28 |
14.3 |
15.2 |
8.26 |
1.5 |
12.0 |
13.5 |
0.46 |
08BH |
12.7 |
8.51 |
5.55 |
4.45 |
14.6 |
16.1 |
11.8 |
1.60 |
17.80 |
19.2 |
0.66 |
12BH |
19.05 |
12.07 |
11.68 |
5.94 |
25.2 |
26.8 |
16.0 |
2.42 |
40.0 |
44.4 |
1.45 |
16BH |
25.4 |
15.88 |
17.02 |
8.90 |
35.7 |
38.9 |
24.1 |
4.0/3.1 |
80.0 |
94.2 |
3.11 |
