Specifications
Short pitch conveyor roller chain attachmentsgood quality good price
ISO9001 chain manufacture
small order accept
Short pitch conveyor roller chain attachments
good quality good price
ISO9001 chain manufacture
small order accept
fastest delivery time

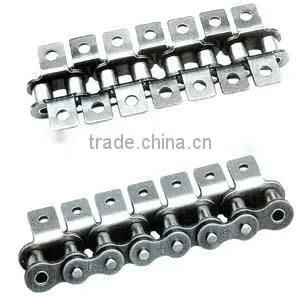

Short Pitch conveyor Roller chain attachments
Attachments chain
item:
1.attachments at one side
2.attachments at inner plates
3.attachments at outer plates
4.attachments at both sides
5.straight attachments
6.crank attachments
7.pin attachments
8.other special attachments
Color:Yellow, Blue, Steel, Gold, white, blank and so on.
Material:Carbon steel, Stainless steel

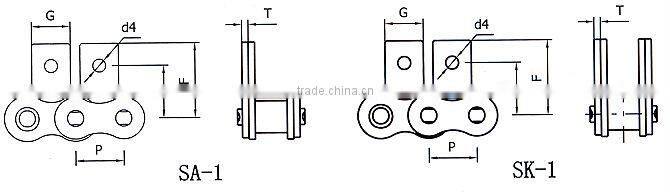

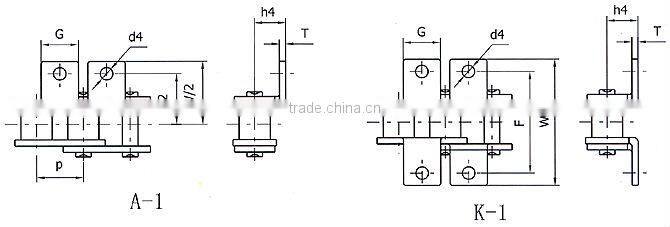

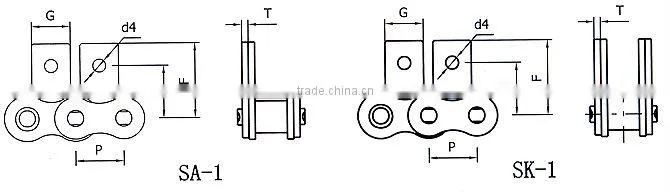

DIN ISO | ANSI | P | G | F | W | T | h4 | d4 |
mm | mm | mm | mm | mm | mm | mm | ||
08A | 40 | 12.700 | 9.5 | 25.40 | 35.2 | 1.50 | 7.90 | 3.4 |
10A | 50 | 15.875 | 12.7 | 31.75 | 46.2 | 2.03 | 10.30 | 5.5 |
12A | 60 | 19.050 | 15.9 | 38.10 | 55.6 | 2.42 | 11.90 | 5.5 |
16A | 80 | 25.400 | 19.1 | 50.80 | 64.8 | 3.25 | 15.90 | 6.8 |
20A | 100 | 31.750 | 25.4 | 63.50 | 87.3 | 4.00 | 19.80 | 9.2 |
24A | 120 | 38.100 | 28.6 | 76.20 | 108.5 | 4.80 | 23.00 | 9.8 |
28A | 140 | 44.450 | 34.9 | 88.90 | 123.0 | 5.60 | 28.60 | 11.4 |
32A | 160 | 50.800 | 38.1 | 101.60 | 142.8 | 6.40 | 31.80 | 13.1 |
*06B |
| 9.525 | 8.0 | 19.04 | 27.0 | 1.30 | 6.50 | 3.5 |
08B |
| 12.700 | 9.5 | 25.40 | 36.4 | 1.60 | 8.90 | 4.5 |
10B |
| 15.875 | 14.3 | 31.75 | 44.6 | 1.70 | 10.31 | 5.3 |
12B |
| 19.050 | 16.0 | 38.10 | 52.4 | 1.85 | 13.46 | 6.4 |
16B |
| 25.400 | 19.1 | 50.380 | 72.6 | 3.10 | 15.88 | 6.4 |
