Swing Draw Bar

Swing Draw Bar photo-1
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Usage:
Farm Tractor
Brand Name:
MF
Model Number:
MFI-91
Payment & Shipping
Payment Methods:
Port of Shipment:
Lahore-Pakistan
Delivery Detail:
Delivery time depends on order quantity.
Usage Farm Tractor
Brand Name MF
Model Number MFI-91
Place of Origin Pakistan

Specifications

We are the Authorized Distributor Of Massey Ferguson & Millat Tractors.
We Have the Different Quality of Tractors & Implement.

We are the Sole distributor and Exporter of Massey Ferguson Tractor in the World wide.
Massey Ferguson is the top Brand Name in world of Tractor Machinery.
We have different Design and Types.
We have the Best and A+Grade Quality Tractors & also their Implements

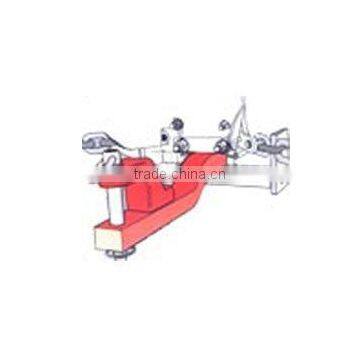

SWINGING DRAW BAR (MFI-91)

(Normal Duty)
1. Model MFI-91
2. Tractor Compatibility MF240, MF260, MF375E, MF385
3. Clevis Hitch point at 36 mm (14 Inch) From PTO Shaft
4. Height Adjustable in relation with PTO centerline
5. The Maximum Static load of the draw bar is 771 KG (1700 lbs) with the
Draw bar with the outer position and 998 KG (2200 lbs) in the inner

Positions.
Ideal gadget for towing any type of farm load trailed implements, by attaching it to a
tractor under center axle housing. It can be fitted to MF-240, MF-260, MF-375E,
MF-385 and MF-3854WDtractors. The swinging draw bar conforms to
British Standards having a Clevis hitch point at 36 mm (14 inch) from the PTO shaft.
The maximum static load for the draw bar is 771 KG (1700 Lb) with the draw bar
in the outer position and998kg (2200 lbs) in the inner position. The draw bar
height is adjustable in relation to the PTO centerline.
