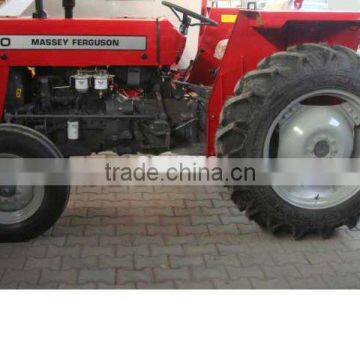

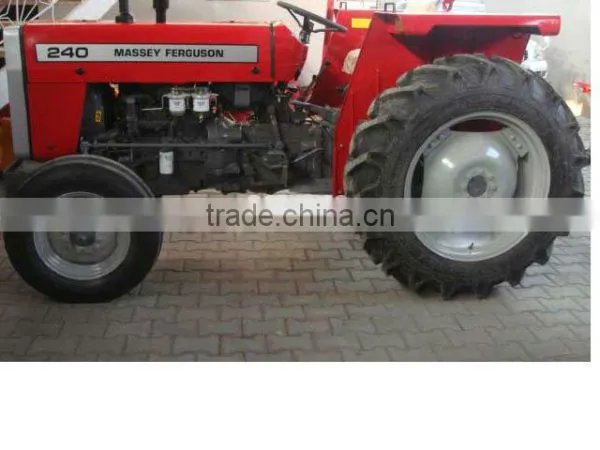

Massey Ferguson Tractor MF 240 (2WD 50HP)

Specifications

We are the Sole distributor and Exporter of Massey Ferguson Tractor in the World wide.
Massey Ferguson is the top Brand Name in world of Tractor Machinery.
We have different Design and Types.
We have the Best and A+Grade Quality Tractors & also their compatible Massey Ferguson Implements.

Performance:
Maximum engine power @2,250 rpm 50 hp*
Maximum torque @ 1,350 rpm 173.5 Nm
Maximum PTO power at rated engines speed  44Hp**
* Certified to BS AU 141a
** Manufacturer's estimate

POWER TAKE OFF:
Type Live
Engine speed @ 540 PTO rpm 1,789 rpm
Shaft diameter 35 mm
No. of splines 6

TRACK ADJUSTMENT:
Front 1,245 - 1,854 mm
Rear 1,321 - 1,930 mm

ENGINE:
Make / Type Perkins / AD 3.152
No. of cylinders 3
Injection Direct
Bore 91.4 mm
Stroke 127.0 mm
Capacity 2.5
Compression ratio 16.5 : 1
Starting aid thermostat
Throttle control Hand & foot
Cooling Water
Air cleaner Oil bath
Air Pre cleaner Over bonnet, air swirl
Fuel filter Dual, high capacity
Exhaust Vertical.

HYDRAULICS:
Functions         Draft control, Position control, Responsecontrol, Constant Pumping
Pump Type       Reciprocating Ferguson pump
Maximum oil flow           16 L / min
Maximum pressure        19.2 MPa
Max. lift capacity with lower links horizontal       1,415 kg
Lower Links           Cat. 1& 2 with interchangeable balls

<!--[if !supportEmptyParas]--> <!--[endif]-->

ELECTRICS:
Voltage 12 V, negative earth
Battery 96 Ah
Starter 2.2 kW Fuel tank 47.5
Alternator 32 Amp

CLUTCH:
Type Dual clutch
Diameter 305 x 254 mm

TRANSMISSION:
Type Sliding Spur
Number of gears 8 forward, 2 reverse
Road speed at 2,250 engine rpm with  12.4 / 11 - 28 rear tyres
Gear kph
Forward 1 2.7
Forward 2 3.9
Forward 3 5.3
Forward 4 7.2
Forward 5 10.6
Forward 6 15.6
Forward 7 21.3
Forward 8 28.6
Reverse 1 3.6
Reverse 2 14.5

FRONT AXLE:

Type            Box Section, Adjustable

STEERING:

Steering   Manual

REAR AXLE AND BRAKES:

Brake Type       Out Board Drum Break

Actuation          Mechanical,Independent or Locked Together.

Parking brake    Hand Lever Operated.

Differential lock  Mechanical.

INSTRUMENTATION:

Gauges            Tachometer, Hourmeter, Fuel level, Battery condition & Water temperature

Warning lights   Direction indicators, Battery charge, Headlight main beam,

                        Low engine oil pressure

TYRES:

Front               6.00 - 16 (6 PR)

Rear               12.4 / 11 - 28 (6 PR)

WEIGHT AND DIMENSIONS:

Weight

Gross Weight 1,690 kg

Dimensions

Wheel base 1,892 mm

Overall length 3,260 mm

Overall width 1,651 mm

Height

Over exhaust 2,145 mm

Over steering wheel 1,410 mm

Turning circle

With brakes           5,560 mm

Without brakes      6,200 mm

Ground clearance   338 mm

CAPACITIES:

Fuel tank               47.5  Liters.

Engine sump           6.8  Liters.

Cooling system      10.2  Liters.

Hydraulic system   33.0  Liters.
Steering box            0.9  Liters.

Oil bath air cleaner   0.65 Liters.

STANDARD EQUIPMENT:

Chain stabilizers, Check chains, Spring suspension seat, Flat top fenders, Standard tool box with set of tools, Weight frame without weights, Top link, Cat.-2 balls, Operator's manual.

OPTIONAL EQUIPMENT:

Front end weights, 9 hole draw bar, Sun Canopy

So If you are interested in these Types So please Notify Us. We have Great Please to Do business with your Company,

Regards.
