Trailer 17.5 Steel Wheel Dimension :
6.00x17.5 | |||||||||
ITEM NO. | SIZE | BOLT | PCD | CBD | Offset | Max Load | Tire | ||
No. | Dia | Type | (mm) | (mm) | (mm) | (kg) | |||
WRS600175-201 | 6.00*17.5 | 6 | 32 | SR22 | 222.25 | 164 | 135 | 1285 | 8R17.5 |
WRS600175-202 | 6.00*17.5 | 10 | 26 | SR18 | 225 | 176 | 133 | 1285 | 8R17.5 |
Trailer 17.5 Steel Wheel Information :
WONDEE AUTOPARTS Wheel Rim Factory can supply more than 100 sizes auto wheel rims.
1>Tubeless wheel rim sizes are from 6.0x17.5 to 11.75 x 22.5.----HOT SALE
2>Tube wheel sizes are from 5.5-15 to 8.5-24.
3>Aluminum Alloy Wheel Rim sizes are from 22.5 x 8.25 to 17.5 x 6.75
4>Car Steel Wheel Rim sizes From 4J X 13 to 16 X 5.5K
5>Engineering Machinery Wheel Rim From 34 - 16.00/1.5(5 pcs) to 24-10.00/2.0(3 pcs)
6>Wheel rim parts supply: rim, demountable rim, lock ring, disc.

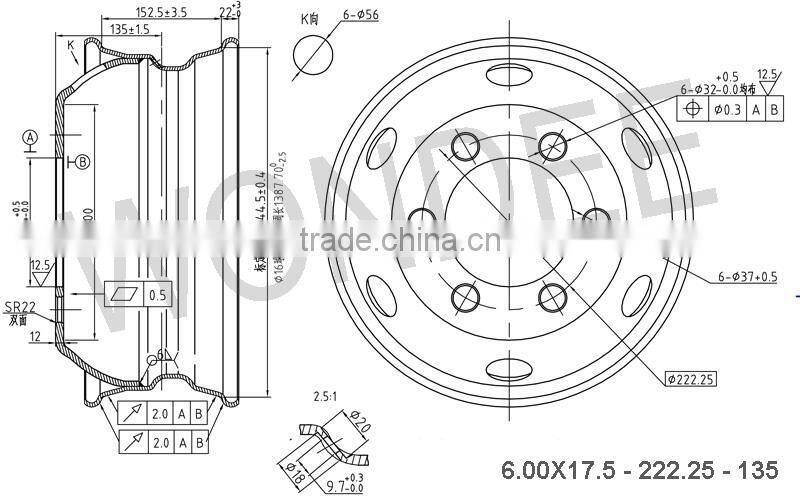

The Drawing about 6.00x17.5 Wheel Rim:
Trailer 17.5 Steel Wheel Composed of:
Wheel Rim Production Line:

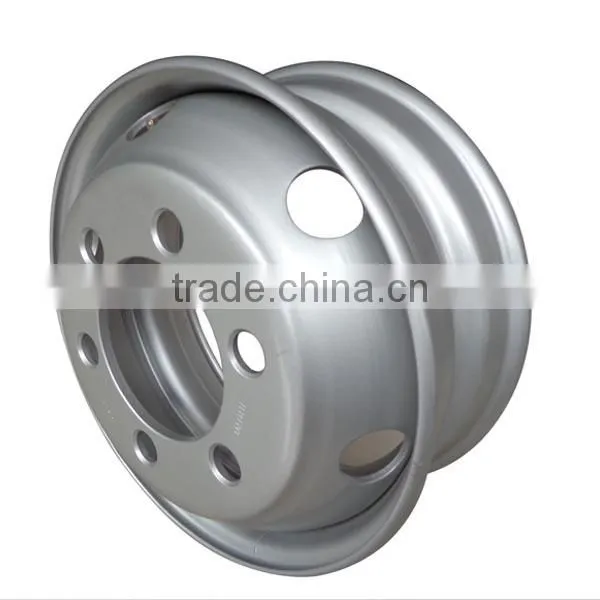

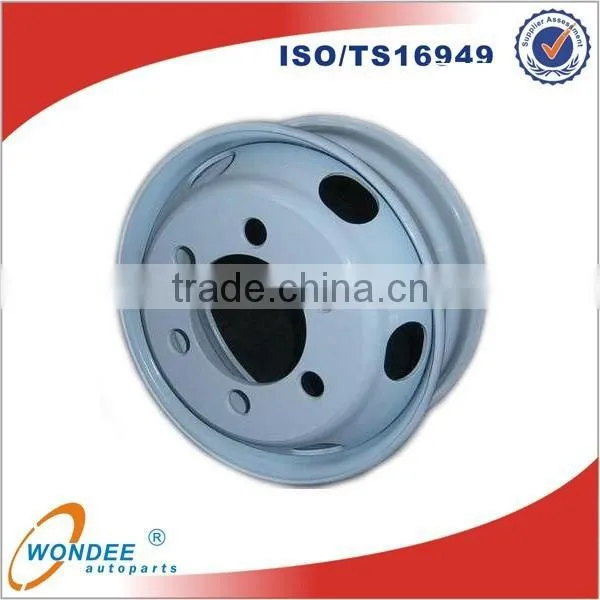

The Detail Photos About Wheel Rim:
Tubeless Wheel Rim Dimension:
Tube Wheel Rim Dimension:
Besides Trailer 17.5 Steel Wheel, WONDEE AUTOPARTS also Supply SEMI TRAILER, LEAF SPRING,SUSPENSION, LANDING GEAR ...........
More details, pls visit our website:
