Semi Rims Dimension: | |||||||||
9.00x22.5 | |||||||||
ITEM NO. | SIZE | BOLT | PCD | CBD | Offset | Max Load | Tire | ||
No. | Dia | Type | (mm) | (mm) | (mm) | (kg) | |||
WRS900225-203 | 9.00*22.5 | 10 | 26 | ISO | 335 | 281 | 161 | 3700 | 12R22.5 |
WRS900225-220 | 9.00*22.5 | 10 | 26 | ISO | 335 | 281 | 175 | 3700 | 12R22.5 |
WRS900225-222 | 9.00*22.5 | 10 | 27 | SR18 | 335 | 281 | 175 | 3700 | 12R22.5 |
Semi Rims Information: | |||||||||
WONDEE AUTOPARTS Wheel Rim Factory can supply more than 100 sizes auto wheel rims. | |||||||||
1.Tubeless wheel rim sizes are from 6.0x17.5 to 11.75 x 22.5. ----HOT SALE | |||||||||
2.Tube wheel sizes are from 5.5-15 to 8.5-24 | |||||||||
3. Aluminum Alloy Wheel Rim sizes are from 22.5*8.25 to 17.5*6.75 | |||||||||
4. Car Steel Wheel Rim sizes from 4J X 13 to 16 x 5.5K | |||||||||
5. Engineering Machinery Wheel Rim from 34-16.00/1.5(5 pcs) to 24-10.00/2.0(3 pcs) | |||||||||
6. Wheel rim parts supply: rim, demountable rim, lock ring, disc. | |||||||||
Semi Rims Detail Photos:

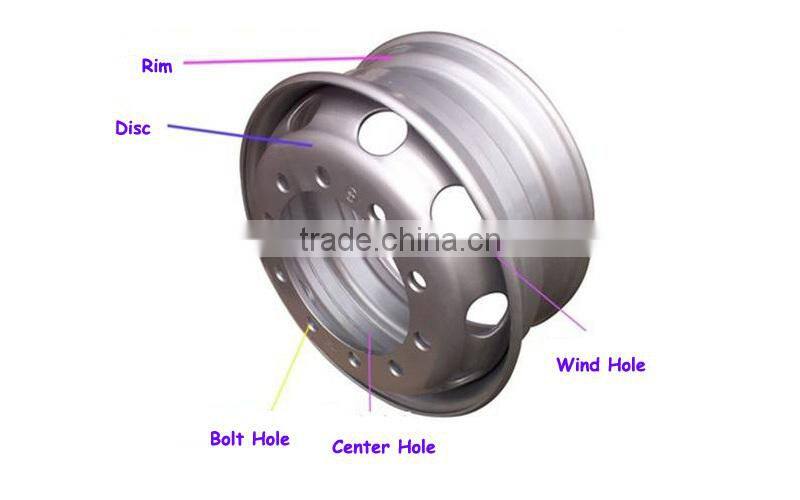

Tubeless Wheel Rim Composed of:
Semi Rims Drawing:
Semi Rims Production Line:
Tubeless Wheel Rim Dimension:
Tube Wheel Rim Dimension:
Besides Semi Rims, WONDEE AUTOPARTS also Supply SEMI TRAILER, LEAF SPRING,SUSPENSION, LANDING GEAR ...........
More details, pls visit our website:
