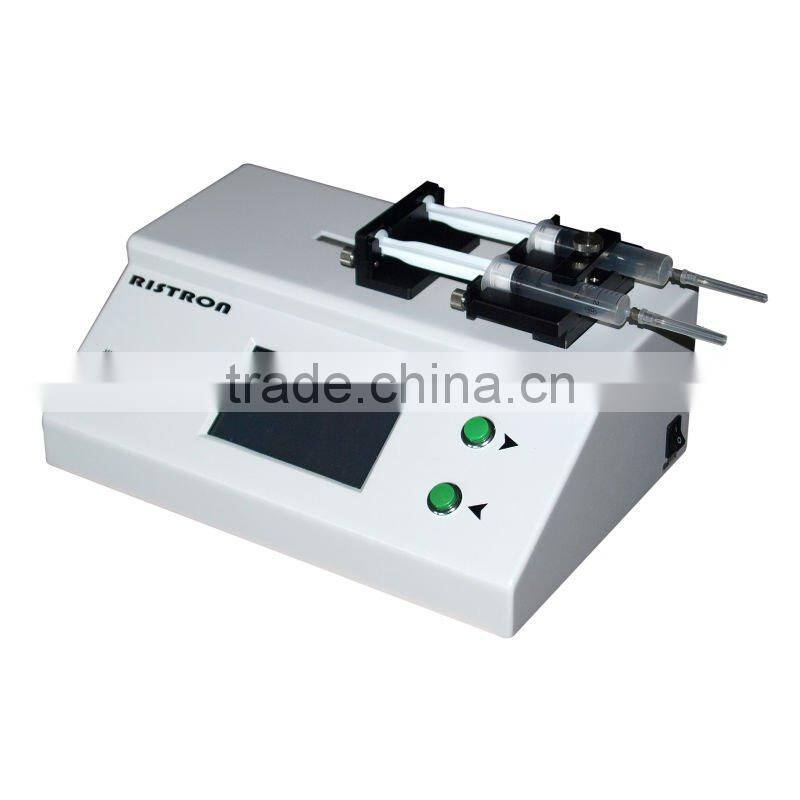

RISTRON RSP02-B double channels&push-pull digital hospital lad syringe pump

Specifications

RISTRON RSP02-B double channels&push-pull digital hospital lad syringe pump

RISTRON RSP02-B double channels&push-pull digital hospital lad syringe pump

Function Introduction:





1.RSP series injection pump is widely used in chemical reaction injection experiments, long time animal drug injection experiments and other micro-injection experiments in laboratories.



2.3.5 inch (320 *240) LCD touch screen device & WinCE system built-in, the operation is simple and intuitive.



3.Can be connected to the wireless mouse remote control settings, making RSP injection pump work in enclosed environmentlike a ultra-clean table.



4.Connected with a pedal board device, to replace the frequent click operation, easily complete the experiment.



5.Injector internal-input function,you can chose a injector from the list or inpute the injector internal diameter.



6.Memory function for power failure:1)EEPROM can save setting parameters, needless reset again when power is on.2)If it’s out of power when it’s working on the flow mode of, it can keep working according to the parameter set before when power is on again.



7.Occlusion protection function: when the pushing mechanism of the injection pump is blocked in the working, the injection pump will stop pushing and give a warning.



8.485 bus communication is adopted and can be connected with a PC,control through the software.



external control interface: with input & output control functions.



9.Flow calibration function: a more accurate flow is got through the flow calibration procedure.



10.The injector protection:the position of the limiting block can be adjusted to revent the injector is impaired







Specifications:







Injection Pump Type	RSP01-A
Passage Number	1
Injection Volume/Microstep	0.13ul(60ml injector)
Injector Type	10ul-140ml
Flow Scope	0.831nl/min-150.50ml/min
Injection Distance/Microstep	1/16step:0.156um
Line Speed Max.	130mm/Min
Line Speed Min.	5um/Min
Leg Speed Max.	13867(1/16step)/sec
Leg Speed Min.	16(1/16step)/30sec
Working Type	Single Push
Linear Trust	>18kgf
Accuracy Control	≤±0.5%
Set Type	Click on Touch Screen
Display Type	LCD Touch Screen
Voltage Range	AC100-240V
Working Conditions	Temp5-40°C,opposite Temp<80%
Size	266*188*140(mm)
Weight	1.8KG
