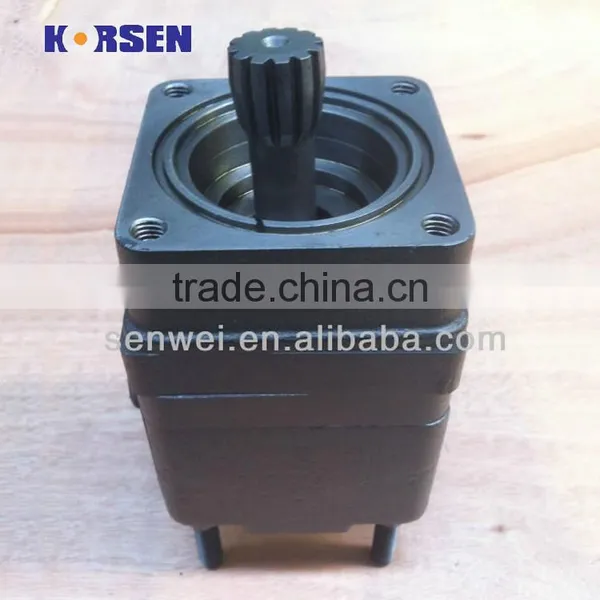

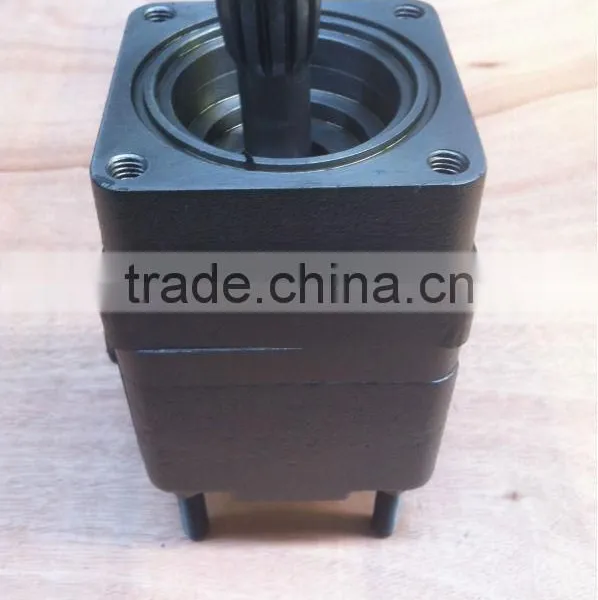

Hydraulic Motor OMS Series Substitute For Eton Charlynn Orbit Motor

Hydraulic Motor Oms Series Substitute For Eton Charlynn Orbit Motor

Specification

Introduction

• Max. pressure is the allowed pressure at the inlet port. Rated pressure is the working pressure difference between inlet and outlet port.
• A simultaneous maximum RPM and maximum pressure NOT recommended.
• Maximum pressure or maximum RPM operation: 10% of very minute.
• Recommended fluids: Anti-wear type of hydraulic oil. Viscosity recommended 37-73cSt. Recommended filtration ISO18/13. Maximum operating temperature recommended 80°C.
• Special high pressure capacity shaft seal ensures back pressure up to 10 Mpa.Recommended preferable back pressure 5 Mpa. Case drain line is recommended when back pressure higher than 5 Mpa. When case drain line is used, make sure the motor is always filled with oil. The motor life is benefited from a case drain line.
• It is highly recommended thar the motor runs at 30% of rated pressure for at least one our before application of full load. Be sure the motor is filled with fluid prior to any load applications.

Feature

• Low pressure of start-up, smooth reliable operation and high efficiency.
• Shaft use bearing, higher pressure, speed and higher radial force.
• Shaft seal can bear high pressure of back and the motor can be used in parallel or series
• Wide variety of mounting flanges, shafts ,ports and easy installation.

Advantages

• Advanced gear set parameter design, low start- up pressure, high efficiency and steady low rotation.
• High operate pressure and output torque.
• Advanced shaft seal design, high back pressure ability.
• Advanced driver-linker design, prolong operating life.
• Advanced distribution system design which can automatically compensate in operation.
• Motor can be used in parellel or in series, outer drain pipes when in series linkaged.
• Compact volume and easy installation.
• Adapt tapered roller bearings that permit high axial and radial force. The case can offer capacities of high pressure and high torque in the wide of applications.

Pictures

Certificate

Trade

In general, we deliver goods 15-20 days after the account’s reaching, and we usually choose DHL, UPS, TNT, EMS or Fed-Ex, of course, you can appoint another .

 Service

• 1 years since the date of purchase
• Reply within 24 hours
• Quick delivery
• OEM and ODM are accepted

Company

We can offer more than 300 kinds of orbit motors with variety series of models and data, with rated displacement from 50cc/r to 1000cc/r, rotation speed from 1000r/min to 100r/min, and max torque from 100Nm ~2000Nm. Our products can substitute Danfoss and Char-Lynn series products.

   With the new product technology, Gerotor/Geroler motors have won a good reputation with high quality in the marketplace. They are widely used in plastic injection machinery, fishing machinery, mining equipment, oil-drilling equipment, lift trucks, wheel loaders, harvesting machinery and tractors.
