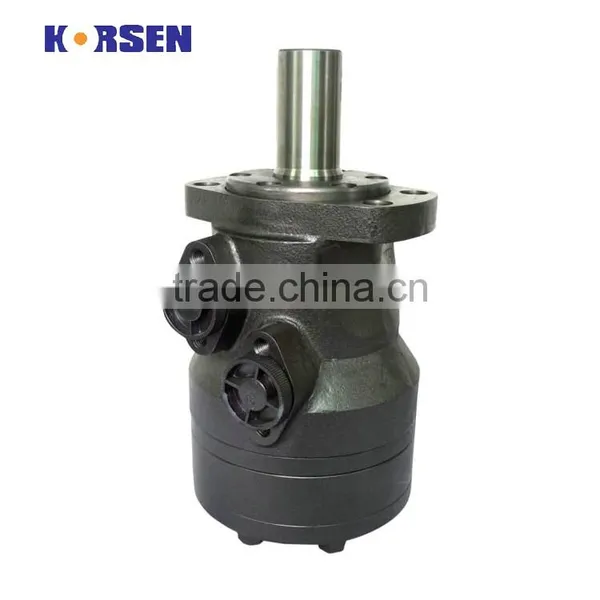

SMH Series Hydraulic Orbit Motor For Engineering Machinery
Introduction
We are leading manufacturer of hydraulic orbit motor and steering control units in china , we design and produce Orbit motor (Disc distribution motor and shaft distribution motor ) rated displacement from 50cc/r-1000cc/r , Rated speed from 1000r/min -100r/min , and max torque from 100Nm-2000Nm., mainly used in Construction machinery and agriculture machinery .
Specification Data ---------SMH Series
Displ.cm3/r |
200 |
245 |
310 |
390 |
490 |
630 |
800 |
985 |
|
|
FLOW LPM |
Continuous |
80 |
80 |
80 |
80 |
80 |
80 |
80 |
80 |
Intermittent |
100 |
100 |
100 |
100 |
100 |
100 |
100 |
100 |
|
|
RPM Max speed |
Continuous |
360 |
320 |
250 |
200 |
156 |
120 |
100 |
73 |
Intermittent |
470 |
390 |
300 |
240 |
200 |
150 |
120 |
100 |
|
|
Pressure Bar |
Continuous |
175 |
175 |
175 |
155 |
125 |
125 |
100 |
90 |
Intermittent |
200 |
200 |
200 |
190 |
150 |
150 |
120 |
100 |
|
|
Torque Nm |
Continuous |
500 |
614 |
777 |
866 |
877 |
1128 |
1146 |
1270 |
Intermittent |
573 |
700 |
888 |
1061 |
1053 |
1350 |
1375 |
1411 |
|
Introduction
- A simultaneous maximum torque and maximum speed NOT recommended.
- Bar-True pressure difference between inlet port and outlet port.
- Continuous Rating-Motor may be run continuously at these ratings.
- Intermittent Operation-10% of very minute
- To assure best more life, run motor for approximately one hour at 30% of rated pressure before application to full load. Be sure motor is filled with fluid prior to any load applications.
Feature
- Compact in design with disc valving and Geroler
- High pressure capacity shaft seal
- Design and manufacture of the spline and drives give the motor durability
- Wide variety of mounting flanges,shafts,ports and speed provides design flexibility
- Direction of shaft rotation and speed can be controlled easily and smoothly
- Best combination of high efficiency and economy in medium duty applications
Advantages
- Compact size, high efficiency
- Low-friction and long life advantages
- Internal check valves, Escort seal
- This motor has a rugged housing with an extra large capacity side load bearing
- Shaft seal can bear high pressure of back and the motor can be used in parallel or series
- Geroler and drive use the SMT series motors parameter, prolong operating life.
Pictures
Certificate
Trade
| OEM | Yes | |
| MOQ | 1 PCS Steering Control Unit | |
| Port | Qingdao, Shanghai | |
| Lead Time | Sample | Within 7 working days |
| Steering Control Unit | 15-20 working days | |
| Payment | L/C,T/T | |
30% advance payment, the balance paid before shipment | ||
| Packing | Motor each have their own carton, the outer packing is a five-layer plywood boxes |
|
| Shipping |
1)By air or sea or combined transportation. 2)Express: FEDEX, UPS, DHL, EMS. |
|
In general, we deliver goods 15-20 days after the account’s reaching, and we usually choose DHL, UPS, TNT, EMS or Fed-Ex, of course, you can appoint another .
Service
- 1 years since the date of purchase
- Reply within 24 hours
- Quick delivery
- OEM and ODM are accepted
Company
We can offer more than 300 kinds of orbit motors with variety series of models and data, with rated displacement from 50cc/r to 1000cc/r, rotation speed from 1000r/min to 100r/min, and max torque from 100Nm ~2000Nm. Our products can substitute Danfoss and Char-Lynn series products.
With the new product technology, Gerotor/Geroler motors have won a good reputation with high quality in the marketplace. They are widely used in plastic injection machinery, fishing machinery, mining equipment, oil-drilling equipment, lift trucks, wheel loaders, harvesting machinery and tractors.
