SMW Series Wheel Motor/Hydraulic Orbit Motor/Case Drain Motor
Specification
Displacement |
cc/r |
200 |
245 |
310 |
390 |
490 |
630 |
800 |
985 |
||
Flow LPM |
Continuous |
80 |
|||||||||
Intermittent |
100 |
||||||||||
Speed RPM |
Continuous |
360 |
320 |
250 |
200 |
156 |
120 |
100 |
73 |
||
Intermittent |
470 |
390 |
300 |
240 |
200 |
150 |
120 |
100 |
|||
Pressure Bar |
Continuous |
175 |
155 |
125 |
100 |
90 | |||||
Intermittent |
200 |
190 |
150 |
120 |
100 |
||||||
Torque Nm |
Continuous |
500 |
614 |
777 |
866 |
877 |
1128 |
1146 |
1270 |
||
Intermittent |
573 |
700 |
888 |
1061 |
1053 |
1350 |
1375 |
1411 |
|||
Introduction
- A simultaneous maximum torque and maximum speed NOT recommended.
- Bar-True pressure difference between inlet port and outlet port.
- Continuous Rating-Motor may be run continuously at these ratings.
- Intermittent Operation-10% of very minute
- To assure best more life, run motor for approximately one hour at 30% of rated pressure before application to full load. Be sure motor is filled with fluid prior to any load applications.
Feature
- Compact size, high efficiency
- Low-friction and long life advantages
- Internal check valves, Escort seal
- This motor has a rugged housing with an extra large capacity side load bearing

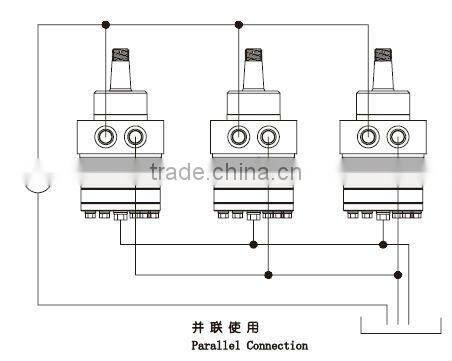

- Shaft seal can bear high pressure of back and the motor can be used in parallel or series
- Geroler and drive use the SMT series motors parameter, prolong operating life.
Pictures
Certificate
Trade
| OEM | Yes | |
| MOQ | 1 PCS Steering Control Unit | |
| Port | Qingdao, Shanghai | |
| Lead Time | Sample | Within 7 working days |
| Steering Control Unit | 15-20 working days | |
| Payment | L/C,T/T | |
30% advance payment, the balance paid before shipment | ||
| Packing | Motor each have their own carton, the outer packing is a five-layer plywood boxes |
|
| Shipping |
1)By air or sea or combined transportation. 2)Express: FEDEX, UPS, DHL, EMS. |
|
In general, we deliver goods 15-20 days after the account’s reaching, and we usually choose DHL, UPS, TNT, EMS or Fed-Ex, of course, you can appoint another .
Service
- 1 years since the date of purchase
- Reply within 24 hours
- Quick delivery
- OEM and ODM are accepted
Company
We can offer more than 300 kinds of orbit motors with variety series of models and data, with rated displacement from 50cc/r to 1000cc/r, rotation speed from 1000r/min to 100r/min, and max torque from 100Nm ~2000Nm. Our products can substitute Danfoss and Char-Lynn series products.
With the new product technology, Gerotor/Geroler motors have won a good reputation with high quality in the marketplace. They are widely used in plastic injection machinery, fishing machinery, mining equipment, oil-drilling equipment, lift trucks, wheel loaders, harvesting machinery and tractors.
Factory
Cooperation
Equipment
SMW series wheel motor
1.Geroler and drive use the SMT series motors parameter , prolong operating life .
2.Compact size , high efficiency
3.low-friction and long life advantages
4.internal check vlves, escort seal
5.rugged housing with an extra large capacity side load bearing
6.shaft seal can bear high pressure of back and the motor can be used in parallel or series
7.geroler and drive use the SMT series motors parameter, prolong operating life.
