About Product

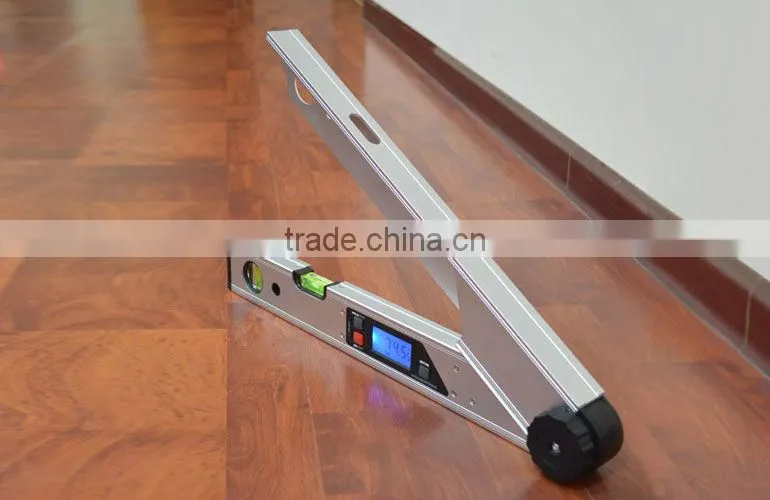

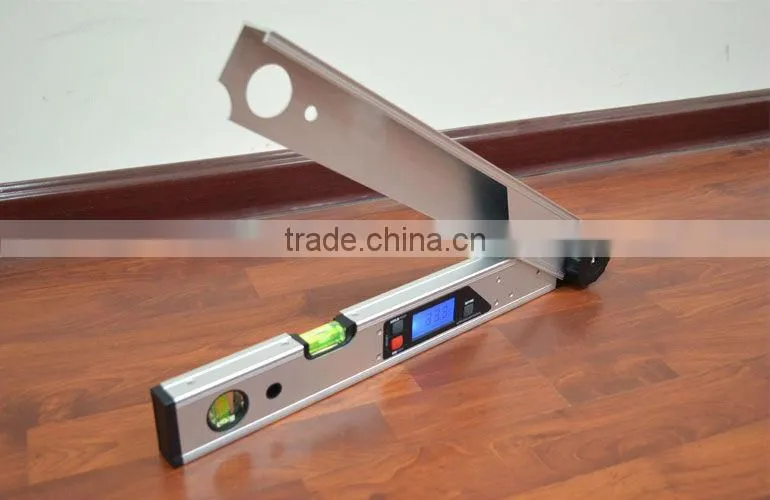

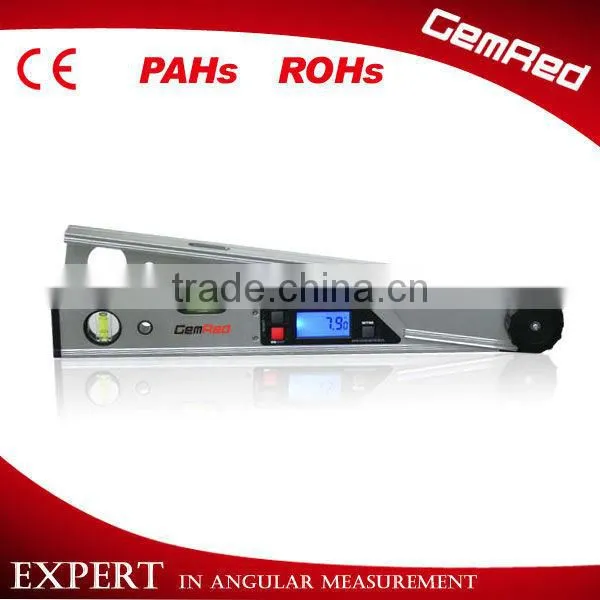

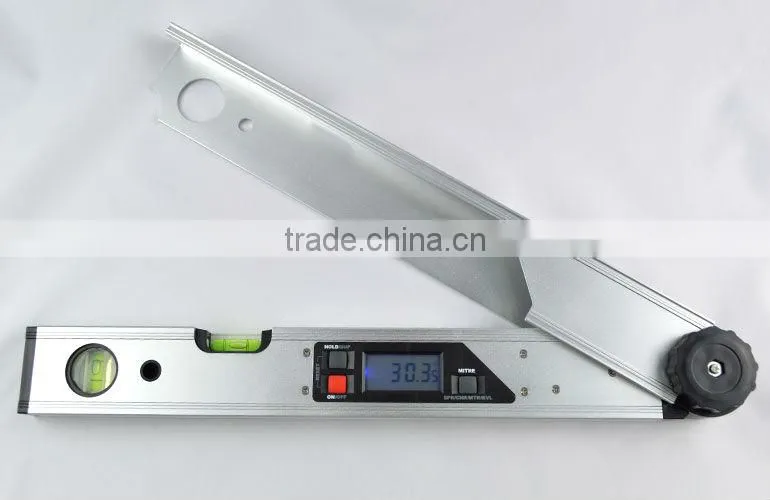

angle degree measurement electronic goniometer with analog vials

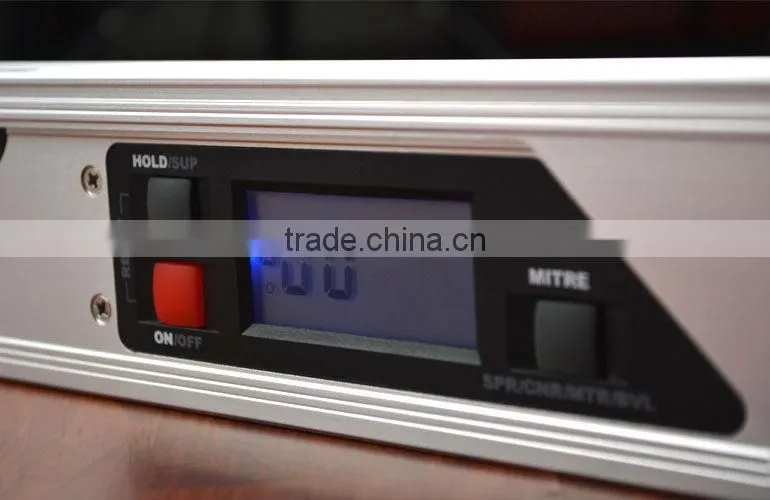

The digital protractor/angle finder is a one-of-a-kind product that measures angles accurately and quickly. It's ideal for checking and transferring angles for remodeling, cabinet installation, counter installation, measuring roof angles, fitting up windows or doors, aligning wood forms for concrete pouring, fitting up of carpeting and parquet or tile floors, aligning and checking of banisters and rails, checking for correct fit-up to any angled surface, and much more. It features a back-lit digital readout and has a hold function to freeze the measurements. Thumb-screw locks down the pivot when needed to prevent movement of the measured angle. Two spirit levels set at 90 degrees to each other for applications when you need a standard level.
Technical data:
Resolution: 0.05°/3´
Accuracy: 0.1°
Measuring range: 225 °
Working current: <3mA
Work temperature: -10°C ~ +50°C
Work humidity: 20%~85%RH
Length: 488mm
Power: 2x1.5V AAA battery
Battery life: >100 hours
Features:
- Easy to measure all kinds of angle and draw lines.
- Conversion between absolute measurement and relative measurement.
- Display always reads upright, no matter which way it is turned.
- Easy calibration and Zero setting.
- Analogue quadrant showing for easy reading.
- High accuracy level bubble for measuring horizontal level easily.
- Lock the moving blade at any angle.
Advantage
- it is the professional tool targeted for high-end market
- with high accuracy 0.1° for full range
- Low power consumption
- broad working temperature: -10°C ~ +50°C
- with patent for absolute capacitive sensing technology: type of absolute zero technology, no need to re-calibrate when the battery is removed

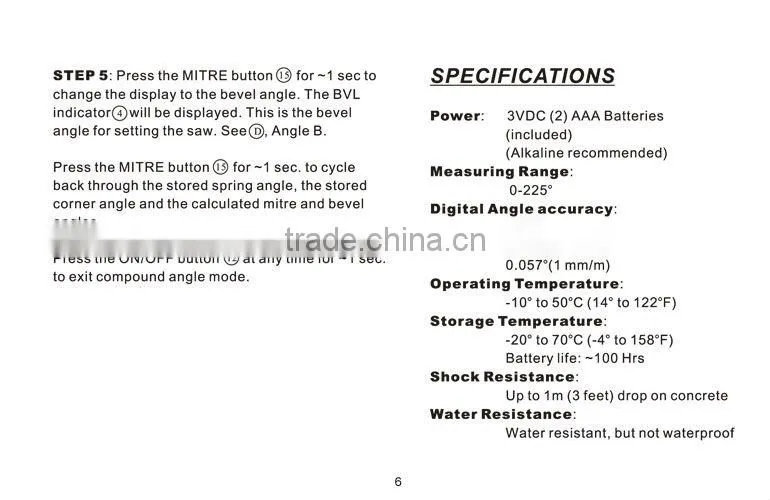

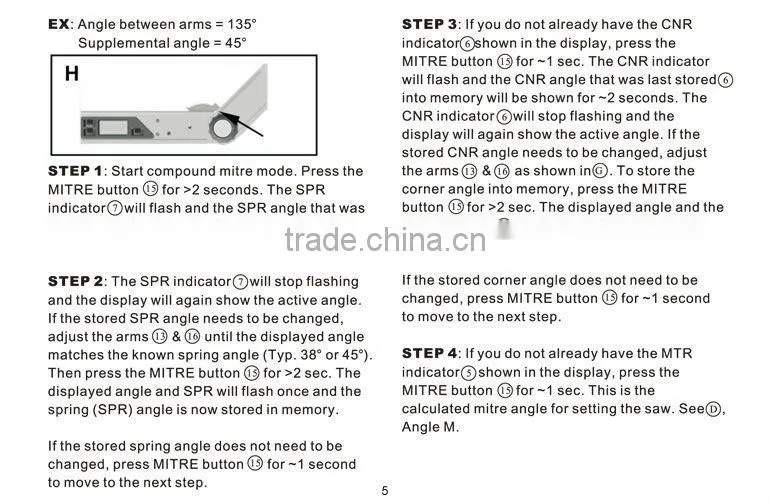

- directly change the measured angles to single or double cut angles of miter saw, much convenient for coordination with miter saws
Personal service
a.Customize product
1. Customize fixing body
2.Customize logo on fixing blade
3.Customize logo on label
b.Customize package
1. Customize inner instruction
2.Customize color box
Standard products

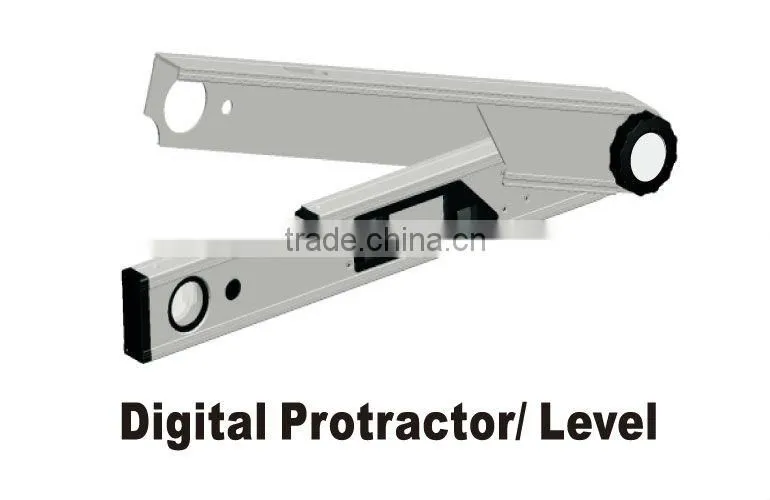

Order NO.83015-00 digital protractor level
unit size of product: 488mm*65mm*52mm
unit weight of product: Approx 863g
package: paper box
Accessory: 2x1.5V AAA battery ;
