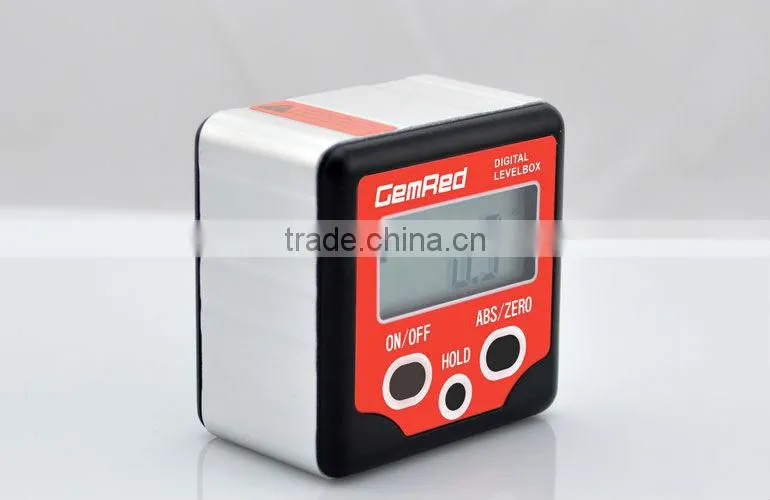

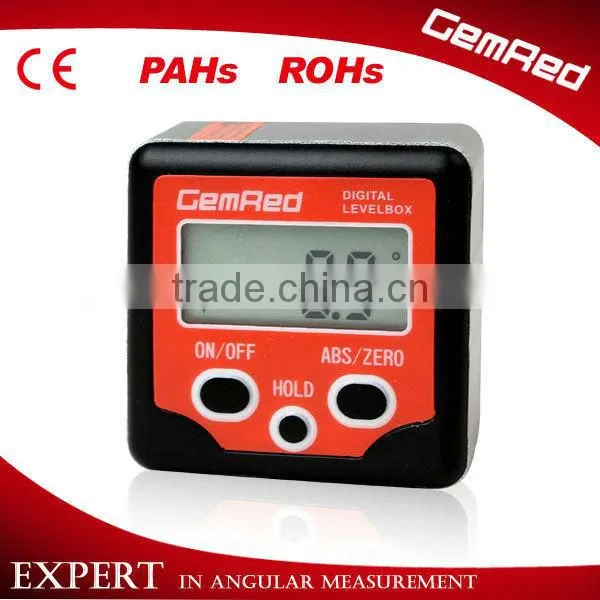

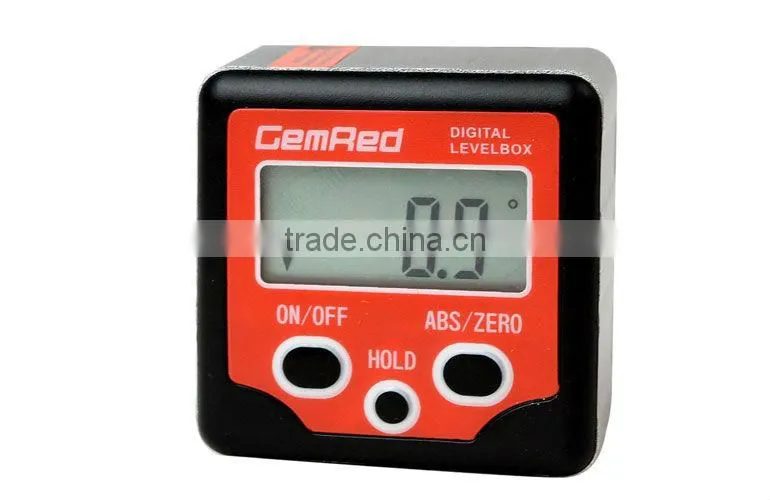

Mini Magnetic Digital Goniometer Box

About Product

mini magnetic digital goniometer box is an innovative tool that provides digital reading between ±180.00°. Extra LCD is convenient to read. Small and light, it is real easy to be carried and used. Measuring plane containing disk magnet can stick to the surface to be measured. It is especially easy to measure bevel angle of mitre saw, automobile test and repair,etc.

Technical data:

Resolution: 0.1°

Repeatability: ±0.1°

Measuring range: ±180.00°(0°~360°)

Waterproof: IP54

Power: 3V CR2032 Lithium battery

Working current:: <100μA

Dimension: 2” ×2” ×1.3”

Feature:

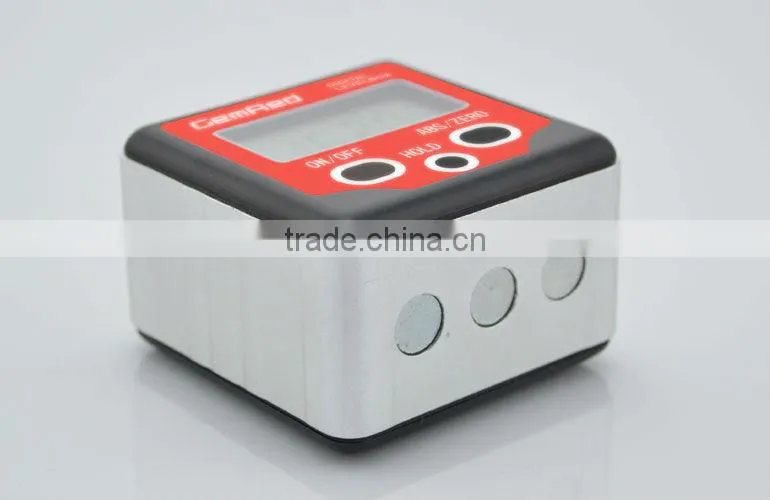

1.Measuring plane containing disk magnet can stick to the surface to be measured.

2.Works great for minter saws and table saws.

3.Sets the angle of jointer fences and band saw tables.

4.Machine cone bevel measuring and bevel measuring in processing

5.Telecommunication industry: Radar antenna angle calibration, elevation measuring for secondary planet antenna and television receiver;

6.Automobile:four-wheel location, pavement control and leveling for construction vehicles;

Pack inf.

package: colour box

Accessory: 3V cr2032 Lithium Battery; Instruction, leather pouch

Size of unit package: 70*45*95mm

unit weight with package: 176g

personal sevice

a.Customize product

1.customize membrane

2.customize logo

3.customize label

b.customize package

1.customize colour box

2.customize inner card

3.customize instruction sheet
