Electrical Construction Tools

Digital Angle Measuring Tool Series

construction tools

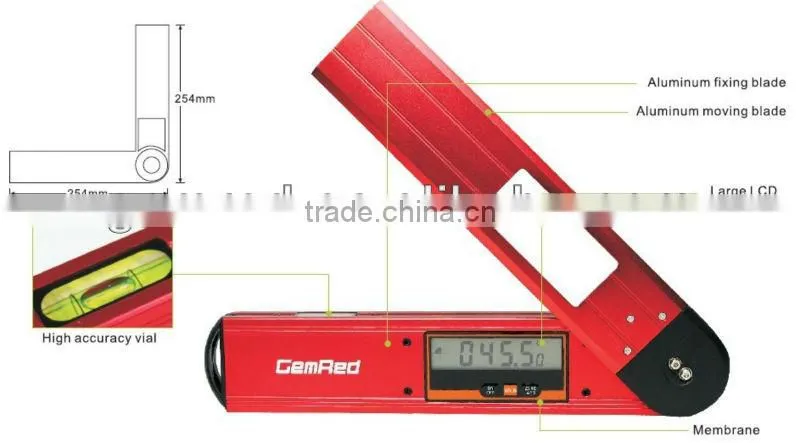

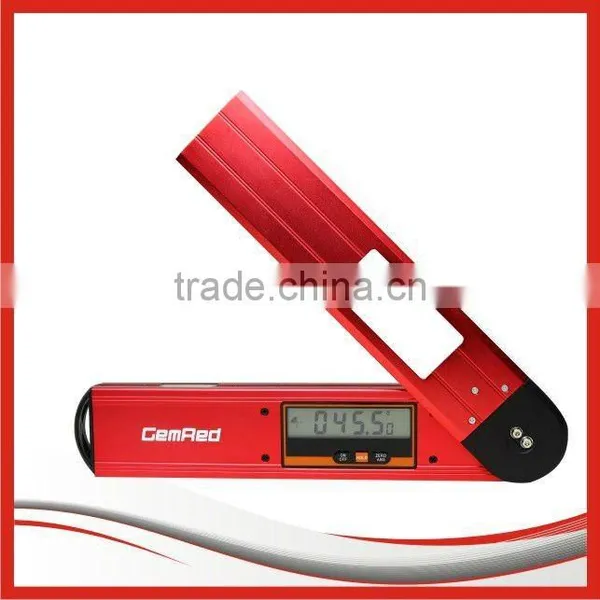

An innovative angle finder can measure all kinds of angle, drawing lines, and accessory of power tool. It is accurate and operate easily.

Technical data:

Resolution: 0.05°/3´

Accuracy: 0.1°

Measuring range: 360 °

Working current: <80μA

Work temperature: +5°C ~ +45°C

Work humidity: <85%RH

Length: 254mm(10")

Power: 3V CR2032 Lithium battery

Battery life: more than 2000 hours

Features:

1. Easy to measure all kinds of angle and draw lines.
2. Conversion between absolute measurement and relative measurement.
3. Display always reads upright, no matter which way it is turned.
4. Easy calibration and Zero setting.
5. Analogue quadrant showing for easy reading.
6. High accuracy level bubble for measuring horizontal level easily.
7. Lock the moving blade at any angle.

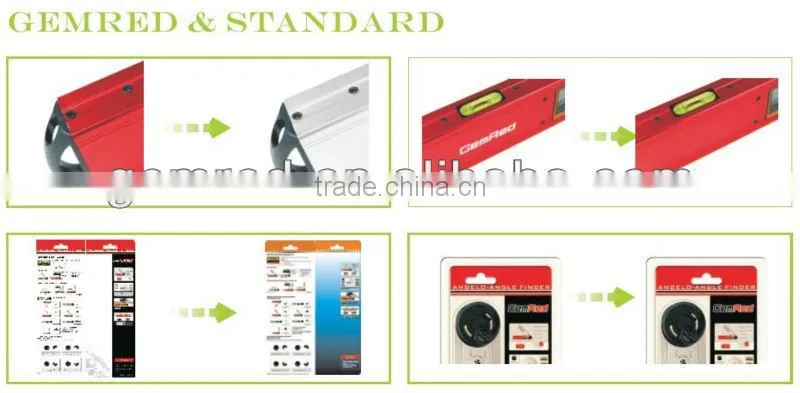

 Personal service

a.Customize product

1. Customize fixing body

 2.Customize logo on fixing blade

3.Customize logo on moving blade

b.Customize package

 1. Customize inner card

 2.Customize clamshell

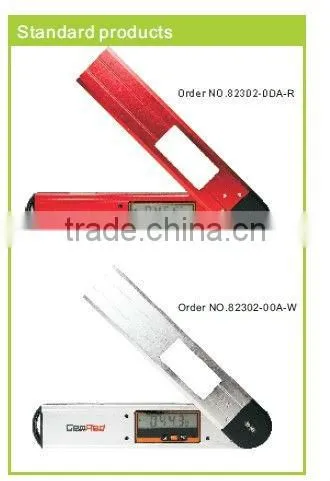

 Standard products

Order NO.82302-00A-R                             Order NO.82302-00A-W

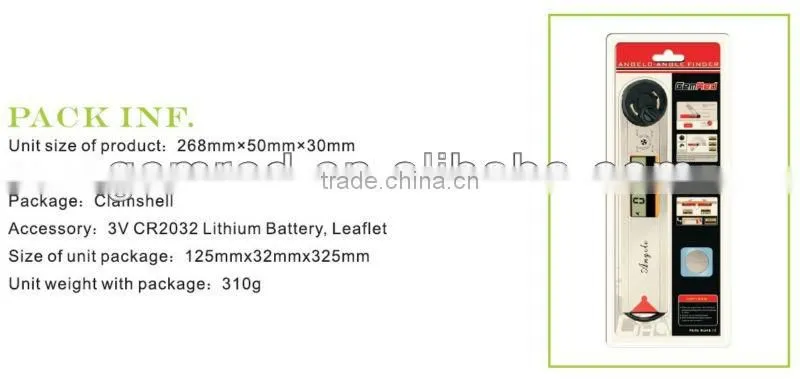

Pack inf.

unit size of product:254mm*50mm*36mm

unit weight of product:    g

package:clamshell

Accessory: 3V cr2032 Lithium Battery; Leaflet

unit size of unit package:33x13x5cm

unit weight of unite package:403g
