Home > Products > Wheel Loader > ZL30F Hydraulic 9.6 ton front end loader prices with 1.8m3 bucket

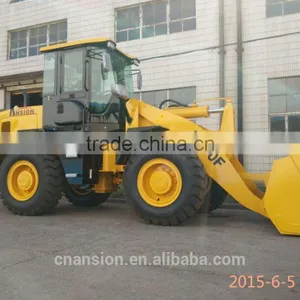

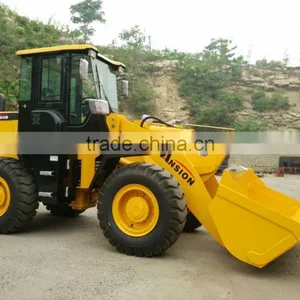

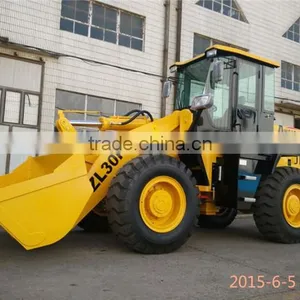

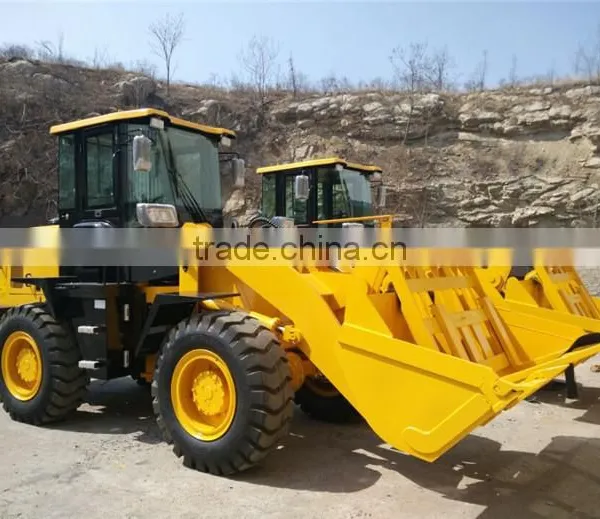

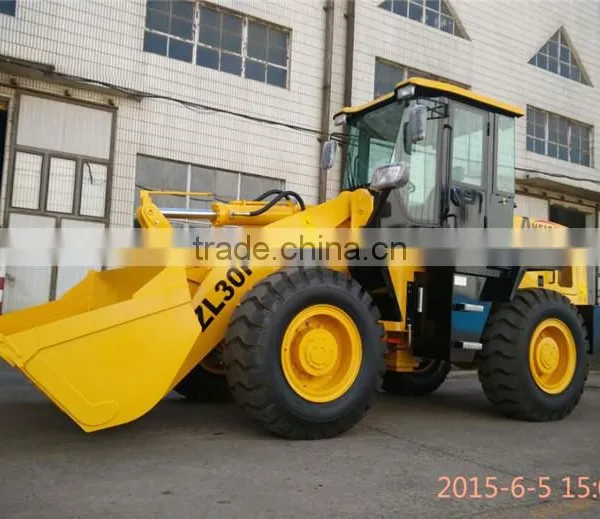

ZL30F Hydraulic 9.6 ton front end loader prices with 1.8m3 bucket
USD $19,500 - $19,900
/ Set
1 Set(Min.Order)
- 100 Set / Sets per Month
- Qingdao
- T/T L/C D/P D/A
You May Like
Product Details
Condition: | New | Brand Name: | ANSION | Model Number: | ZL30F |
Place of Origin: | Shandong, China | Type: | Front Loader | Moving Type: | Wheel Loader |
Dimension(Long * Breadth * High): | 6890 x 2510 x 3170 mm | Rated Load: | 3000 kg | Certification: | ISO9001 |
Warranty: | 24 months | After-sales Service Provided: | No overseas service provided |
Product Description

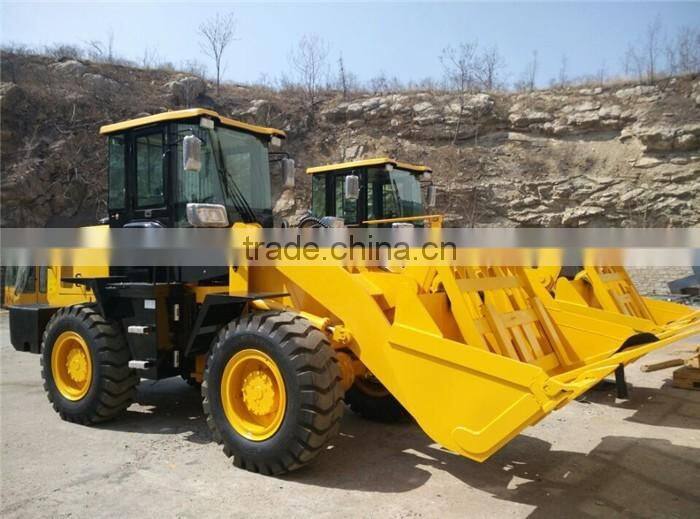

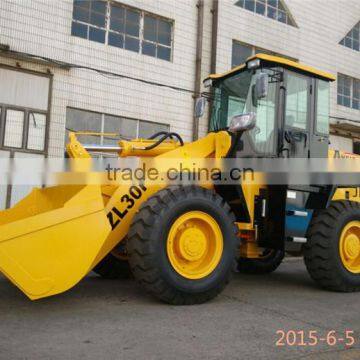

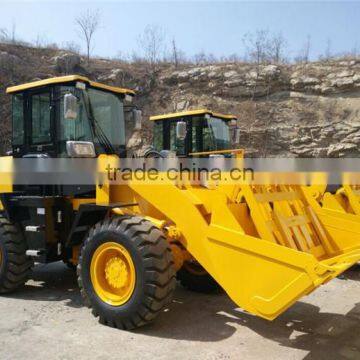

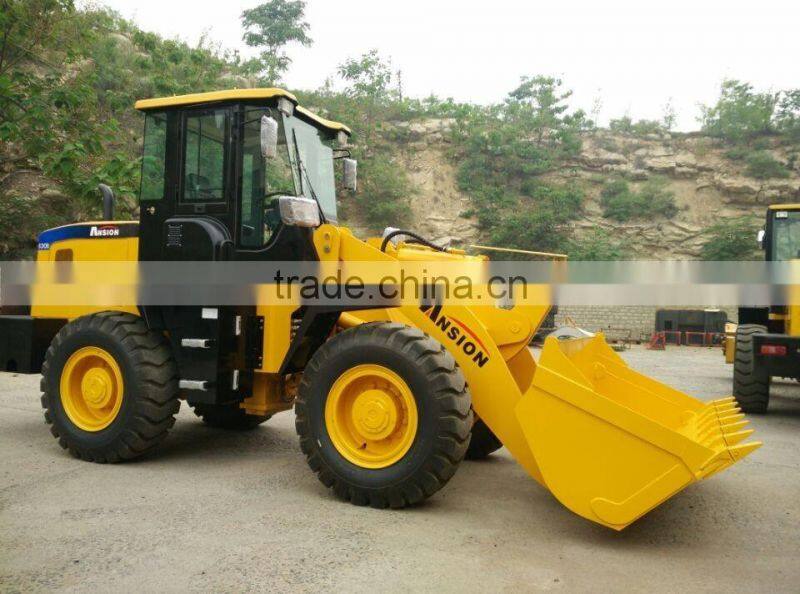

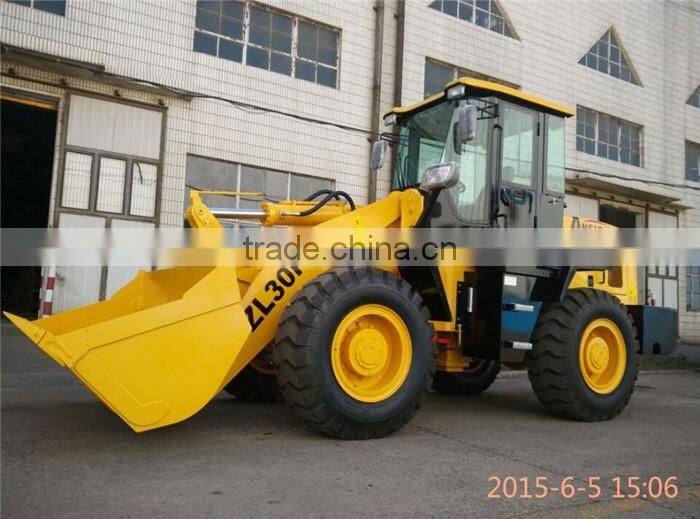

Hydraulic 3 ton wheel loader ZL30F

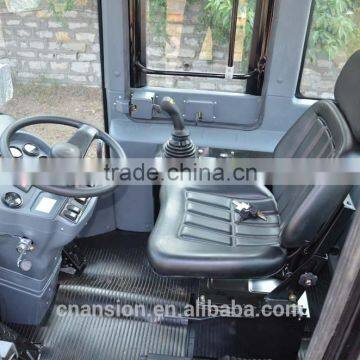

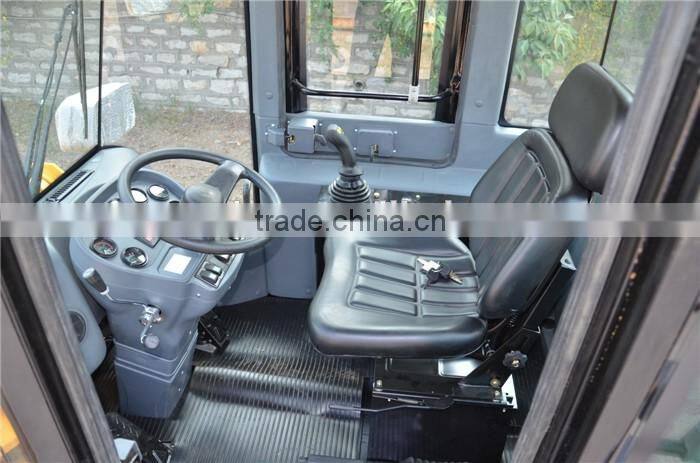

- Mechanical joystick operation
- WEICHAI DEUTZ / CUMMINS 125HP turbocharged diesel 6-cylinder engine
- 1.8 m3 standard bucket with teeth
- 9.6ton operating weight
- QINGZHOU BEILIAN power shift transmission (F4R2)
- HUAAN 4x4 axles with air-over-oil disc brake
- Pallet fork / Wood grapple / Grass grasper are optional
- Hydraulic articulated chassis
- 16.5MPa hydraulic working pressure with 92kN tractive force and 127kN breakout force
Main Specification
Model | ZL30F | |
---|---|---|
Working performance | Rated load | 3000 kg |
Bucket capacity | 1.8 m3 | |
Working device | Quick hitch, pallet fork, wood grapple, dozer blade, 4-in-1 multifunction bucket, road sweeper, snow blower , enlarged bucket, rock bucket | |
Dumping height | 3100 mm | |
Bucket auto leveling system | Yes | |
Breakout force | 127 kN | |
Total cycling time | 9.15 s | |
Overall performance | Overall dimension | 6890 x 2430 x 3070 mm |
Operating weight | 9600 kg | |
Operating type | Mechanical / Pilot control | |
Fuel tank | 156 L | |
Engine | Engine model | WEICHAI DEUTZ / YUCHAI / CUMMINS |
Type | Turbocharged, water cooled, 6 cylinders | |
Rated power | 92 kW (125HP) / 97 kW (130HP) | |
Steering system | Steering | Articulating hydraulic |
Turning radius | 5097 mm | |
Transmission | Gear box | Countershaft powershift / Planetary |
Gear shift | Forward 4 and reverse 2 | |
Axles | Dry type and 4x4 driving | |
Service Brake | Air over hydraulic caliper | |
Parking brake | manual | |
Tyre | 17.5-25 | |
Max.travel speed | 40 km/h | |
Tractive Force | 97 kN |

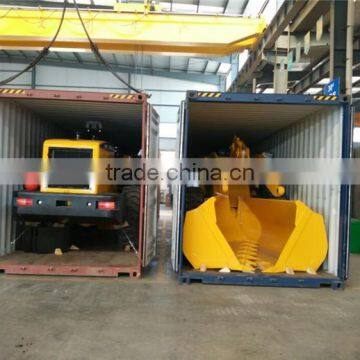

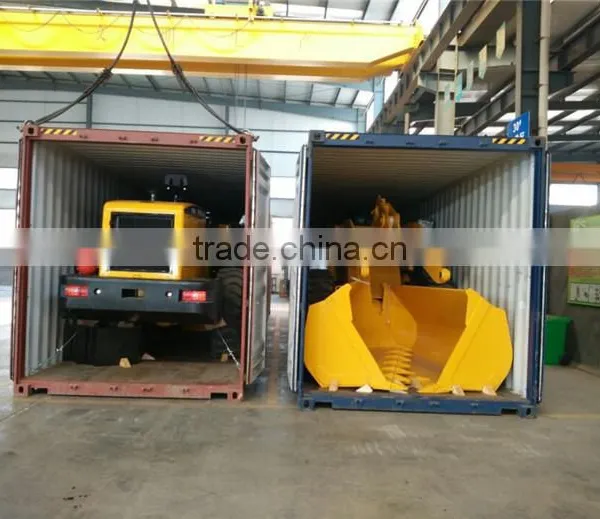

Packaging & Shipping
Factory
Our business includes wheel loaders, backhoe loaders, forklift trucks manufacturing and exporting.
We focus on construction and farm machinery manufacturing and exporting for more than 20 years and
sincerely hope to be your reliable supplier.
