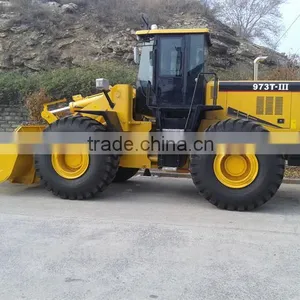

7 Ton Wheel Loader 973T With 240HP Engine and ZFWG200 Gearbox for UAE Market

Name: 7 Ton Wheel Loader 973T With 240HP Engine and ZFWG200 Gearbox for UAE Market
Brand: ANSION
SKU: 140141146
Availability: InStock

US$ 1 - 80,000 MOQ: 1 Set

Key Specifications

Condition:

New

Brand Name:

ANSION

Model Number:

973T

Qingzhou Ansion Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Brand Name ANSION

Model Number 973T

Place of Origin Shandong, China

Type Front Loader

Moving Type Wheel Loader

Dimension(Long * Breadth * High) 8250 x 3100 x 3400 mm

Rated Load 7000 kg

Certification ISO9001

Warranty 12 months

After-sales Service Provided No overseas service provided

7 ton wheel loader 973T with 240HP engine and ZFWG200 gearbox for UAE market

Rated load	7000KG
overall weight	205000KG
rated bucket capacity	4.2m3 rock bucket
maximum tractive force	158KN
maximum breakout force	204KN
overall dimension (L×W×H)	8250×3100×3400mm
maximum grade ability	30o
maximum dump height	3450mm
maximum dump reach	1255mm
minimum turning radius	6500mm
Engine model	CUMMINS 6CTAA8.3-C230
Engine type	Inline,water cooling,dry cylinder, direct injection,4-stroke,turbocharged
No. of cylinder-bore/stroke	6-126×130mm
rated power	164kw--1950r/min
maximum torque	1100N.m
Emission standard	Euro II
torque converter	ZF 4WG200
gearbox mode	ZF4WG200 electric control
gear shift	4 forward shift and 3 reverse shift
maximum speed	38km/h
main reducing spiral	bevel gear grade 1reduction
decelerating mode	planetary reduction,grade 1
wheel base	3350mm
wheel tread	2250mm
minimum ground clearance	450mm
system working pressure	18MPa (Permco pump)
boom lifting time	6.15+0.25s
total time	10.65+0.5s
fuel tank capacity	300L
function of leveling automatically	yes
service brake	air over hydraulic disc brake on 4 wheels
parking brake	manual parking brake
type specification	26.5-25
Cab	Grammer seat,air conditioner,VDO instrument
