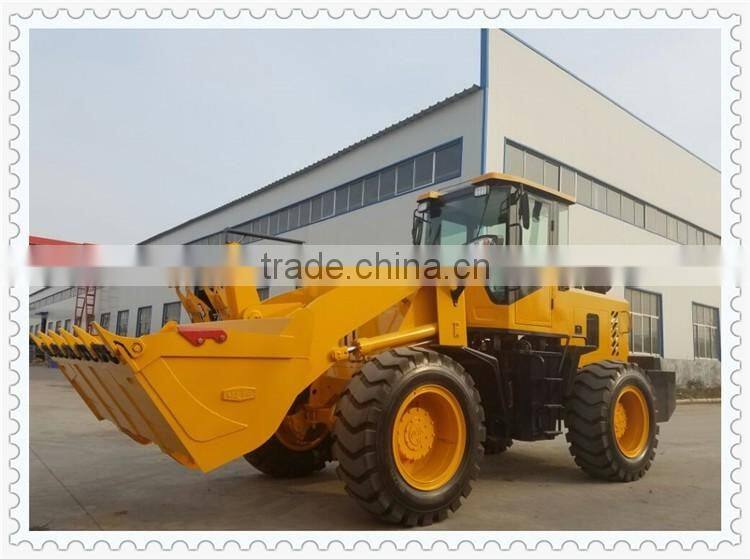

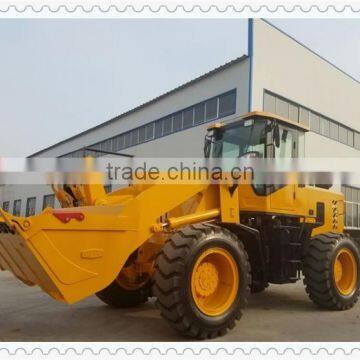

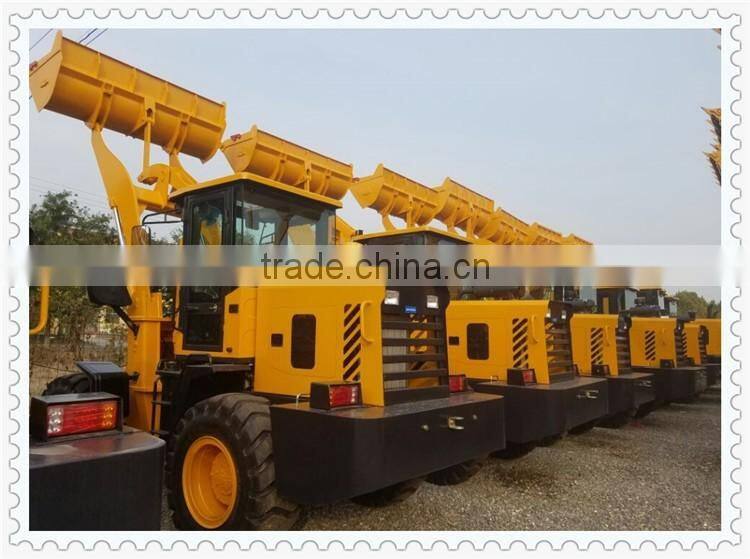

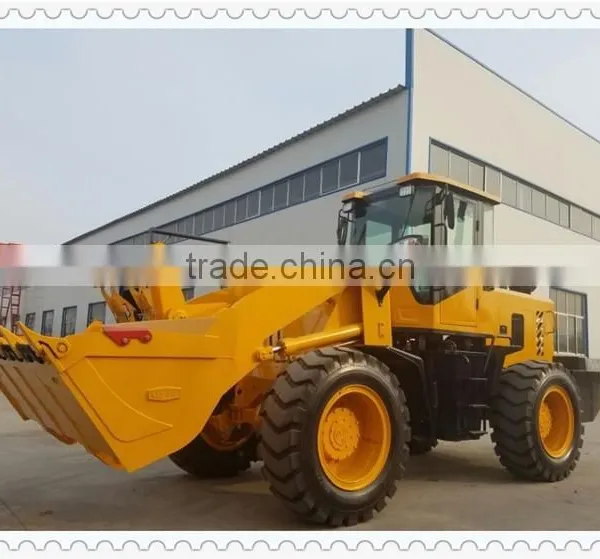

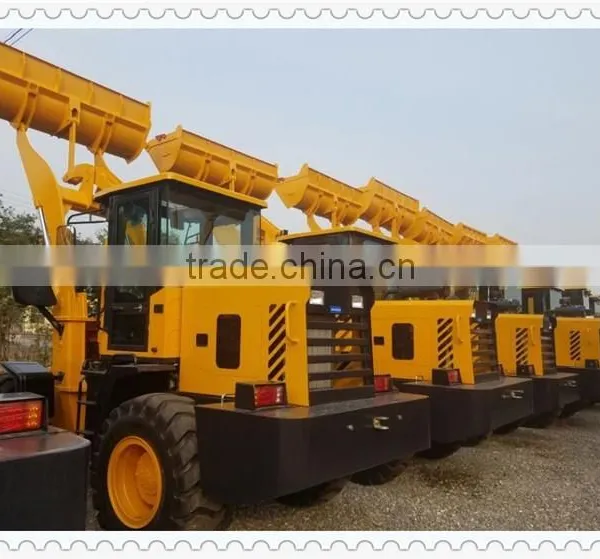

AS930 Wheel Loader

Performance

1

rated loading

3000kg

2

overall weight

6400kg

3

rated bucket capacity

1.5

4

maximum tractive force

64KN

5

maximum breakout force

65KN

6

maximum grade ability

30℃

7

maximum dump height

3100mm

8

maximum dump reach

1006mm

9

overall dimension (L×W×H)

6000×2430×3070mm

10

minimum turning radius

5097mm

Engine

11

model

Deutz  WP6G125E22

12

type

lnline water cooled, four stroke

13

No. of cylinder-bore/stroke

6—108×125mm

14

rated power

92kw

15

maximum torque

500N.m

16

min fuel-consume ratio

≤210g/kw.h

Transmission system

17

torque converter

YJ315—x

18

gearbox mode

 Power shift normally engaged straight gear

19

gear shift

4forward shift  2 reverse shift

20

maximum speed

40km/h

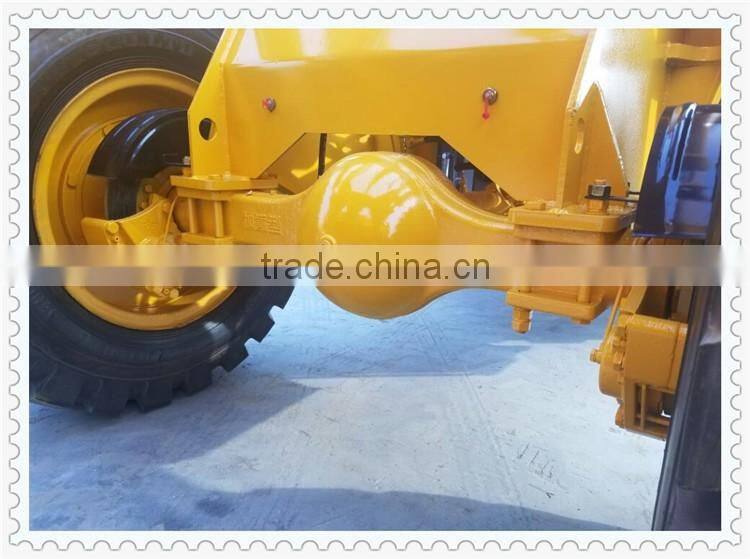

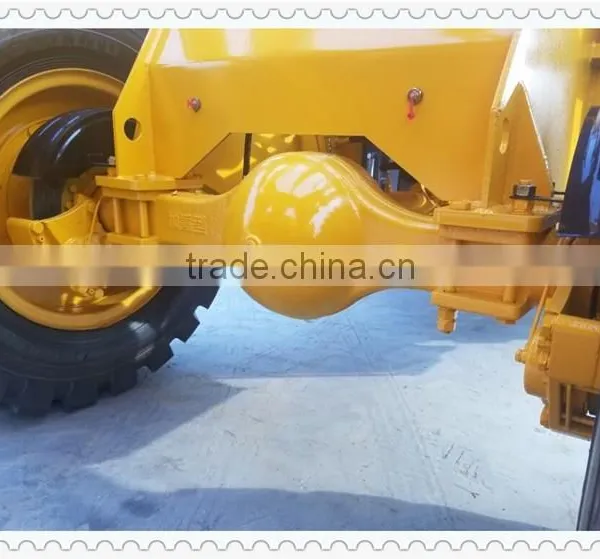

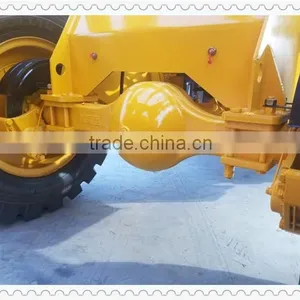

Drive axles

21

main reducing mode

Bevel gear grade lreduction

22

decelerating mode

Bevel gear grade lreduction

23

wheel base (mm)

2660mm

24

wheel tread

1800mm

25

ground clearance

400mm

Hydraulic system

26

system working pressure

16.5MPa

27

boom lifting time

4.83s

28

total time

9.15s±0.5s

29

fuel tank capacity

156L

30

function of leveling automatically

yes

Brake system

31

service brake

air assist disc brake on 4 wheels

32

parking brake

Manual disk brake

Tyre

33

type specification

17.5-25

34

front tyre pressure

0.4Mpa

35

rear tyre pressure

0.35Mpa
