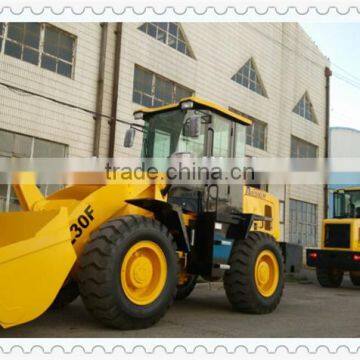

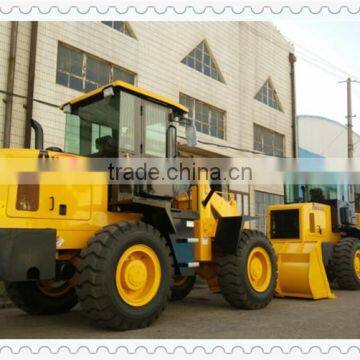

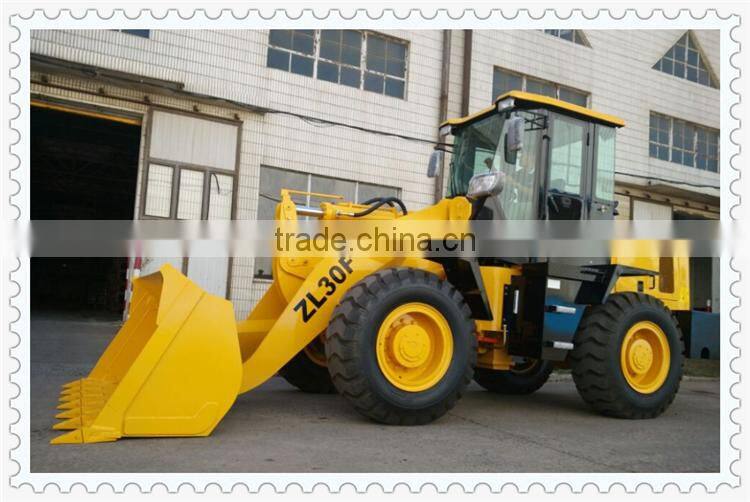

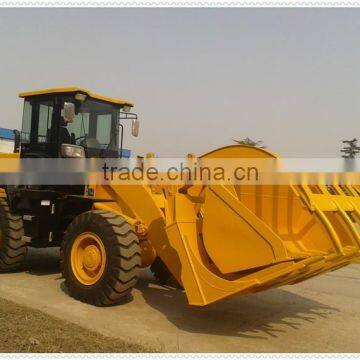

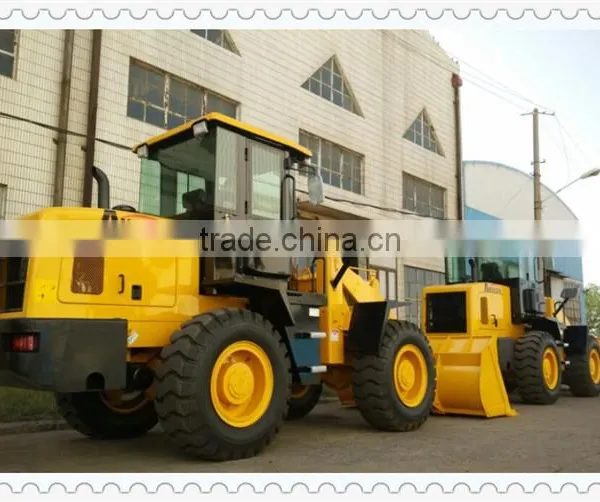

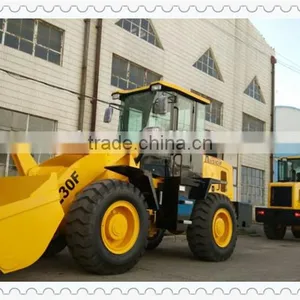

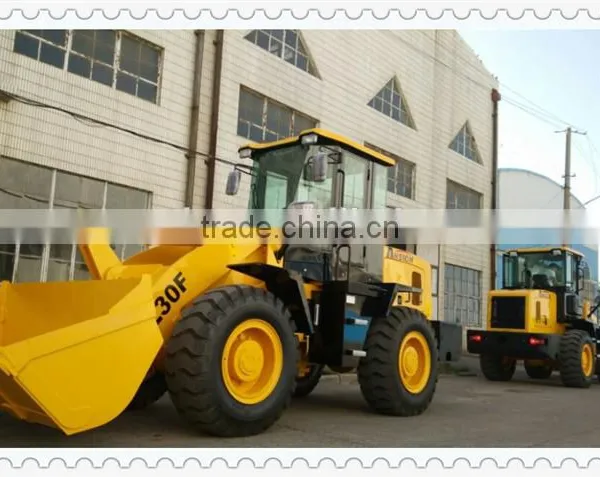

ANSION ZF30F 9.6 ton cargador frontal with 1.7 m3 bucket and 97kW CUMMINS engine
Performance | 1 | rated loading | 3000kg |
2 | overall weight | 9600kg | |
3 | rated bucket capacity | 1.8 | |
4 | maximum tractive force | 97KN | |
5 | maximum breakout force | 127KN | |
6 | maximum grade ability | 30℃ | |
7 | maximum dump height | 3100mm | |
8 | maximum dump reach | 1006mm | |
9 | overall dimension (L×W×H) | 6890×2430×3070mm | |
10 | minimum turning radius | 5097mm | |
Engine | 11 | model | CUMMINS |
12 | type | lnline water cooled, four stroke | |
13 | No. of cylinder-bore/stroke | 6—108×125mm | |
14 | rated power | 92kw | |
15 | maximum torque | 500N.m | |
16 | min fuel-consume ratio | ≤210g/kw.h | |
Transmission system | 17 | torque converter | YJ315—x |
18 | gearbox mode | Power shift normally engaged straight gear | |
19 | gear shift | 4forward shift 2 reverse shift | |
20 | maximum speed | 40km/h | |
Drive axles | 21 | main reducing mode | Bevel gear grade lreduction |
22 | decelerating mode | Bevel gear grade lreduction | |
23 | wheel base (mm) | 2660mm | |
24 | wheel tread | 1800mm | |
25 | ground clearance | 400mm | |
Hydraulic system | 26 | system working pressure | 16.5MPa |
27 | boom lifting time | 4.83s | |
28 | total time | 9.15s±0.5s | |
29 | fuel tank capacity | 156L | |
30 | function of leveling automatically | yes | |
Brake system | 31 | service brake | air assist disc brake on 4 wheels |
32 | parking brake | Manual disk brake | |
Tyre | 33 | type specification | 17.5-25 |
34 | front tyre pressure | 0.4Mpa | |
35 | rear tyre pressure | 0.35Mpa |
Top Wheel Loader Manufacturer with 3300 m3 working plant
Our business includes wheel loaders, backhoe loaders, forklift trucks and farm tractors manufacturing and exporting.
We focus on construction and farm machinery manufacturing and exporting for more than 20 years and
sincerely hope to be your reliable supplier.
1.Why choose us ?
As a wheel loader supplier with more than 20 years, we provide professional technical support and excellent after-sale service and parts supplying.
2.How can I get the parts if ANSION wheel loaders break down?
Within warranty ( 1 year or 2000 hours), we would provide the parts for free and you just need to pay for the freight.
Over the warranty, we would still provide the parts, but you need to pay the parts and the freight.
All in all, you don't need to worry about the parts supplying.
As we are an reliable supplier and can supply you with the parts in time.
