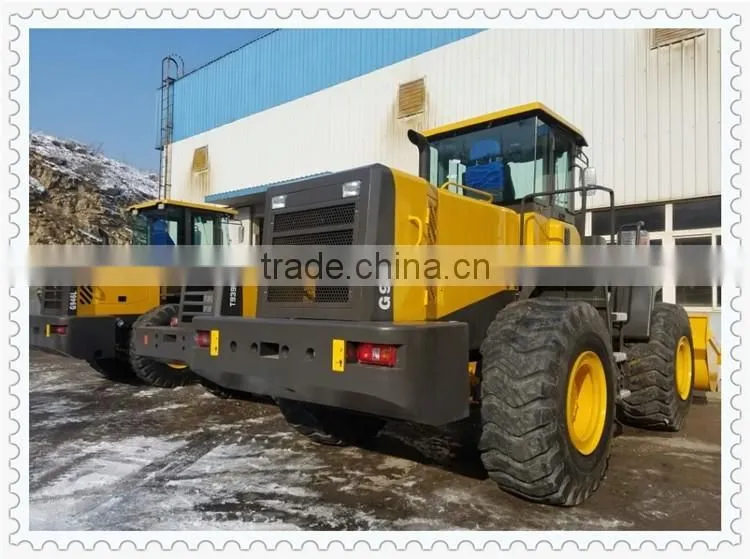

Help CenterAS956 Original Factory Wheel Loader With 162kW 3306 Engine and Pilot Control
Related Products
-
5 Ton Solid Waste Equipment Garbage Loader With 3.5m3 Bucket and 220HP Diesel EngineUS$ 39,000 - 49,000MOQ: 1 Set -
5 Ton Wheel Loader With Cheap Price Better Than LW500FNUS$ 39,000 - 49,000MOQ: 1 Set
-
AS936 High-quality 4-wheel-driving Compact 3 Ton China Used Wheel LoaderUS$ 14,000 - 24,000MOQ: 1 Set
-
AS936 High-quality 4-wheel-driving Compact 3 Ton China Wheel Loader 97KWUS$ 14,000 - 24,000MOQ: 1 Set
-
AS916 Wheel Loader With 0.8 m3 Bucket and XINCHAI 45kw Diesel EngineUS$ 8,000 - 10,000MOQ: 1 Set

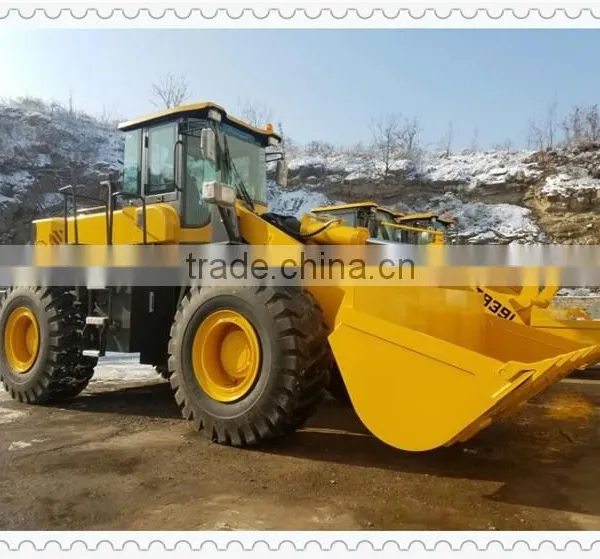

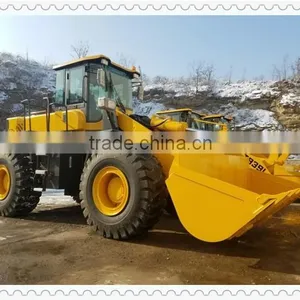

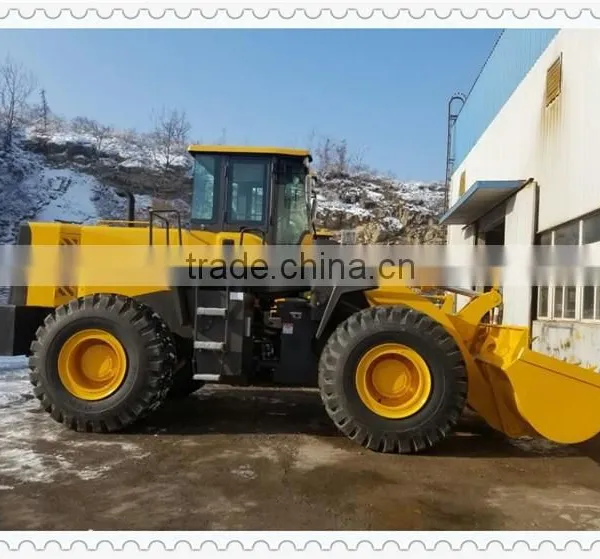

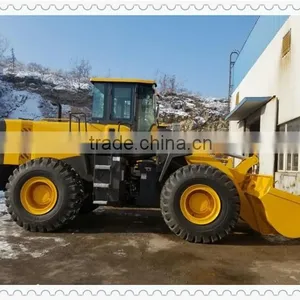

ORIGINAL ANSION WHEEL LOADER AS956
As authorized dealer, we offer full line of ORIGINAL ANSION machinery and parts, including Wheel loader, Backhoe loader,Motor grader, truck crane, excavator, bulldozer etc.
Product feature: ANSION 5ton wheel loader AS956
1. Fully hydraulic poered steering with flow-amplified system, pilot operated control for loader hydraulic system, power shift and electric shift optional transmission makes convenient and flexible operating.
2. ANSION new z-bar linkage, high breakout force, short hydraulic cycle time, automatic leveling on any position, and higher prductivity.
3. Special quadrat type transmission shaft of construction machinery ANSION 5ton AS956 Wheel Loader . Power transmission is more reliable.

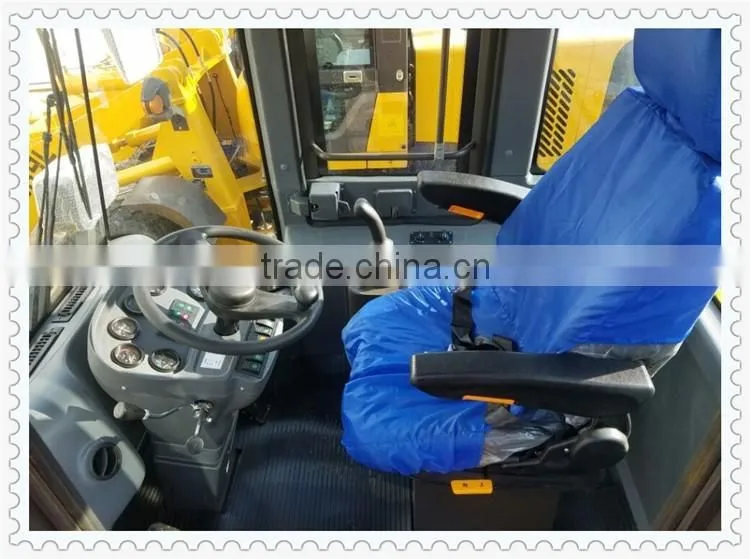

4. Integral new luxury cab, excellent visibility, safty and reliability.
5. eg-TM combination is supported on three points by dual directions, vibration-isolators. Reducing resonance and fatigue failure of structure.
6. Optimized structure of diesel engine air intake system reduces dust into air filter, prolonging the durability of the engine and conveniencing the service of air filter element. Optimized cooling system drops overall heat balance temperature.
7. Integral openable hood made of compound material reduces noise and vibration, and makes operation and service more convenient and flexible.
8. Equipped with Shangchai engine, which is of electric starting, electric stopping and excellent performance and reliability.
Standard Technical Specification
| Item | Parameter | Unit | |
| Rated load | 5 | t | |
| Bucket capacity | 3 | m³ | |
| Dumping height | 3100 | mm | |
| Dumping distance | 1274 | mm | |
| Max.drawing force | 158 | kN | |
| Max. traction | 156 | kN | |
| Dimension | 8010×3100×3470 | mm | |
| Operating weight | 16.5 | t | |
| Boom lifting time | ≤5.6 | s | |
| Total time of three devices | ≤9.9 | s | |
| Wheelbase | 2900 | mm | |
| Min. turning radius (bucket outer) | 6920 | mm | |
| Rated power | ±35° | ||
| Travel speed | I Gear (Forward/Backward) | 0~11.5/16.5 | km/h |
| II Gear (Forward) | 0~38 | km/h | |
| Long boom parameter | |||
| Coal bucket | |||
| Bucket capacity | 3.5 | m³ | |
| Rated load | 4.5 | t | |
| Dumping height | 3340 | mm | |
| Dumping distance | 1380 | mm | |
| Dimension | 8530×3016×3350 | mm | |
| Min. turning radius (bucket outer) | 7080 | mm | |
| Operating weight | 16.6 | t | |
