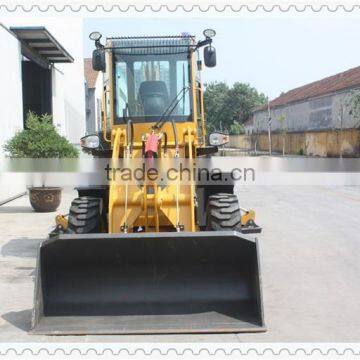

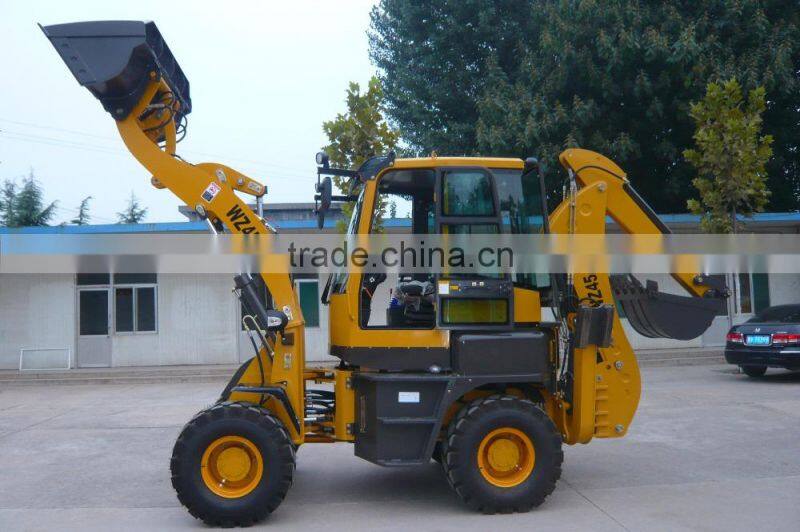

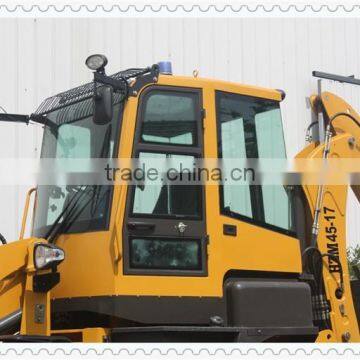

AS570 Backhoe Loader
Negotiable
/ Set
1 Set(Min. Order)
- Qingdao
- T/T L/C D/P D/A Credit Card
You May Like
Product Details
| Condition | New | Brand Name | ANSION | |
| Model Number | AS570 | Place of Origin | Shandong, China | |
| Type | Backhoe Loader | Moving Type | Wheel Loader | |
| Dimension(Long * Breadth * High) | 6000*1900*2900 mm | Rated Load | 1600 kg | |
| Certification | ISO9001 | Warranty | 12 months | |
| After-sales Service Provided | No overseas service provided |
Product Description
Item | Unit | Parameter | |
L×W×H | mm | 6000×1900×2900 | |
Overall Weight | kg | 5700 | |
Backhoe Parameter | Rated Backhoe Bucket Capacity | m3 | 0.2 |
Max. Digging Depth | mm | 3400 | |
Max. Digging Height | mm | 5000 | |
Max. Digging Radius | mm | 4600 | |
Turning Angle of Movable Arm | ° | 180 | |
Loading Parameter | Rise Height | mm | 3700 |
Discharge Height | mm | 2700 | |
Min. Turning Radius | mm | 4800 | |
Discharge Distance | mm | 1000 | |
Rated Loading Weight | kg | 1600 | |
Rise Time of Movable Arm | s | 3.5 | |
Fall Time of Movable Arm | s | 2.5 | |
Comprehensive Time | s | 7 | |
Engine Model | CUMMINS 4BTA3.9-C80 | ||
Rated Power of Engine | KW | 60 | |
Engine Flux | ml/r | 40 | |
Work Pressure | Mpa | 16~18 | |
Max. Grade Ability | % | 25 | |
Walking Speed | km/h | 18~28 | |
Min. Ground Clearance | mm | 260 | |
Wheel Base | mm | 2000 | |
Tread | mm | 1530 | |
Tire model | mm | 20.5-16 | |
