Backhoe Loader

Name: Backhoe Loader
Brand: ANSION
SKU: 140140566
Availability: InStock

Qingzhou Ansion Machinery Co., Ltd.

US$ 33,000 - 38,000 MOQ: 1 Set

Key Specifications

Condition:

New

Brand Name:

ANSION

Model Number:

WZ30-25

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao Port China

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Brand Name ANSION

Model Number WZ30-25

Place of Origin Shandong, China

Type Backhoe Loader

Moving Type Wheel Loader

Dimension(Long * Breadth * High) 5920x2250x3770 mm

Rated Load 2500 kg

Certification ISO9001

Warranty 12 months

After-sales Service Provided No overseas service provided

Hydraulic 4x4 backhoe loader SAM388

1. Front 1.0m3 general purpose bucket for 2.5 tons rated load capacity

2. Rear 0.3m3 general purpose bucket for 4082 mm digging depth

3. DEUTZ diesel engine

4. CARRARO transmission (Italy origin) with electric control joystick and 4x4 driving type

5. 8.2 ton operating weight

6. Cab with air conditioner

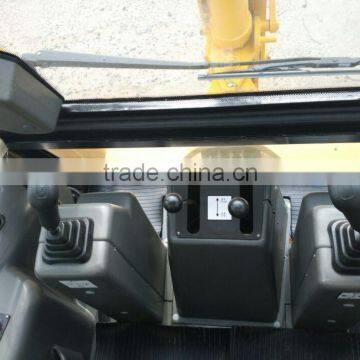

Real Picutres Show

Technical Data

Standard Technical Specification

Model		SAM388
Front Loader	Rated load	2500 kg
	Bucket capacity	1.0 m3
	Working device	Quick hitch, pallet fork, wood grapple, dozer blade, 4-in-1 multifunction bucket, road sweeper, snow blower
	Dumping height	2740 mm
	Bucket auto leveling system	Yes
	Breakout force	38 kN
	Total cycling time	11.9 s
Rear Backhoe	Bucket capcity	0.3 m3
	Working device	Quick hitch, hydraulic breaking hammer, auger driller, special bucket
	Bucket digging force	46.5 kN
	Rod digging force	31 kN
	Max. digging depth	4082 mm
Overall performance	Overall dimension	5920 x 2250 x 3770 mm
	Operating weight	8200 kg
	Operating type	Pilot control
Engine	Engine model	CUMMINS
	Type	Turbocharged, water cooled, 4 cylinders
	Rated power	74kW
Steering system	Steering	Articulating hydraulic
Steering system	Turning radius	5516 mm
Transmission	Gear box	CARRARO electric cotnrol transmission
	Gear shift	Forward 4 and reverse 3
	Axles	CARRARO 4x4 driving axles
	Service Brake	Air over hydraulic caliper
	Parking brake	manual
	Tyre	Front 14-17.5 and rear 19.5L-24
	Max.travel speed	28 km/h
	Tractive Force	39 kN

Options
