AS500 4WD 50HP Articulated Backhoe Loader With Joystick Pilot Control

AS500 4WD 50HP Articulated Backhoe Loader With Joystick Pilot Control photo-1
AS500 4WD 50HP Articulated Backhoe Loader With Joystick Pilot Control photo-2
AS500 4WD 50HP Articulated Backhoe Loader With Joystick Pilot Control photo-3

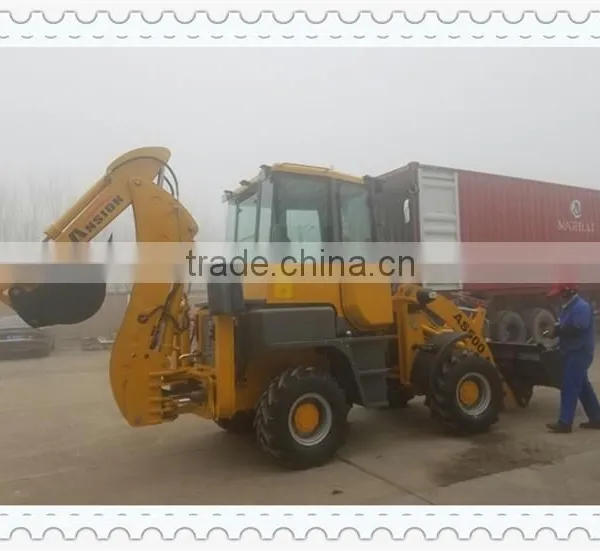

AS500 4WD 50HP Articulated Backhoe Loader With Joystick Pilot Control photo-4
AS500 4WD 50HP Articulated Backhoe Loader With Joystick Pilot Control photo-5
AS500 4WD 50HP Articulated Backhoe Loader With Joystick Pilot Control photo-6
US$ 13,500 - 15,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Brand Name:
ANSION
Model Number:
AS500
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Port China
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Brand Name ANSION
Model Number AS500
Place of Origin Shandong, China
Type Backhoe Loader
Moving Type Wheel Loader
Dimension(Long * Breadth * High) 5100*1980*2900 mm
Rated Load 1600 kg
Certification ISO9001
Warranty 12 months
After-sales Service Provided Engineers available to service machinery overseas

 ANSION 4WD 5TON Backhoe Loader AS500 (Single joystick pilot control)

AS500 4WD 50HP articulated backhoe loader with joystick pilot control







Main Specification



Total Length

mm

5100

Total Height

mm

2900

Total Width

mm

1960

Total Operating Weight

kg

5400

Backhoe Parameter









Rated Backhoe Bucket Capacity

m3

0.2

Max. Digging Depth

mm

3400

Max. Digging Height

mm

5000

Max. Digging Radius

mm

4600

Turning Angle of Movable Arm

°

180

Loading Parameter

















Rise Height

mm

3700

Discharge Height

mm

2700

Min. Turning Radius

mm

4800

Discharge Distance

mm

1000

Rated bucket capacity

M3

0.8

Rated Loading Weight

kg

1600

Rise Time of Movable Arm

s

3.5

Fall Time of Movable Arm

s

2.5

Comprehensive Time

s

7

Engine Model

Xinchai

Rated Power of Engine

KW

36.8

Work Pressure

Mpa

16~18

Max. Grade Ability

%

25

Walking Speed

km/h

18~28

Min. Ground Clearance

mm

260

Wheel Base

mm

2000

Tread

mm

1530

Tire model

mm

20.5-16



Real Picutres Show

 AS500 4WD 50HP articulated backhoe loader with joystick pilot controlAS500 4WD 50HP articulated backhoe loader with joystick pilot control
