45# Carbon Steel Parallel Thread Mechanical Rebar Coupler
45# Carbon Steel Parallel Thread Mechanical Rebar Coupler is a parallel thread mechanical splicing system designed for the connection of concrete reinforcing bars from Φ16~Φ50.
*Designed and manufactured in compliance with ACI318, JGJ107, UBC 1997, BS8110, NF35-20-1, DIN1045, ISO 15835.
*Full-Tension splice, bar break under tensile tests.
*Easy operation, installation and maintainance.
*Full traceability of material origin and production batch.
2. Product Type
2.1 SYS A: Parallel Thread Rebar Splicing with Cold Upsetting End
(1) Cutting
(2) Cold upsetting
(3) Threading
Bar Dia.(mm) |
OD (mm) |
Length(mm) |
Weight (kg) |
16 |
26 |
32 |
0.09 |
18 |
30 |
36 |
0.11 |
20 |
33 |
40 |
0.15 |
22 |
35 |
44 |
0.18 |
25 |
40 |
50 |
0.27 |
28 |
46 |
56 |
0.42 |
32 |
50 |
64 |
0.53 |
36 |
58 |
72 |
0.90 |
40 |
64 |
80 |
1.08 |
2.2 SYS B: Parallel Thread Rebar splicing with Rolled Thread End
(1) Cutting
(2) Stripping the rib and rolling thread
Bar Dia.(mm) |
OD (mm) |
Length(mm) |
Weight (kg) |
16 |
24 |
38 |
0.07 |
18 |
27 |
41 |
0.13 |
20 |
29.5 |
45 |
0.15 |
22 |
32.5 |
49 |
0.19 |
25 |
37 |
56 |
0.30 |
28 |
41 |
62 |
0.43 |
32 |
47 |
70 |
0.58 |
36 |
53 |
78 |
0.93 |
40 |
58.5 |
86 |
1.25 |
50 |
73 |
106 |
2.37 |

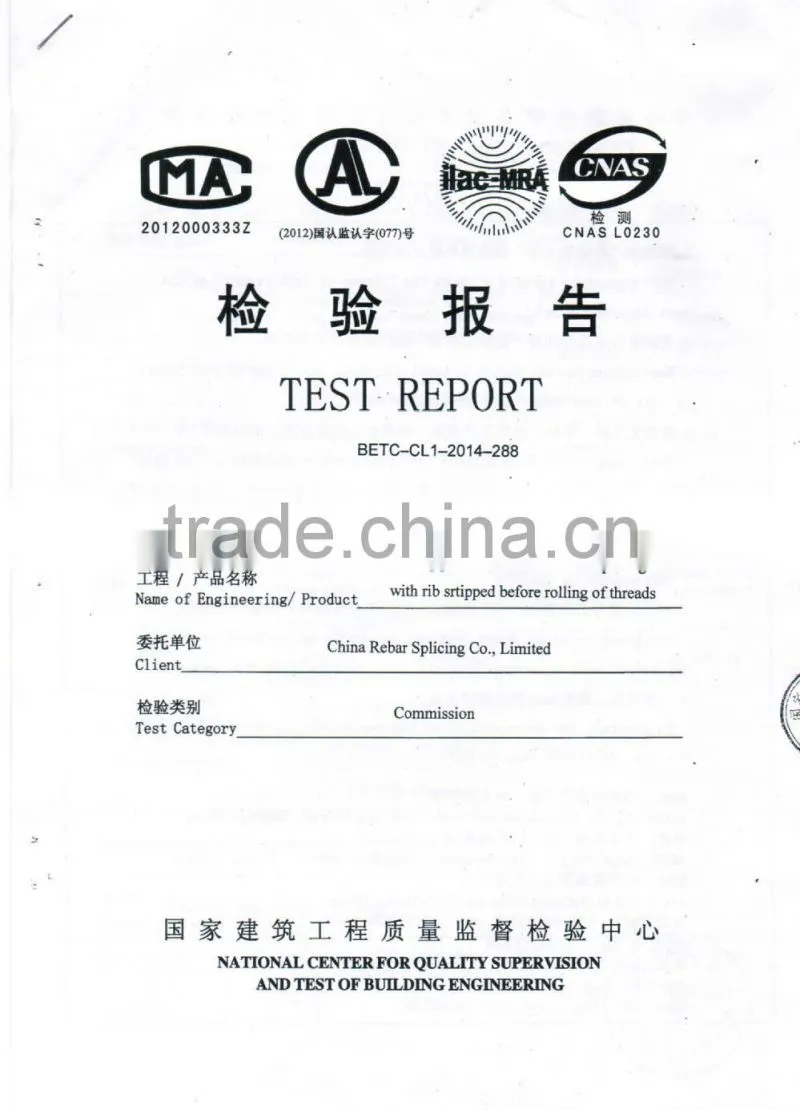

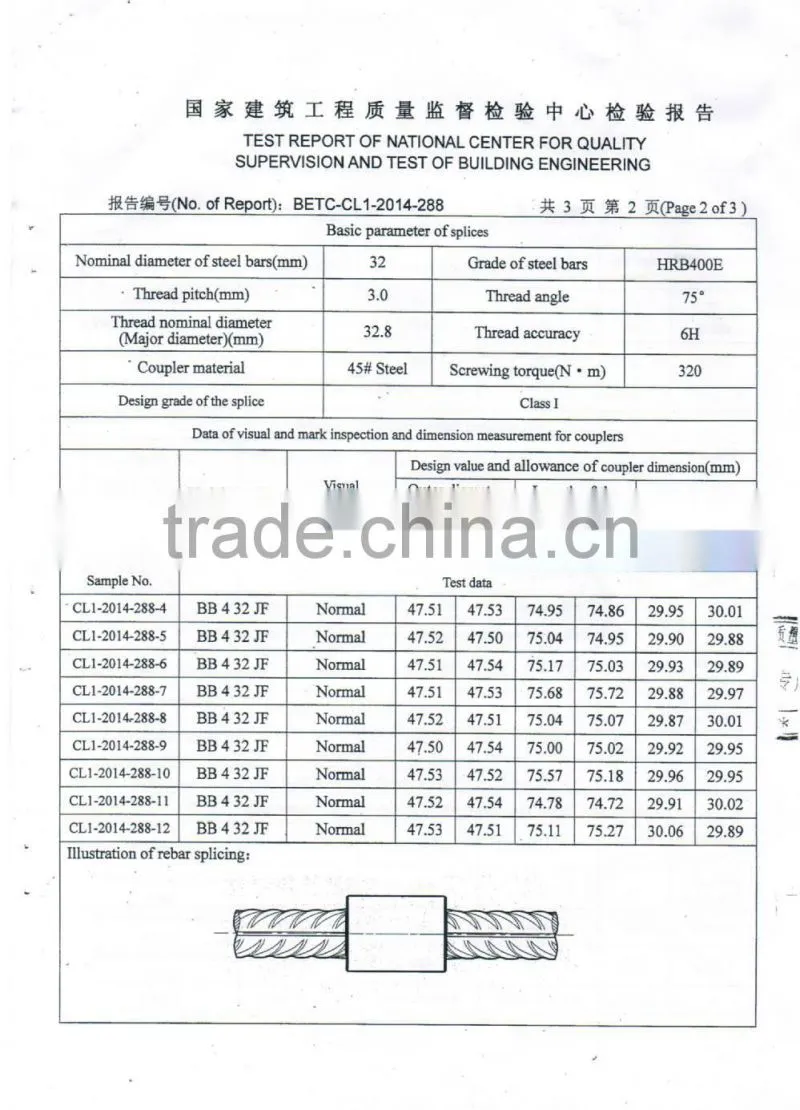

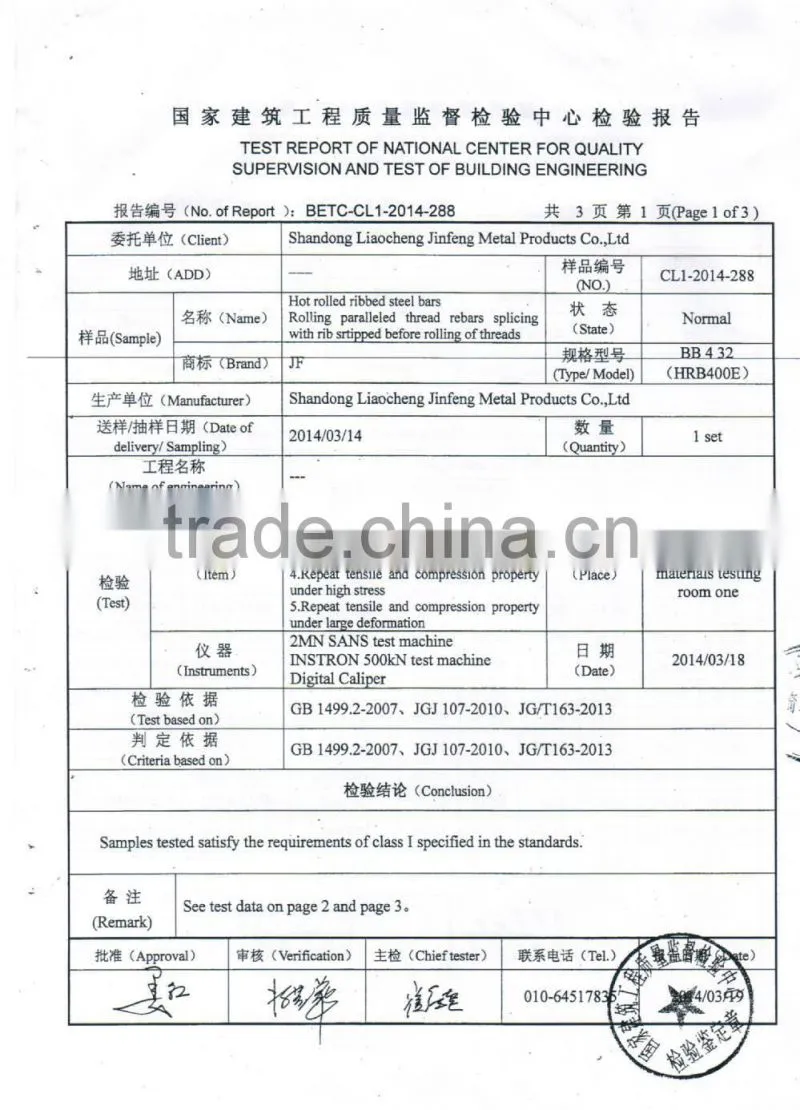

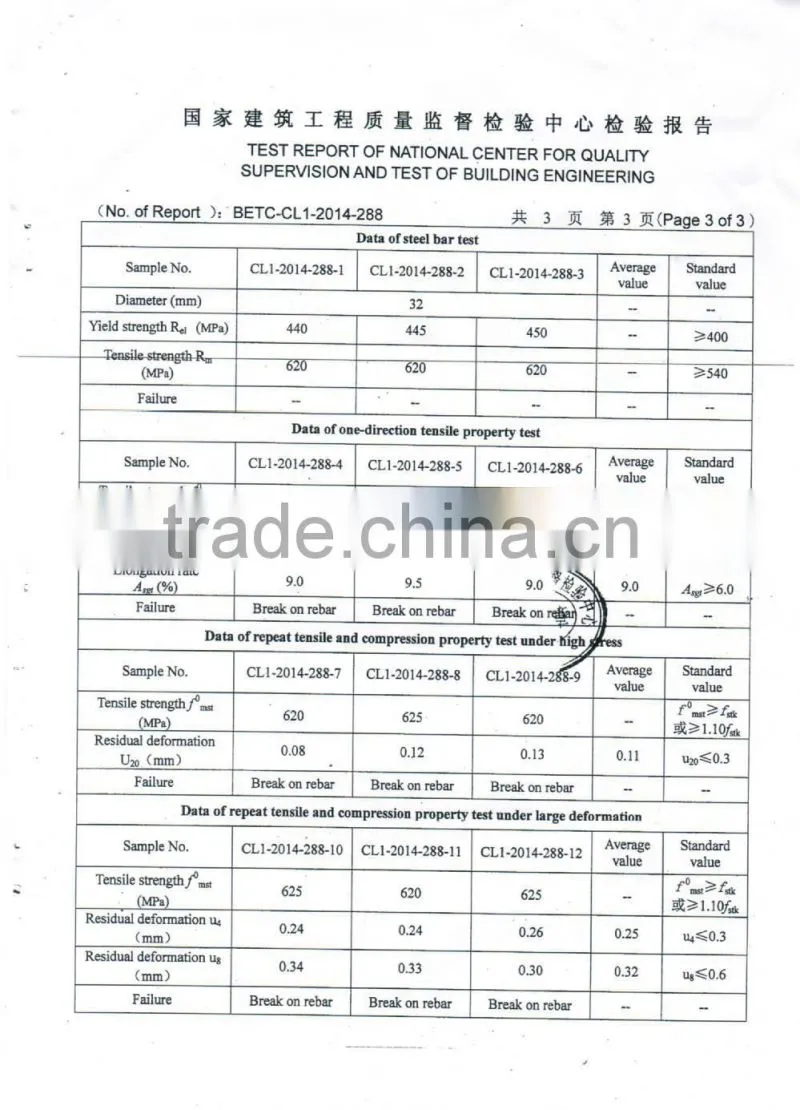

3. Certificate and Third Party Tested
4.Packing
