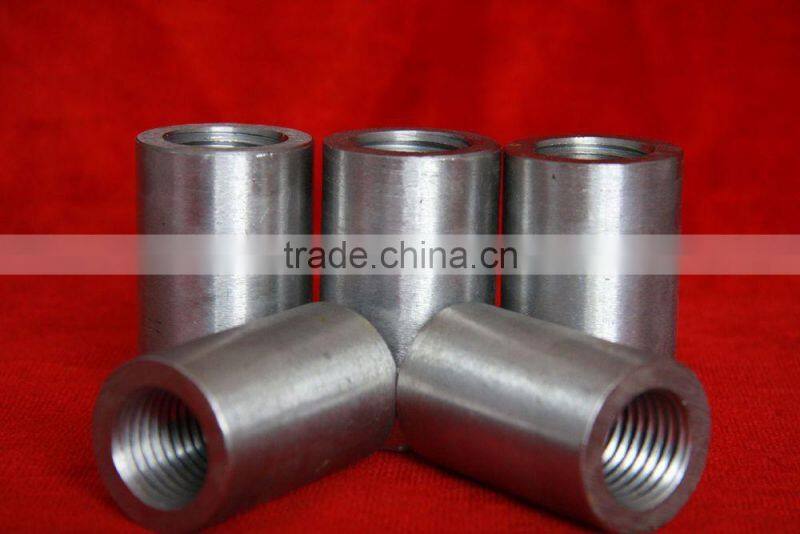

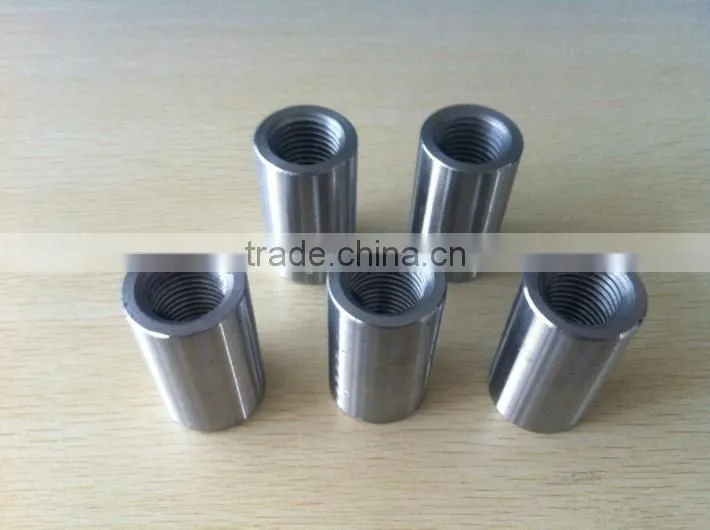

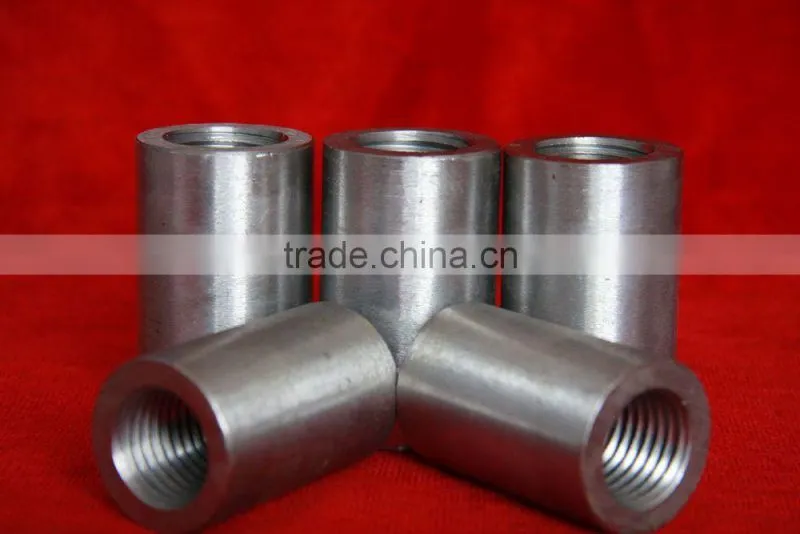

Help CenterScrew Thread Steel Bar Coupler Hardened Steel Sleeve
Related Products
-
Steel Bar/Rebar Coupler/Connector/Coupling/Bar JointNegotiableMOQ: 2000 Pieces -
Steel Bar/rebar/carbon Steel Connecting Sleeve, Straight Screw ThreadNegotiableMOQ: 2000 Pieces
-
Sleeve Coupler Connection/joint for Steel BarNegotiableMOQ: 2000 Pieces
-
Bar Steel Bar Threaded ConnectorNegotiableMOQ: 2000 Pieces
-
Competitive Price Rebar Coupler/connectorsNegotiableMOQ: 2000 Pieces
Specification
1. Material: 45# solid carbon steel outer sleeve
2. Use to connect the bars of HRB335 & HRB400
3. The couplers tensile strength is about 600 MPa,which is stronger than rebars.
4. Save materials. The weight of straight thread couplers only takes 25% of extrusion sleeves, but same connecting capability
5. Easy operation & high speed connection
6. Environmentally friendly. The process of connecting is safe and reliable without noises
7. Wide application, it could be used in the every orientation connection of HRB335 & HRB400 reinforcing bars with same or different Diameter.
8. Good low temperature resistance, and could pass the -40oC low temperature test.
9. All-weather construction: sacred from the wind, rain, snow and other weather conditions
10. Meet Customers' special demand, we have product in all sizes.
11. 28mm Carbon Steel Connection Sleeve
Technical Parameters
|
Coupler Size
|
Outer Dia(±0.5mm) |
Inner Dia(±0.5mm) |
Length(±2mm) |
Thread Pitch(mm) |
Thread Angle(º) |
Weight/Pc(kg) |
D12 |
19 |
10.28 |
35 |
M12 2*1.75P |
60/75 |
0.036 |
D14 |
21 |
12.55 |
38 |
M14 8*2.59 |
60/75 |
0.068 |
D16 |
24 |
14.50 |
43 |
M16 8*2.5P |
60/75 |
0.099 |
D18 |
27 |
16.35 |
48 |
M18 6*2P |
60/75 |
0.125 |
D20 |
29 |
18.45 |
53 |
M20 6*2P |
60/75 |
0.180 |
D22 |
33 |
20.35 |
58 |
M22 6*2P |
60/75 |
0.205 |
D25 |
37 |
23.15 |
63 |
M26 0*3.0P |
60/75 |
0.317 |
D28 |
41 |
25.95 |
68 |
M28 6*3.0P |
60/75 |
0.399 |
D32 |
47 |
30.15 |
80 |
M32 8*3.0P |
60/75 |
0.640 |
D36 |
54 |
33.85 |
83 |
M36 7*3.5P |
60/75 |
0.900 |
D40 |
59 |
37.55 |
88 |
M40 4*3.5P |
60/75 |
1.099 |
D50 |
74 |
47.10 |
125 |
M50 4*3.5P |
75 |
1.298 |
Application
1. Rebar connection sleevetype:Paralleled type,left hand type,right hand type,right and left hand type and reducing type.
2.Range of application:Suitable for rebar of HRB335 and HRB400.Diameter from 14mm to 50mm.

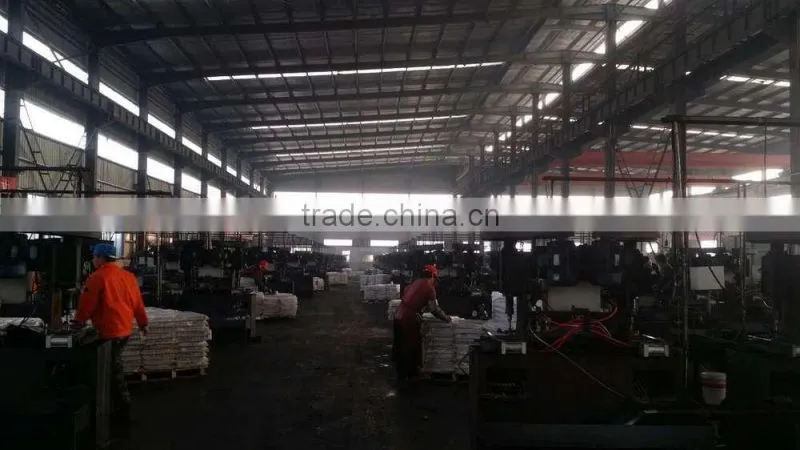

Zibo XinWan Group is dedicated to all kinds of construction machinery and equipment company. The main production and operation of submersible pumps, vacuum pumps, sand production line, reduction gearboxes.

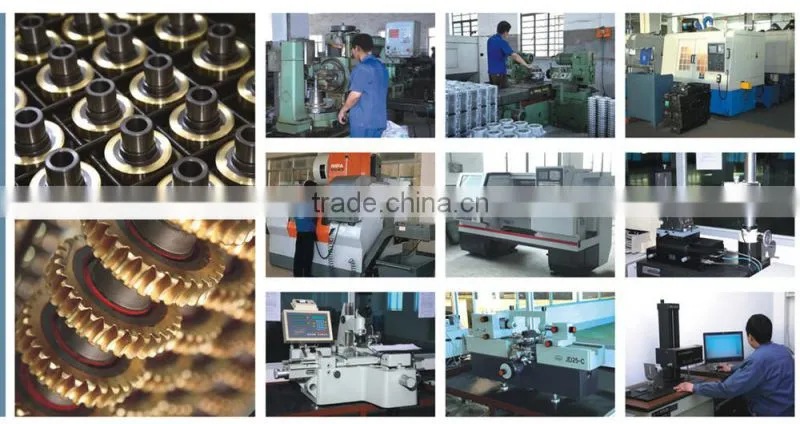

With 15 years of reducers production, powerful technical force, and complete inspection measures, quality Management System is in conformity with GB/T19001-2000-ISO9001:2000 standard.
