Small Stone Powder Jaw Crusher PE Type

Small Stone Powder Jaw Crusher PE Type thumbnail-1
Small Stone Powder Jaw Crusher PE Type photo-1
US$ 3,000 - 50,000 MOQ: 1 Piece
Key Specifications
Get Latest Price
Condition:
New
Type:
Jaw Crusher
Application:
Quarry, Mine, Building,etc
Contact Supplier Request Quote Chat Now
Zibo Xinwan Import & Export Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
QingDao/ShangHai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Jaw Crusher
Application Quarry, Mine, Building,etc
Motor Type AC Motor
Power(W) 90000
Capacity(t/h) 60-180
Place of Origin Shandong, China
Brand Name Xinwan
Model Number PE-250x400
Dimension(L*W*H) 190*2206*2300mm
Weight 17t
Certification ISO9001:2008
Warranty 1 Year
After-sales Service Provided Engineers available to service machinery overseas

Specifications

High efficiency, flexible, reliable, easy maintenance, energy saving.

PE series Jaw Crusher is mainly used to crush kinds of mining stones primarily, and the largest compression resistance of the material is 320MPa. The jaw crusher is widely used in stone mining, metallurgy industry, building material, highway, railway, and chemical  industry.


Feature:

-The deep crushing cavity increases the feeding capacity and output capacity;

-High ratio of crushing, homogeneous final product size;

-Adjusting the discharge opening through gasket, more convenient, it can meet different customers’ requirenment

-Lubricate system is safe and reliable, easy to change the spare parts;

-Simple structure, easy maintenance, consumption cost is lower;

-Energy-saving, for one set saving about 15%-30%;

-Little noise and dust.



Technical Data:



Model

Max. Feeding Size (mm)

Discharge Size (mm)

Capacity

 (t/h)

Motor Power

(kw)



Overall Dimensions

 (mm)



Weight (t)

PE150×250

125

10-40

1-3

5.5

896×745×935

0.8

PE250×400

200

20-60

5-20

15

1150×1275×1240

2.8

PE400×600

350

40-100

15-60

30

1700×1732×1653

6.5

PE500×750

425

50-100

50-100

55

2035×1921×2000

10.3

PE600×900

480

65-160

60-130

75

2290×2206×2370

16.5

PE750×1060

630

80-140

80-180

110

2620×2302×3110

29

PE900×1200

750

95-165

140-260

110

3789×2826×3025

54.5

PE1000×1200

850

195-265

315-550

110

3335×3182×3025

57

PE1200×1500

1020

150-300

400-800

160-220

4200×3750×3820

100.9

PEX250×750

210

25-60

10-40

22

1667×1545×1020

5

PEX250×1000

210

25-60

15-50

30

1550×1964×1380

6.5

PEX250×1200

210

25-60

20-60

37

1560×2104×1415

7.7





Pictures:

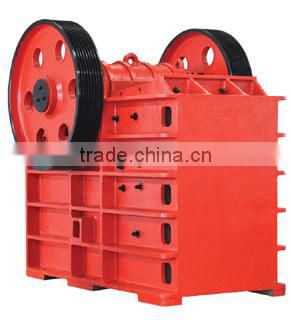

Small Stone Powder Jaw Crusher PE type

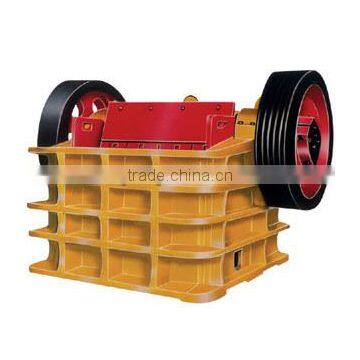

Small Stone Powder Jaw Crusher PE type

Enterprise Introduction:

Zibo Xinwan Import&Export Co.,LTD. is a famous manufacturer of crushing and screening equipments in China. We provide our customers complete crushing plant, including cone crusher, jaw crusher, impact crusher, VSI sand making machine, mobile crusher and vibrating screen. What we provide is not just the high value-added products, but also the first class service team and problems solution suggestions.  The complete crushing plants are exported to Russia, Mongolia, middle Asia, Africa and other regions around the world.

We have many crusher experts who are capable of new products searching and developing. We pay high attention on the international communication and cooperation and introduced advanced technology from Germany, America and Australia these years. We also have built research room in our company.
