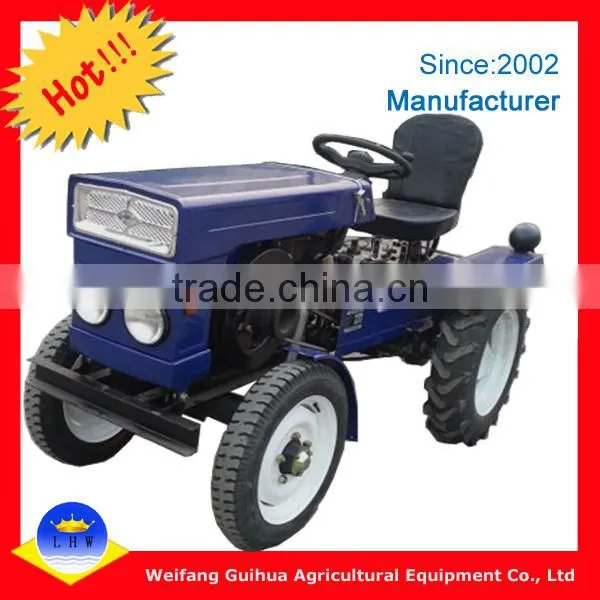

12HP Four Wheel Mini Walking Tractor

Specifications

12HP Mini Walking Tractor
1.Original factory
2.High quality and competitive price
3.Multi-function
4.Easy to operation

12HP Four Wheel Mini Walking Tractor

Brief





Weifang Guihua walking tractor is dual-function product that can be operated as the towing machine as well as driving machine. It has small and compact structure, light weight,  reliable performance, long service life,  easy operation and good running ability, also they are be assemble a seating equipment for driver.





The walking tractor is suitable for working in paddy field, dry field, orchard, greenhouse, hilly field. With matched accessories and farm implement, they can be used for ploughing,harrowing,seeding, cultivating, harvesting, drilling, ditching, transporting, irrigating, sprinkling, spraying, threshing,milling,and so on.



Specification



Four Wheel Mini Walking Tractor
Model	LHW-12HP
Overall Dimensions:(L×W×H)	2950×980×1240mm
Wheel tread	570,630,690,750,810mm
Tyres	Front 6.00-12
	Rear 4.00-8
Skid Wheels	2 Nos. 40Kg
Ground clearance	210mm
Working weight (with rotary tiller)	480 kg
Speed (km/hr)	Forward 1.39, 2.47, 4.15, 5.14, 9.12, 15.30
	Reverse 1.10, 4.10
Rotary tiller	Model:1GL-60
	Whole weight: 118 kg
	Width 600 mm
	Transmission type: chain drive
	Turning Speed: Low:199, High:250
	Number of blades: 18 pieces
Engine Information
Model	CJ25 Diesel
Type	Single cylinder,4-stroke,horixontal,water-cooled,diesel
Cooling model	Condenser (Radiator)
Rated power	8.8kw
Rated speed	2000rpm
Fuel efficiency	≤244.8gl/kw.hr
Net weight	450 kg
Packing	Case dimensions 116×108×108cm
	N.W/G.W 480/540 kg
Optional accessories	Trailer 600USD
	Disc plough 285USD(BIG)   100USD(SAMLL)
	Double plough 100USD
	Single plough 65USD
	Water pump 65USD
Container Load
Qty/20' FCL	30 PCS(22 PCS/20FTC,mud wheels outside the packing)
Qty/40' FCL	60 PCS(48 PCS/40FTC,mud wheels outside the packing)



Details











We are the specialized manufacturer for walking tractor for decades in Weifang City.



In total,4 production line in our factory,GH-101,GH-61,GH-91,GH-121,from 6HP to 20HP.







Many different configuration walking tractors can be chosen.





We also supply OEM service.

we would like to supply the suitable tractors according to your detailed requirement.



Various type of farm implements can be matched with our walking tractors.







Welcome your enquiry for our walking tractors,

we would like to try our best to help you to choose the suitable type!
