Home > Transportation > Tractor & Parts > Tractor > 12HP Manual Start Farm Hand Tractor Made in China
US$ 550 - 850
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Walking Tractor
By wheel:
2WD
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
LHW-101 2WD 12HP Walking Tractor For SaleUS$ 500 - 1,000MOQ: 1 Set -
LHW-101 12HP Walking Tractor For SaleUS$ 500 - 1,000MOQ: 1 Set
-
Chinese Supplier LHW-101 12HP Walking TractorUS$ 500 - 1,000MOQ: 1 Set
-
12hp Farm Tractor Hot Selling Cheap PriceUS$ 450 - 600MOQ: 5 Sets
-
12hp Farm Walking Tractor Matched With Tiller Cultivator and Plough Good SellingUS$ 450 - 600MOQ: 5 Sets
Condition
New
Type
Walking Tractor
By wheel
2WD
Usage
Garden Tractor
Drive Type
Gear Drive
Power(W)
8.82K
Certificate
Other, ISO
Brand Name
Guihua
Model Number
LHW101-12hw-c
Place of Origin
Shandong, China
After-sales Service Provided
Engineers available to service machinery overseas
Product Description

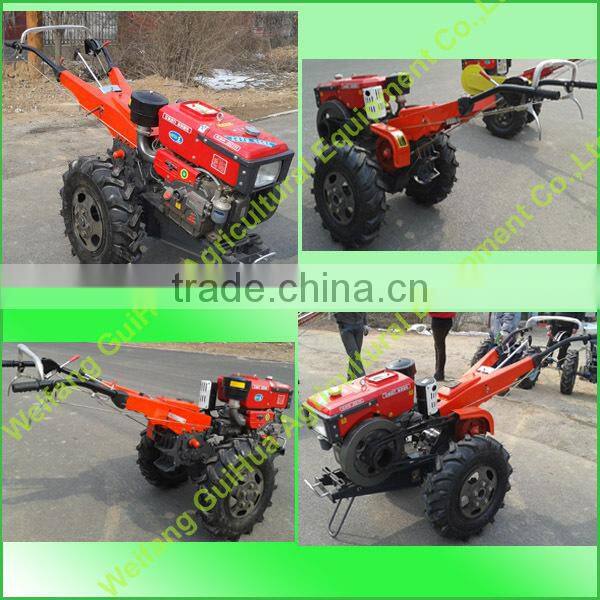

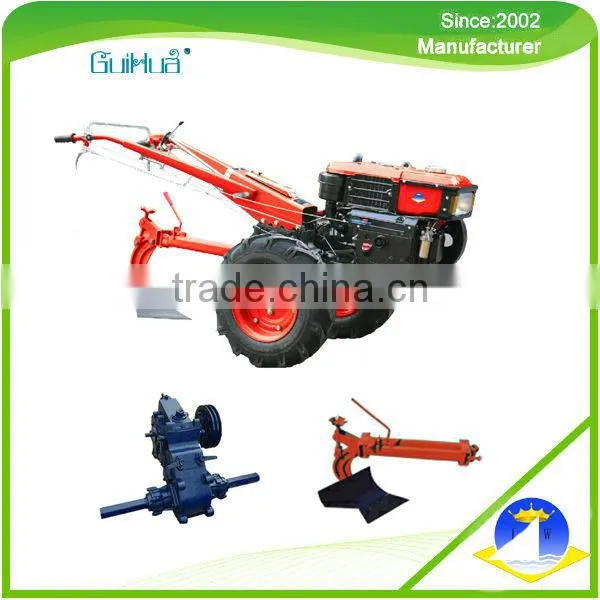

The mini tractor is suitable for working in paddy field, dry field, orchard, greenhouse, hilly field. With matched accessories and farm implement, they can be used for ploughing,harrowing,seeding, cultivating, harvesting, drilling, ditching, transporting, irrigating, sprinkling, spraying, threshing,milling,and so on.
Our Services
Responsibility ,Quality, Innovation,Struggling,Development.
Working hard, forging ahead, improving production technology, improving production efficiency, reducing production cost, to provide customers with competitive agricultural equipment. That’s the belief we always keeping.
The diesel engine certificate for our hand tractors
Product Description
| Chassis Information | ||
| Model | LHW101-12hw-c | |
| Overall Dimensions:(L×W×H) | 2950×980×1240mm | |
| Wheel tread | Rubber wheel: 570-810mm; Iron wheel: 850-1090mm | |

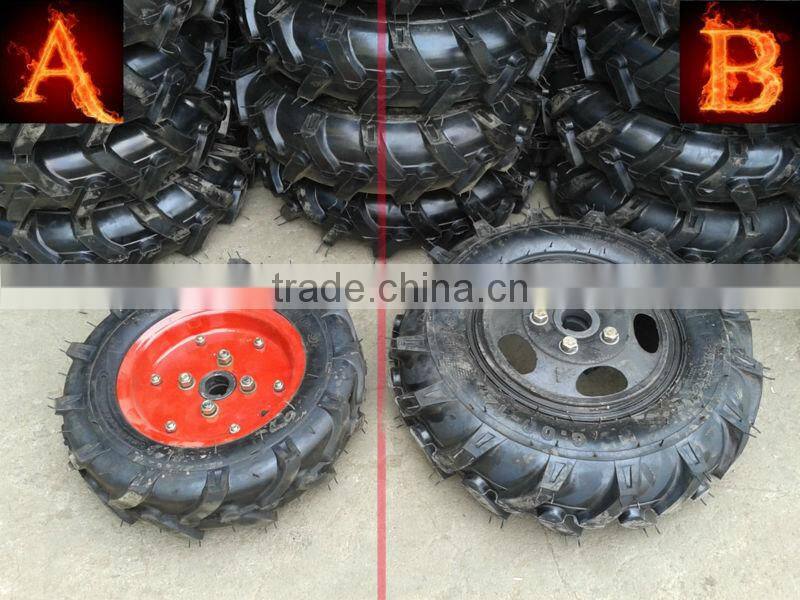

| Tyre Size | Front 6.00-12 (rubber); Rear 4.00-8 (rubber) | |
| Ground clearance | 210mm | |
| Net Weight (without rotary tiller) | 380 kg | |
| Net Weight (with rotary tiller) | 480 kg | |
| Tyre Inflation Pressure(kg/cm²) | For Cultivation 1.1`1.4 | |
| For Carrying 1.8~2.0 | ||
| Speed (km/hr) | Forward 1.39,2.47, 4.15, 5.14, 9.12, 15.30 | |
| Reverse 1.10, 4.10 | ||
| Rotary tiller | Blades number: 18 | |
| Width 600 mm | ||
| Turning Speed: 1st: Low:220, High:251 2nd: Low:233 High:291 | ||
| Blades: 2 sets (1 for dry&1 for wet land cultivation) | ||
| Engine Information | ||
| Model | ZH195N Diesel | |
| Type | Single cylinder,4-stroke,horixontal,water-cooled,direct injection | |
| Cooling System | Condenser (Radiator, made by brass metal) | |
| Rated power | 12.24HP | |
| Rated speed | 2000rpm | |
| Fuel Tank Capacity | 9 kg | |
| Fuel Consumption (g/kw.hr) | ≤258.4 | |
| Structure Weight (kg) | 150 | |
| Engine Oil Sump (kg) | 2.5 | |
| Air Cleaner | Oil Bath Type | |
| Fuel filter | Duel Fuel Filter(Primary and Secondary) for controlling fuel adulteration | |
| Starting system | Manual Cranking Type | |
| Clutch | Multiple Dry Plate, Friction Type | |
| Lubricating way | Combine pressure and splashing | |
| Other technical data | ||
| Gear Box | Six Speed Forward, Two Speed Reverse | |
| Main Frame Implements | 1) Anti-skid steel wheel(with 10 sprockets and extra bit) – 1 set | |
| 2) 1 nos. rear iron wheel for mud cultivation | ||
| 3) Rotary blades 2 sets (1 for dry&1 for wet land cultivation) | ||
| Clutch | Double friction flat of constant combination | |
| Brake System | Drum Type | |
| Accessories | 1 set tools and 1 set fast moving spare parts | |
| MOQ | 1units | |
| Container Load QTY | ||
| 20GP | 20units(with plywood case package), 30units(nude packing) | |
| 40HQ | 40units(with plywood case package) | |
Packaging & Shipping
40' container:
Only one set, including rotary tiller & plough.
We also supply OEM service.
we would like to supply the suitable tractors according to your detailed requirement.
FAQ
we would like to try our best to help you to choose the suitable type!
