High Brightness Lcd Monitor Wireless 5.8g Hdmi Transmitter and Receiver
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Correa
Model Number:
TS58500
Payment & Shipping
Payment Methods:
Port of Shipment:
HK
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
TS5823 Super Mini 32CH 200mW 5.8GHz FPV Transmitter 5G8 200mWNegotiableMOQ: 1 Set -
TX RX 32CH 2000mW 5.8G FPVNegotiableMOQ: 1 Set
-
DJI Phantom 2 and Phantom 2 Vision+ 2.4 GHz RC BoosterUS$ 20 - 38MOQ: 1 Piece
-
DJI Futaba RC Transmitter 2.4G 2W FPV BoosterUS$ 20 - 38MOQ: 1 Piece
-
Low Voltage Buzzer Alarm With 1-8S Lipo Battery for RC FPV Drone QuadcopterNegotiableMOQ: 5 Pieces
Place of Origin
Guangdong, China
Brand Name
Correa
Model Number
TS58500
Specifications
high brightness lcd monitor wireless 5.8g hdmi transmitter and receiver1. 32CH working channels
2. Lightweight
3. DC7-24V
Product Description

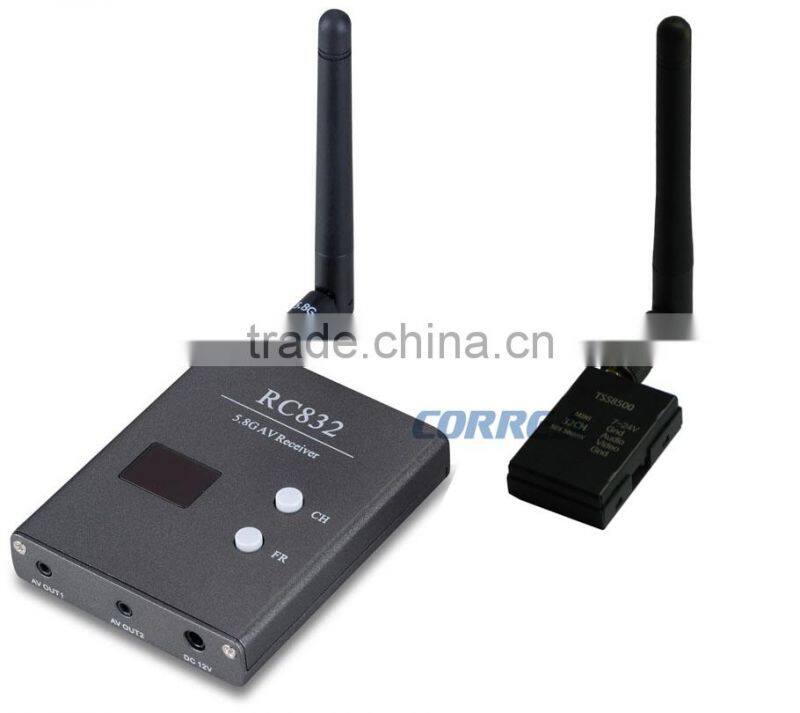

high brightness lcd monitor wireless 5.8g hdmi transmitter and receiver
Features

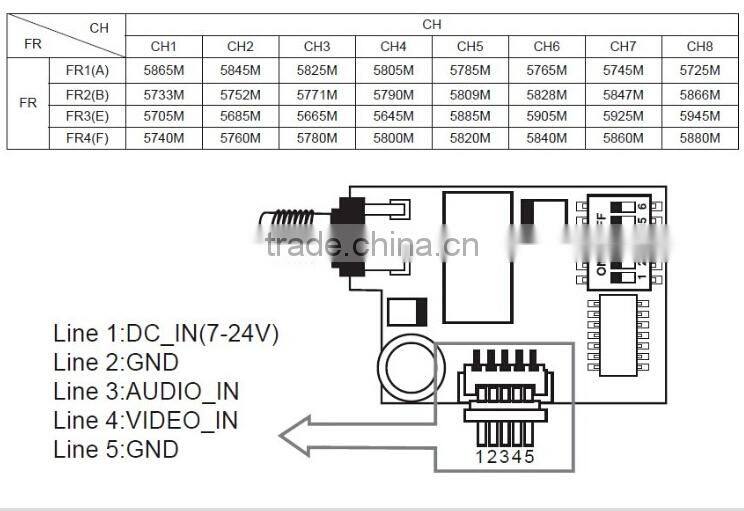

32 channels: Cover A, B, E, F bands
Micro size and light weight
Output Power: 500mW
Transmitting distance: >3000m line of sight
Specifications:
Operating Voltage 7 - 24V
Supply current 220 mA
Video Band Width: 8.0 MHz
Audio carrier Frequency 6.5 MHz
Video Input Level 0.8 1.0 1.2 Vp-p
Video Input Impedance 75 Ohm
Audio Input Level 0.5 2.0 Vp-p
Audio Input Impedance 10K Ohm
Antenna Connector: SMA Connector
Video Format NTSC/PAL
Output Impedance 50 Ohm
Dimensions (L x W x H) 42x23x8mm
Weight 10g
