Specifications

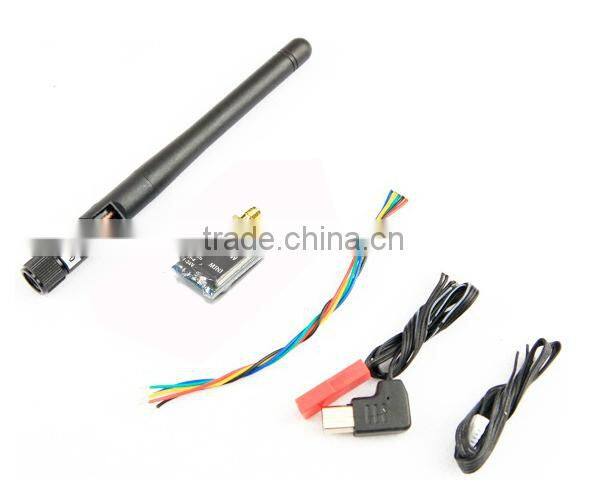

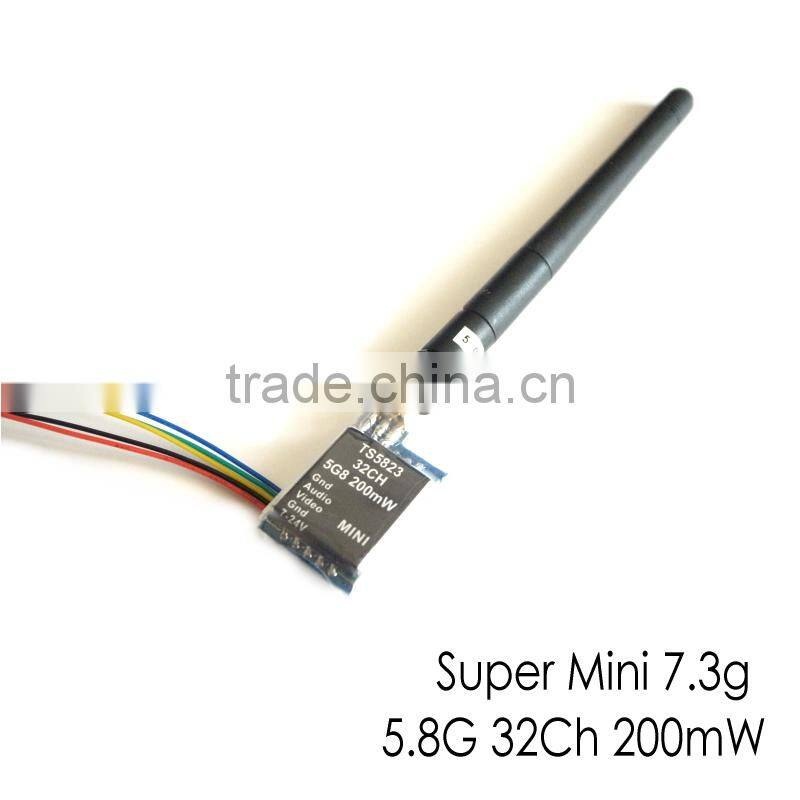

TS5823 Super Mini 32CH 200mW 5.8GHz FPV Transmitter 5G8 200mW1. 32CH working channels
2. Lightweight
3. DC7-24V
With super tiny size and ultra lightweight, this TS5823 transmitter is suitable for small multirotors and super light air vehicles. It is also very suitable for DJI Phantom series. As smaller than the thumb, the weight is 7.3 gram ONLY.
Modulate: Wideband FM Modulate
Video Format : NTSC/PAL
Output Impedance:50 Ohm
Output Power : 23-24dBm
Channel:32 CH
Operating Voltage: 7V-24V
Supply Current : 190mA
Operating Temperature: -10~85°C
Video Band Width : 0~8.0 MHz
Audio Carrier Frequency : 6.5 MHz
Video Input Level: 0.8~1.2 Vp-p
Video Input Impedance : 75 Ohm
Audio Input Level : 0.5~2.0 Vp-p
Audio Input Impedance : 10K Ohm
Connector: SMA Female(outer hole),RP-SMA Female(outer needle)
Antenna Connector: SMA Male(Inner needle),RP-SMA Male(Inner hole)
Dimension: 40mm x 23mm x 8mm
Weight: 7.3g
