Specifications

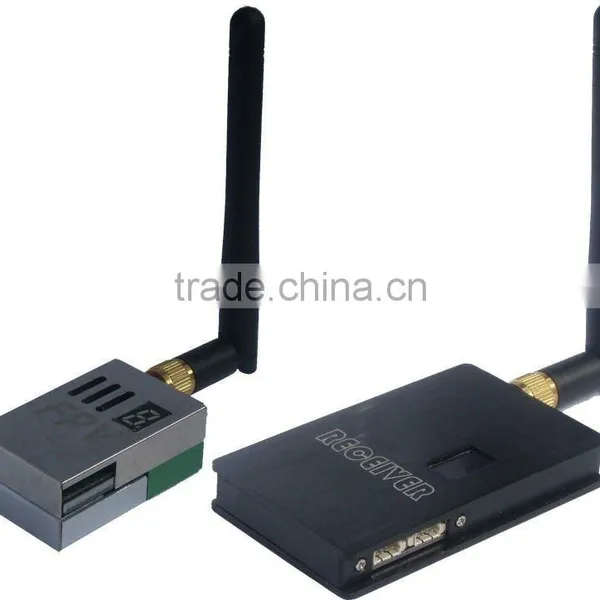

5.8G AV Tx Rx Module for Wireless Audio Video Transmission1.Output Power: 600mW

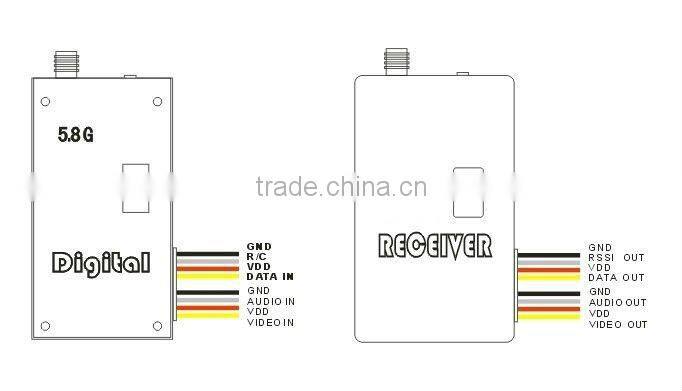

2. SMA connectors for all kinds of antennas
Fetures:
1. Compatiable with Fatshark, Airwave, ImmersionRC and others. Fully compatible with 2.4GHz R/C radios.
2. Switching the video channel remotely to avoid the interference from another transmitter on the same channel.
3. The transmitter has 600mW of output power, a cooling fan built-in to keep it from over heating.
Any freuencies from 5600MHz to 6000MHz can be customized.
Working Frequencies: 5720MHz 5740MHz 5760MHz 5780MHz 5800MHz 5820MHz 5840MHz 5860MHz 5880MHz
TX spec.:
Weight:35g
Dimension:45.5*28.5*18mm
Working Voltage:DC12V
Working Current:400mA
Working Frequency:5.8G
Working Channels:9CH
Working Power:600mW
Transmission Distance: Min. 1200m in the open space.
RX spec.:
Weight:67g
Dimension:72*43*11mm
Working Voltage:DC12V
Working Current:200mA
Working Frequency:5.8G
Working Channels:9CH
