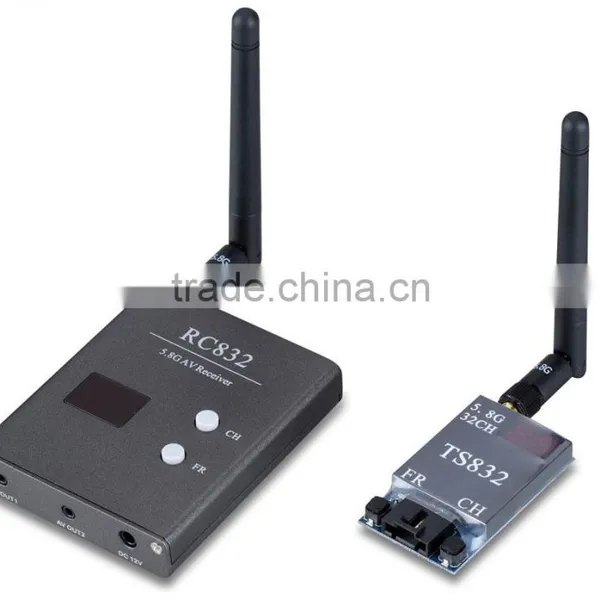

FPV 5.8G 600mW 40CH AV Video Audio Wireless Transmitter Receiver TS832+RC832
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Use:
Other, Vehicles & Remote Control Toys
Place of Origin:
Guangdong, China
Brand Name:
Correa
Payment & Shipping
Payment Methods:
Port of Shipment:
Hong Kong
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
1 Watt 1.2/1.3ghz Video Tx and VRx Combo 1000mW FPV 1.3 VTxUS$ 68 - 82MOQ: 1 Piece -
TX5823 Wireless Transmission Module SPI Mode 5.8GHz Transmitter PCBUS$ 6 - 8MOQ: 1 Piece
-
15CM U.FL/IPX to RP-SMA Female Antenna Pigtail Jumper CableUS$ 0.2 - 0.8MOQ: 1 Piece
-
Factory Wholesale TS5823L RC Gear 5G8 Mini VTx FPV 5.8 GHz Video Transmitter Receiver 200mWUS$ 8 - 10MOQ: 1 Piece
-
Wholesale FPV Equipments Racing Drone 600mW 5.8GHz Video TransmitterUS$ 20 - 28MOQ: 1 Set
Use
Other, Vehicles & Remote Control Toys
Place of Origin
Guangdong, China
Brand Name
Correa
Model Number
TS832+RC832
FPV 5.8G 600mW 40CH AV Video Audio Wireless Transmitter Receiver TS832+RC832
Specs:
Video format supported: NTSC/PAL
Antenna connection: RP-SMA, jack (module side, both TX and RX)
Transmitter TX TS832 specs:
Power input: 7.4-16V (3S Lipoly suggested)
Transmitting power: 600mW
Antenna gain: 2dbm
Working current: 220mA at 12V
Video bandwidth: 8Mhz
Audio bandwidth : 6.5Mhz
Weight: 21g
Dimension: 54x 32x 10mm(excluding antenna)
Receiver RX RC832 specs:
Power input: 12V
Working current: 200mA max
Antenna impedance: 50Ω
Antenna gain: 2db
Rx sensitivity -90dBm
Video impedance: 75Ω
Video format: NTSC/PAL auto
Dimension: 80x 65 x15mm
Weight: 85g
