Specifications

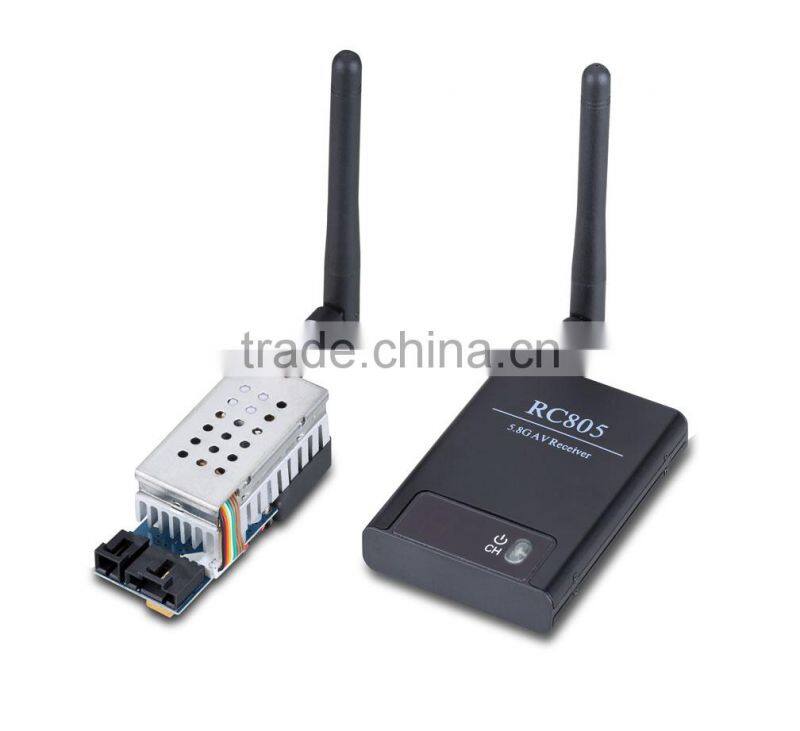

Digital Display 8CH 500mW 5.8G FPV Video Audio Transmitter1. Eight working channels
2. Long distance without interference
Transmitter Spec.:
Modulate: Wideband FM Modulate
Video Format: NTSC/PAL
Output Impedance: 50 Ohm
Output Power: 21~23 dBm
Channel Frequency: CH1: 5705 MHz CH2: 5685 MHz CH3: 5665 MHz CH4: 5645 MHz
CH5: 5885 MHz CH6: 5905 MHz CH7: 5925 MHz CH8: 5945 MHz
Operating Voltage: 7~15V
Supply current: 550 mA
Operating Temperature: -10 ~ +85 °C
Video Band Width: 0 ~ 8.0 MHz
Audio carrier Frequency: 6.5MHz
Video Input Level: 0.8 ~ 1.2 Vp-p
Video Input Impedance: 75 Ohm
Audio Input Level: 0.5 ~ 2.0 Vp-p
Audio Input Impedance: 10K Ohm
Weight: 25g
Antenna Connector: SMA Connector
Dimensions (L x W x H): 55x26x17mm
Reciever Spec.:
Receiving Senstivity: <90dBm
Receiving Frequency: ISM 5.8GHz
Antenna Port: 50 ohm SMA
Antenna Gain: 2dBi
Power Supply: DC 12V 170mA
Dimmensions (WxHxD): 100x79x18mm
Weight: 60g
