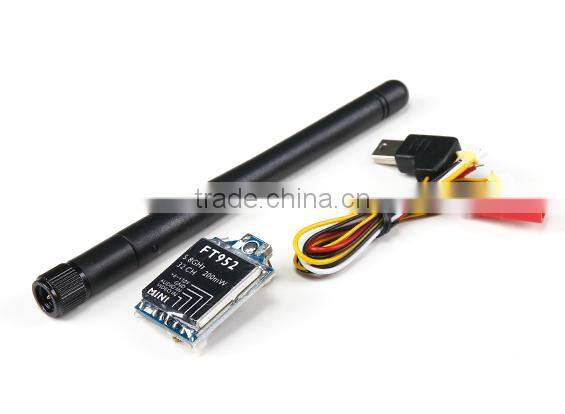

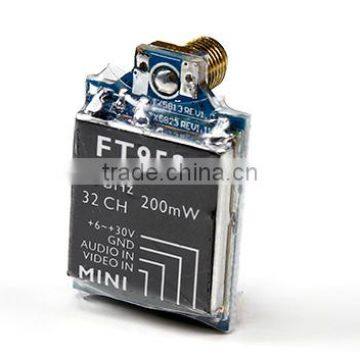

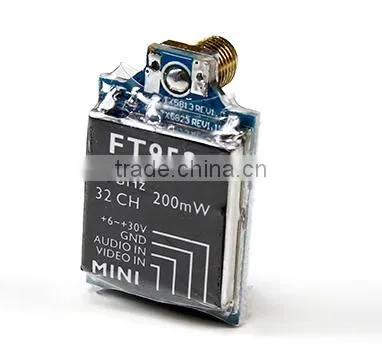

90 Degree SMA 5.8 GHz Mini Video Transmitter FT952 VTX
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Use:
Other, Vehicles & Remote Control Toys
Place of Origin:
Guangdong, China
Brand Name:
Correa
Payment & Shipping
Payment Methods:
Port of Shipment:
Hong Kong
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Long Range Wireless FPV 5.8GHz AV Video Transmitter ReceiverUS$ 20 - 28MOQ: 1 Set -
CE Approved FCC FT951 5.8GHz 25mW 22CH FPV TransmitterNegotiableMOQ: 1 Piece
-
Micro VTx 5.8G FPV 32 Channels FT953 5.8GHz 400mW Video TransmitterNegotiableMOQ: 1 Piece
-
Combo FPV Kit 910MHz Pico Video Transmitter 900MNegotiableMOQ: 1 Piece
-
Light 1258MHz 1280MHz Mini 200mW TransmitterNegotiableMOQ: 1 Piece
Use
Other, Vehicles & Remote Control Toys
Place of Origin
Guangdong, China
Brand Name
Correa
Model Number
FT952
• Micro sized and light weight - perfect for the mini drones
• 32 channels, total four bands
• Wide input voltage
• Working frequency: 5645-5945 MHz with 200mW output power
Specifications:
Modulate: Wideband Frequency Modulation
Video Format: NTSC/PAL/SECAM (Auto)
Output Impedance: 50 Ohm
Output Power: 200mW (23~24dBm)
Channel: 32CH
Operating Voltage: DC6V~30V
Supply Current: 110mA +/- 10mA
Operating Temperature: -10~85°C
Video Band Width : 0~8.0 MHz
Audio Carrier Frequency: 6.5MHz
Video Input Level: 1V +/- 0.2Vp-p
Video Input Impedance: 75 Ohm
Audio Input Level: 0.5~2.0 Vp-p
Audio Input Impedance: 10K Ohm
Connector: SMA
Dimension: 30mm x 23mm x 8.4mm
Transmitter weight: 6.9g
GoPro lead weight: 4.3g
Antenna weight: 8.7g
