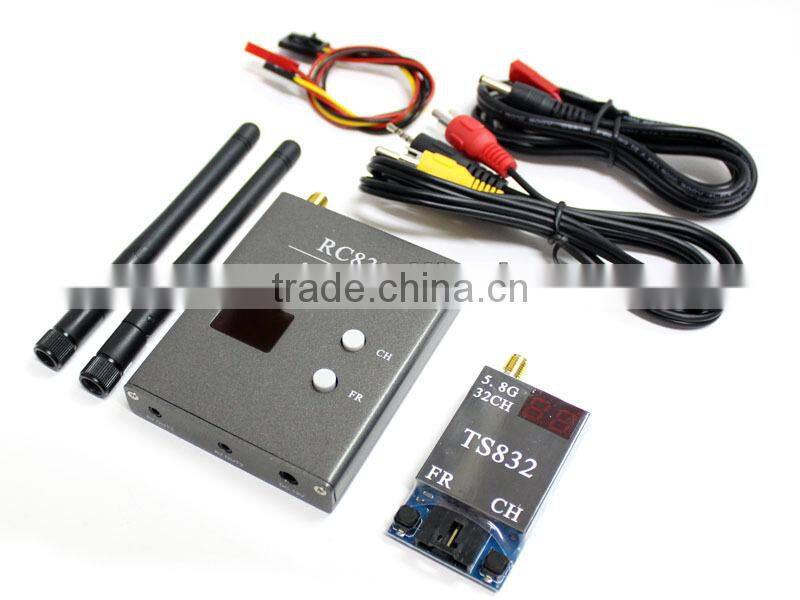

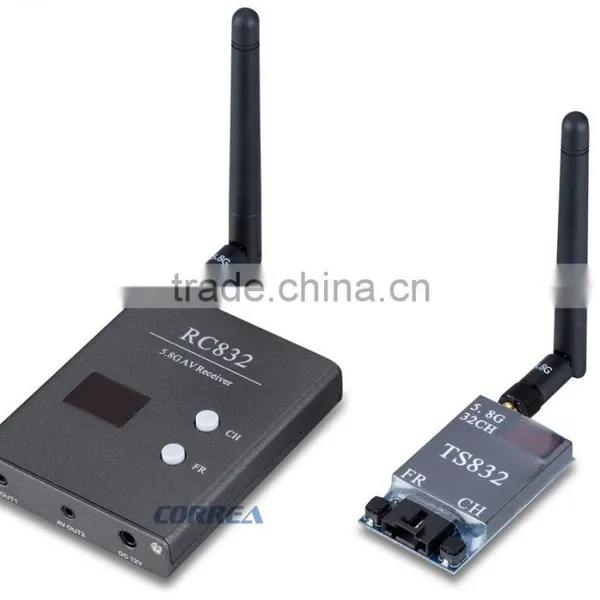

Mini 600mW Transmitter and 5.8 GHz 32 Channel Receiver
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Correa
Model Number:
TS832+RC832
Payment & Shipping
Payment Methods:
Port of Shipment:
Hong Kong
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Digital Display 8CH 500mW 5.8G FPV Video Audio TransmitterNegotiableMOQ: 1 Set -
1500mW FPV Transmitter 1.3GHz FanNegotiableMOQ: 1 Set
-
1.2G 800mW Long Range Wireless Transmitter ReceiverNegotiableMOQ: 1 Set
-
5.8G 2 Watt 32 Channel Thunderbolt TS5832 5.8GHz 2000mW 32CH AV Wireless FPV TransmitterNegotiableMOQ: 1 Set
-
90 Degree SMA 5.8 GHz Mini Video Transmitter FT952 VTXNegotiableMOQ: 1 Piece
Place of Origin
Guangdong, China
Brand Name
Correa
Model Number
TS832+RC832
Specifications
Mini 600mW Transmitter and 5.8 GHz 32 Channel Receiver1. 32 channels selectable
2. High sensitivity receiver
Product Description
Specs:
Video format supported: NTSC/PAL
Antenna connection: RP-SMA, jack (module side, both TX and RX)
Transmitter TX TS832 specs:
Power input: 7.4-16V (3S Lipoly suggested)
Transmitting power: 600mW
Antenna gain: 2dbm
Working current: 220mA at 12V
Video bandwidth: 8Mhz
Audio bandwidth : 6.5Mhz
Weight: 21g
Dimension: 54x 32x 10mm(excluding antenna)
Receiver RX RC832 specs:
Power input: 12V
Working current: 200mA max
Antenna impedance: 50Ω
Antenna gain: 2db
Rx sensitivity -90dBm
Video impedance: 75Ω
Video format: NTSC/PAL auto
Dimension: 80x 65 x15mm
Weight: 85g
Frequency range:
FR1 5865,5845,5825,5805,5785,5765,5745,5725
FR2 5733,5752,5771,5790,5809,5828,5847,5866
FR3 5707,5685,5665,5645,5885,5905,5925,5945
FR4 5740,5760,5780,5800,5820,5840,5860,5880
