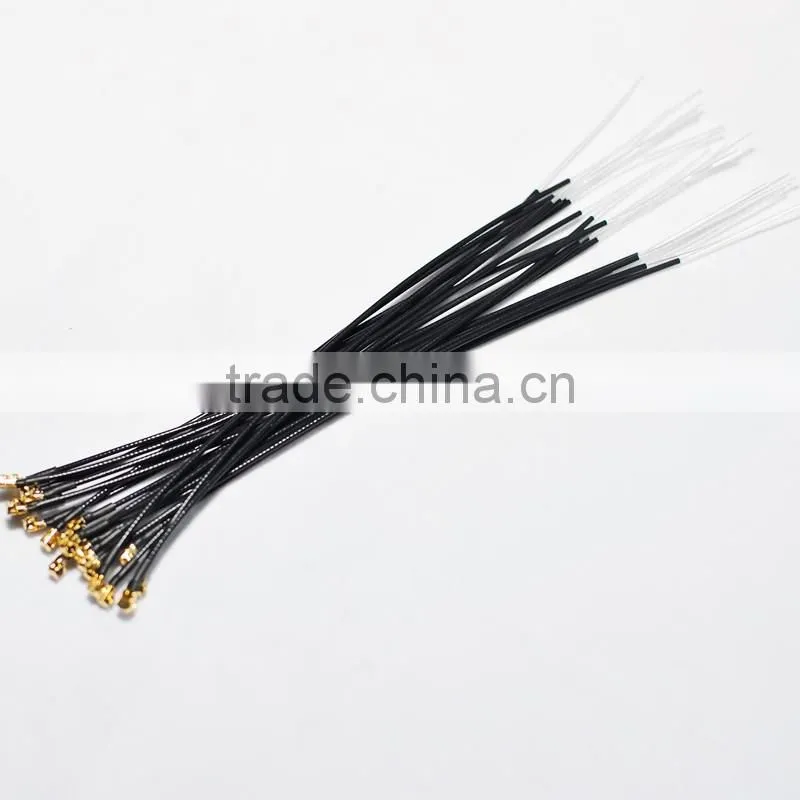

Replacement 2.4GHz R/C 15 CM Frsky Receiver Antenna With IPEX Connector

Replacement  2.4GHz R/C 15 CM Frsky Receiver Antenna with IPEX Connector (not original)

Futaba, JR, FRSKY, etc. using the IATA interface 2.4G receiver antenna, high-quality gold-plated head.

Wire part of the length of 120MM, transparent part of the 30MM long, the total length of 150MM remote control from the stable and normal.

Electrical Characteristics: (Electrical Characteristics)
Frequency: 2400 to 2500 MHz (frequency of use)
S.W.R. <= 2.0 (standing wave ratio <2.0)
Antenna Gain: 2.0 (Gain: 2DBi)
Polarization: Linear (linear polarization)
Impedance: 50 Ohm (impedance of 50 ohms)
B. Material & Mechanical Characteristics (mechanical properties)
Cable Type: RG-113 (coaxial line RG-1.13 line), screened silver material, not tin
Connector Type: IPEX (IPEX interface)
Connector Pull Test> = 2 Kg (interface tension> 2 kg)
C. Environmental (use of the environment)
Operation Temperature: - 40 ° C to + 65 ° C
Storage Temperature: - 40 ° C to + 80 ° C
