Home > Toys > Remote Control Toys > RC Car > FPV Quadcopter Transformer 300 Carbon Fiber Frame Combo CC3D MT2204 12A ESC

FPV Quadcopter Transformer 300 Carbon Fiber Frame Combo CC3D MT2204 12A ESC

Name: FPV Quadcopter Transformer 300 Carbon Fiber Frame Combo CC3D MT2204 12A ESC
Brand: Correa
SKU: 140094748
Availability: InStock

FPV Quadcopter Transformer 300 Carbon Fiber Frame Combo CC3D MT2204 12A ESC thumbnail-1

FPV Quadcopter Transformer 300 Carbon Fiber Frame Combo CC3D MT2204 12A ESC photo-1

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Type:

Other, Mini Drones

Power:

Battery

Material:

Other, Other / Carbon-fiber

Contact Supplier Request Quote Chat Now

Shenzhen Correa Electronic Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Hong Kong

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Type Other, Mini Drones

Power Battery

Material Other, Other / Carbon-fiber

Scale Other

Radio Control Style RC Hobby

Place of Origin Guangdong, China

Brand Name Correa

Model Number FPV300

This is a new mini quadcopter. It has virtually all of the components needed to build a light weight, agile and fast machine perfect for the latest craze in FPV racing.

This extremely low-weight mini sport frame is pure carbon fibre designed to offer high-strength to weight ratio. It contains high-quality performance parts. These 300 size quads have a couple of unique features with the rear motors mounted upside down and the ability to fold the arms for easy transportation and storage. The Transformer also includes a helicopter style landing gear to elevate the frame. Not only does this protect the inverted motors in the rear, it enables you to mount a gimbal.

The quad uses the CC3D open source flight controller. This maintains the ideals that OpenPilot have stood by from day one in being safe, easy to use and high in quality.

Description:
Arm plate thickness: 4.75mm
Main material: carbon fibre
Diameter: 300mm (between motor centres)
Weight: 190g
Wheelbase: 295 (+/-3mm)
Height: 98 (+/-3mm)

Features:
OpenPilot CC3D flight controller
Pure carbon fibre frame - no carbon/glass mix
Futuristic design and styling
Folding arms to enable easy storage and transportation
Varied mounting holes offering several options for different bolt patterns
Damping balls to prevent excess vibration to the flight controller
Easy LiPo access

MT2204 2300KV Motor:
EMAX MT2204 2300KV motor use the Japanese NMB ball bearing, Japanese Kawasaki stator, Ndfeb with strong magnetic and high temperature resistance which decreasing heat generation during operation, increasing efficiency.
Comes with low CG design to help to decrease vibration when running, MT2204 motor is suitable for mini multicopters with better flight
KV: 2300
Max Thrust: 440g
Length: 32.2mm
No.of cell: 2-3S
Weight: 25g
Framework: 12N14P
Shaft: 3mm
Propeller: 5-6"
Diameter: 27.9mm

Simon 12A ESC:
Based on SimonK firmware, further optimized to the perfect drive performance and can be flashed with Blheli firmware.
Quicker throttle response and better throttle linear.
Item: Simon-12A ESC
Continuous Current: 12A
Burst Current (10S): 15A
Li-xx Battery (cell): 2-3
Weight (g) wires included: 9
BEC Mode: Linear
BEC Output: 1A/5V
Programmable: YES - Weight: 8g

CC3D flight controller:
Designed from the ground up by a community of passionate developers from around the globe, with its core design principals being quality, safety, and ease of use.

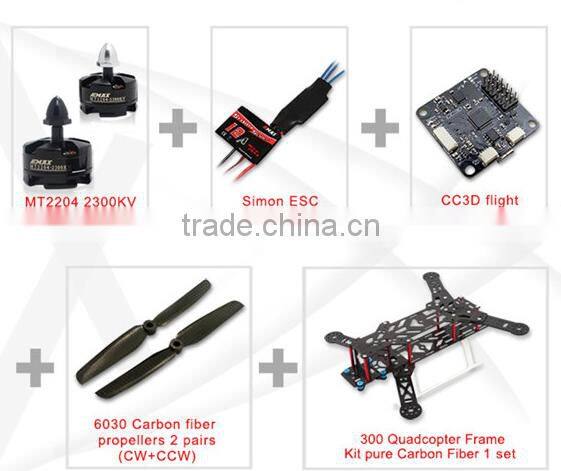

Package Included:
1 x FPV 300 carbon fiber frame kit
1 x OpenPilot CC3D flight controller
4 x Emax MT2204 2300KV motors (2 x CW, 2 x CCW)
4 x Emax Simon series 12A ESC
8 x M3 x 5mm standoffs
4 x M3 x 8mm screws
4 x M3 nuts
4 x Damping balls for flight controller
4 x 6030 carbon fibre props (2 x CW, 2 x CCW)
