Mini Drones Sony 600TVL Board Camera FPV System

Mini Drones Sony 600TVL Board Camera FPV System photo-1
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Correa
Model Number:
CSY3125CH
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzen
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Guangdong, China
Brand Name Correa
Model Number CSY3125CH
Type Digital Camera
Style Mini Camera
Sensor CCD
Technology Pinhole
Special Features Vandal-proof

Fetures:

1/3" Sony superHAD CCD II,639/638BK+2090

Hi Resolution 700TV Line (600TVL is optional)

DC 5V-15V , 60mA (DC12V) ,Low Currency to avoid the hot problem

3.6mm lens , wide angle 2.8mm lens is optional

0.05 Lux/F2.0  Good image under low light condition

OSD capability - great for FPV and for changing camera settings

2D Digital Noise Reducer (DNR) - low light image quality is improved

DigitalWide Dynamic Range – can combine multiple images in order to minimise shadows and improve overall picture quality

Size: 25mm x 25mm



Model NameCSY3125CH
Image Device1/3"   Sony superHAD CCD ll
Scanning System2:1   Interlace
Scanning FrequencyPAL : 15.625   KHz(H), 50 Hz(V)
NTSC : 15.734 KHz(H), 59.94   Hz(V)
H. Resolution700TVL
Effective PixelsPAL:752(H)   X 582(V) / NTSC : 768(H) X 494(V)
S/N RatioMore   than 52dB (AGC Off)
Min. Illumination0.05   Lux  / F2.0
Power ComsumptionDC5-15V, 60mA
Sync. SystemInternal
Video Output1.0  Vp-p Composite (75Ω)
LensFixed   Board Lens / Pinhole Lens / Vari-Focal Lens
Operating Temperature14°F ~ 122 ° F (-10 ° C   ~ +50 ° C)
Storage Temperature-4 ° F ~ 140 ° F (-20 ° C   ~ +60 ° C)
Dimensions (mm)25x25mm

OSD                   (Optional)Electronic   ShutterAuto,   FLK, 1/250 ~ 1/100,000 sec
AGCLow   , Middle , High
White BalanceAnti   CRL, Manual, ATW1, ATW2
Day&NightColor   , Auto, B/W
Motion DetectionOff,On   (4 area)
PrivacyOff,On   (8 area)
HLCAll   day / Night only
Digital WDROff   , On (0-63)
DNR2D   DNR, Level Adjustable
LanguageEnglish, French, Russian, German,
Spanish,   Dutch,Chinese, Japanese, Portuguese





Mini Drones Sony 600TVL Board Camera FPV System

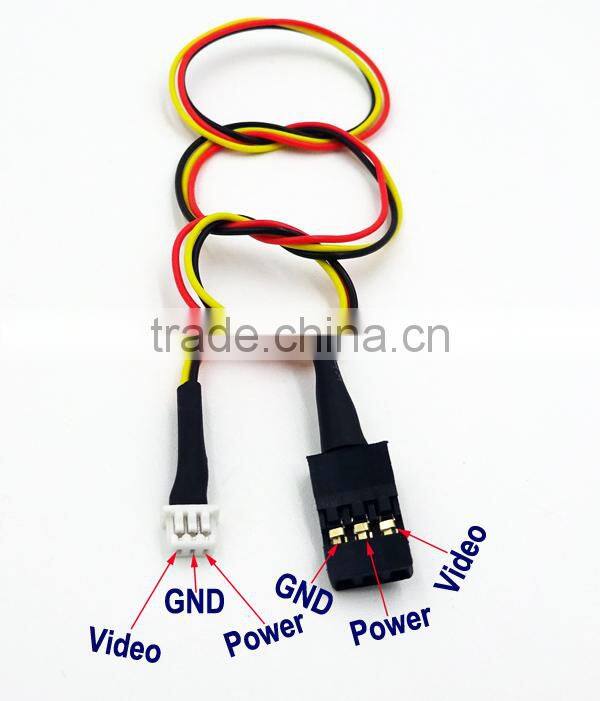

If you will use this mini CCD camera for FPV, we also include a FPV Cable.

Mini Drones Sony 600TVL Board Camera FPV System

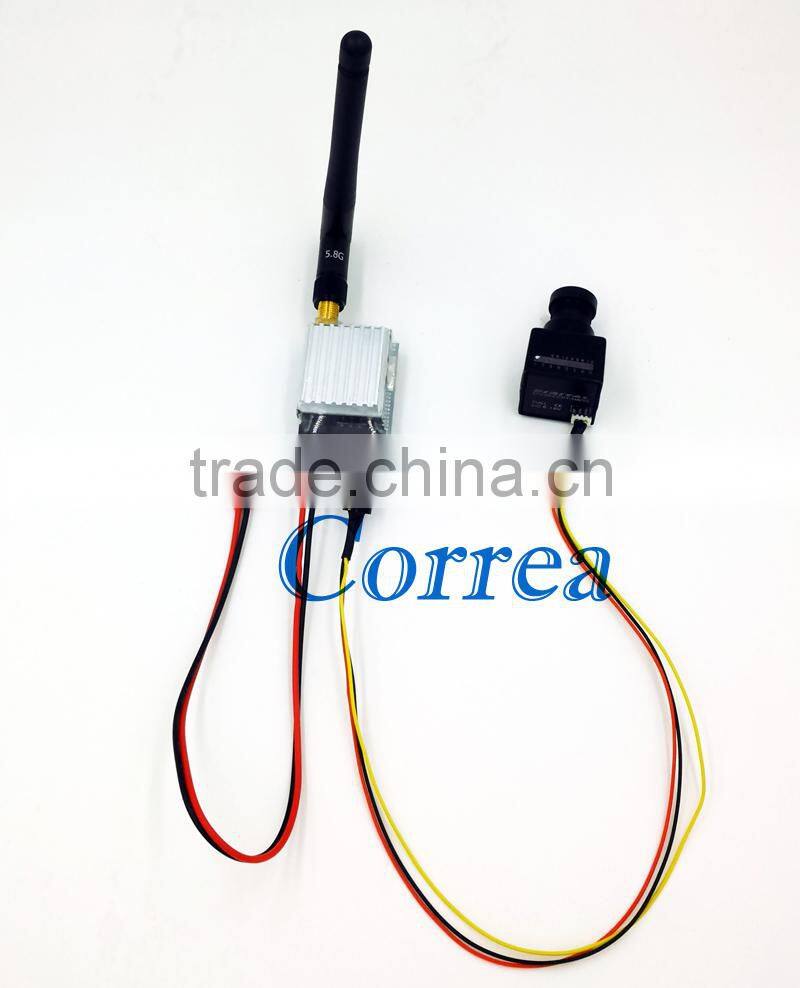

Application Example:


Mini Drones Sony 600TVL Board Camera FPV System
