Home > Electrical & Electronics > Antenna > Communication Antenna > FPV 5.8G Clover Leaf Omni-directional Circular Polarized Antenna Set

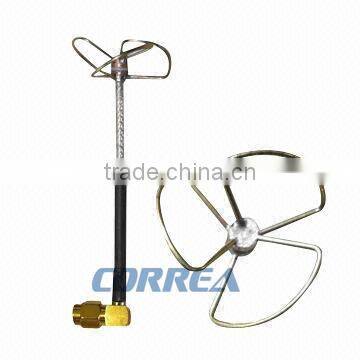

FPV 5.8G Clover Leaf Omni-directional Circular Polarized Antenna Set
Negotiable
MOQ: 1 Pair (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Hong Kong, China
Brand Name:
Correa
Model Number:
ANT-CL34H
Payment & Shipping
Payment Methods:
Port of Shipment:
Hong Kong
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
5G8 Wireless Video Downlink 32CH 400mW 5.8GHz A/V FPV TransmitterNegotiableMOQ: 1 Piece -
FPV Video Race Band TS58400 5.8G 400mw 32CH Mini AV Transmitter With RaceBandNegotiableMOQ: 1 Piece
-
FPV Quadcopter 1CH LED Light Controller Electronic RC Switch 2A 1 ChannelNegotiableMOQ: 1 Piece
-
Readty To Fly DIY Quads Assembled 280mm L280 FPV Racer RTF QuadcopterNegotiableMOQ: 1 Piece
-
FPV Quadcopter 2CH LED Lighting Controller 2A 2 Channel RC Light SwitchNegotiableMOQ: 1 Piece
Place of Origin
Hong Kong, China
Brand Name
Correa
Model Number
ANT-CL34H
ELECTRICAL SPECIFICATIONS:
Frequency Range------------------- 5725-5875 MHz
Impedance---------------------------- 50 Ohm
VSWR---------------------------------- Less than 1.5
Gain------------------------------------ 2 dBi
Polarization--------------------------- RHCP
Radiation------------------------------ Omni
Maximum Power Input-watts------- 20 W
MECHANICAL SPECIFICATIONS:
Connector------------------------------ SMA male
Coaxial Cable-------------------------- RG316
Cable length---------------------------- 57mm
Note: All kinds of connectors and 90degree angled are available.
Performance Testing:
