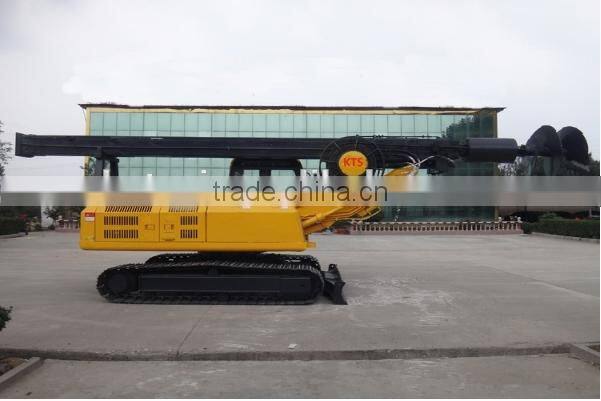

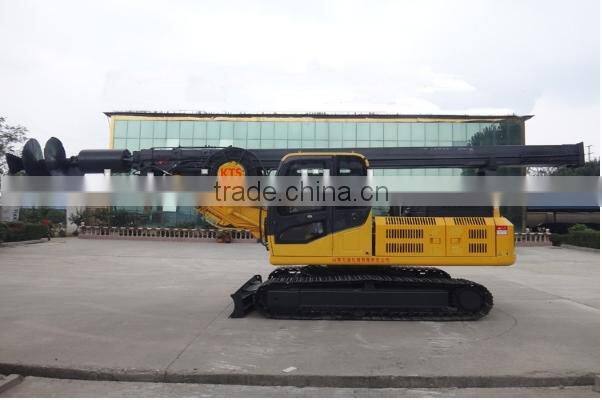

China High-Quality Rotary Drilling Rig Drilling Machine
KTS rotary drilling rig is one kind of full hydraulic power head (top drive) crawler drilling rig. It is mainly applied in drilling work of the anchoring hole of high buildings deep basement foundation, and also used in drilling the drain hole and large tonnage prestressed anchoring hole of the geotechnical engineering such as the side slope of dam construction, railways, highways, etc.; the guiding hole of high pressure jet grouting in gravel area; the blast hole; the anti-floating anchoring hole; the foundational reinforcing hole of interior architecture; the grouting reinforcing hole; the reinforcing hole of road or dam foundation; and the anchoring hole of landslide preventing.
1)Hole Depth ....... 15m
2)Hole Diameter ......Φ500~1500 mm
3)Power Head Rotary Speed (forward / reverse) .... 30-50r/min
4)Power Head Torque ......... 17000-22000 KN.m
5)Power Head Feeding Stroke .... 11-22 m
6)Max. Power Head Lifting Capability .. 150 kN
7)Mast Sliding Compensating Stroke ..... 400 mm
8) Turning Range of Platform ...... -90-90°
9) Climbing Ability .. 25°
10) Engine Power
Diesel ........ 110 kW
11)Overall Dimension (Reduce Type) ... About7000×2200×2950mm;7500*2200*2950mm;8200*2200*2950mm
12) Total Weight . About 11000-16000 kg

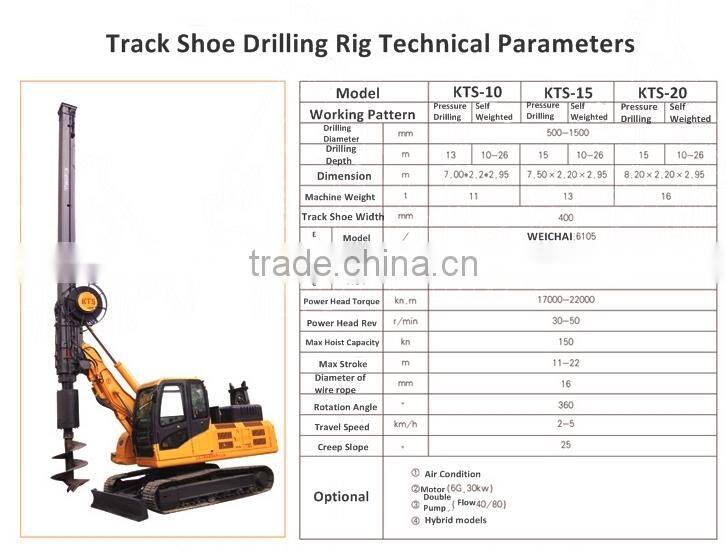

| Model | KTS-10 | KTS-15 | KTS-20 | |||||
| Working Pattern | Pressure Drilling | Self Weighted | Pressure Drilling | Self Weighted | Pressure Drilling | Self Weighted | ||
| Drilling Diameter | mm | 500-1500 | ||||||
| Drilling Depth | m | 13 | 10-26 | 15 | 10-26 | 15 | 10-26 | |
| Dimension | m | 7*2.2*2.95 | 7.5*2.2*2.95 | 8.2*2.2*2.95 | ||||
| Machine Weight | t | 11 | 13 | 16 | ||||
| Track Shoe Width | mm | 400 | ||||||
| Engine | Model | / | WEICHAI:6105 | |||||
| Power | kw | 110 | ||||||
| Rev | r/min | 2200 | ||||||
| Power Head Torque | kn.m | 17000-22000 | ||||||
| Power Head Rev | r/min | 30-50 | ||||||
| Max Hoist Capacity | kn | 150 | ||||||
| Max Stroke | m | 11-22 | ||||||
| Diameter of wire rope | mm | 16 | ||||||
| Rotation Angle | ° | 360 | ||||||
| Travel Speed | km/h | 2-5 | ||||||
| Creep Slope | ° | 25 | ||||||
| Optional |
1.Air Condition 2.Motor(6G.30kw) 3.Double Pump(Flow 40/80) 4.Hybrid Models |
|||||||

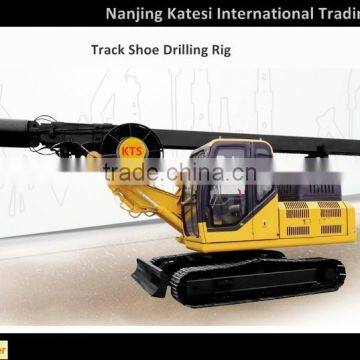

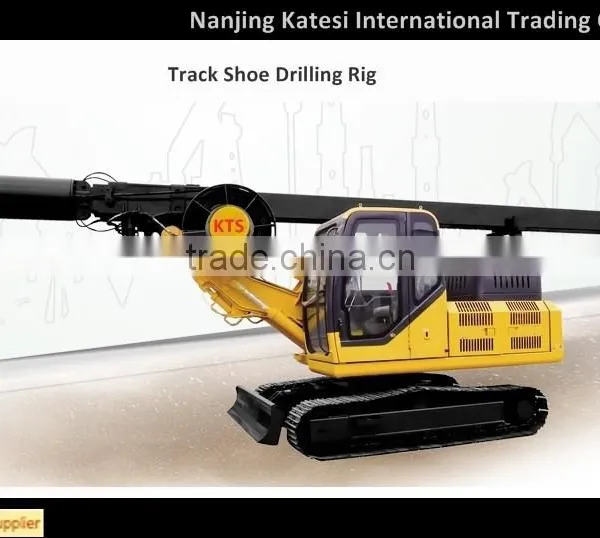

Products Show: Rotary Drilling Rig Drilling Machine
