Hot used wheat harvesters, paddy rice harvester and rice reaper for walking tractors ! New made wheat cutting machine for sale !

Model

Unit

4GL120-130

Matched Engine Power

KW/HP

5.88-16.1 / 8-22

Cutting Width

mm

1200-1300

Working Rate

acres/hr.

24-36

Min Cutting Height(mm)

mm

≤50

Placing Type

 /

Side wise & Banded Placed

Lose-rate

 /

<0.4%

Weight

kg

70

Name

Unit

Parameter

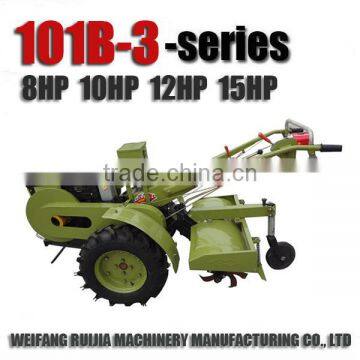

Model

/

101B-3

Overall Dimension

mm

2120*840*1160

Construction Weight

kg

255

Rated Power

kW/HP

5.88-11/8-15

Type

/

Dual-purpose for both traction and drive

Wheel Track

mm

680-850

Min.ground Distance

mm

210

Tyre Type

/

6.00-12

Tyre Pressure

KPa

100-120(field work),

180-200(Transportation work)

Gear (forward/reverse)

/

6/2

Gear speed

km/h

Forward:1.68,2.61,4.22,6.79,10.57,17.08

Reverse:1.29,5.22

Engine and Clutch Connection

/

Leather Belt

Starting Model

/

Hand Starting/Electrical Starting

Clutch Type

/

Dry Friction

Gear Box

/

(3+1)*2

Diesel Engine Weight

kg

80-105

Air Cylinder No.

Cylinder

1

Rated Speed

R/Min

2300

Cooling Model

/

Water-cooled/ Condensing cooled

Item

Unit

Parameter

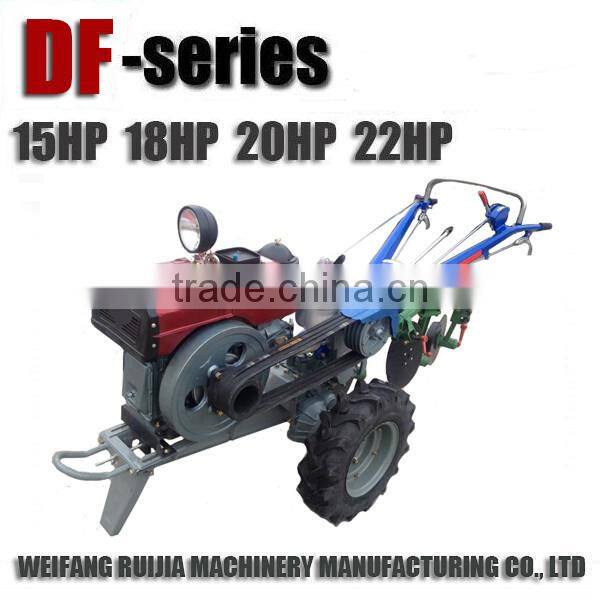

Model

/

Dongfeng/DF151

Overall Dimension

mm

2680*960*1250

Construction Weight

kg

330

Rated Power

kW/HP

11-16.1/15-22

Type

/

Dual-purpose for both traction and drive

Wheel Track

mm

580-800

Min.ground Distance

mm

182

Tyre Type

/

6.00-12

Tyre Pressure

KPa

100-120(field work);

180-200(Transportation work)

Gear (forward/reverse)

/

6/2

Gear speed

km/h

Forward:1.95,3.40,5.70,7.30,13.00,21.70

Reverse:1.56,5.60

Engine and Clutch Connection

/

Leather Belt

Starting Model

/

Hand Starting/Electrical Starting

Clutch Type

/

Dry Friction

Gear Box

/

(3+1)*2

Diesel Engine Weight

kg

150-170

Air Cylinder No.

Cylinder

1

Rated Speed

R/Min

2200

Cooling Model

/

Water-cooled/ Condensing cooled
