Specifications
1.)Model:101B-3
2.)engine power 8-15hp
3.)Cooling Model:Water-cooled/ Condensing cooled

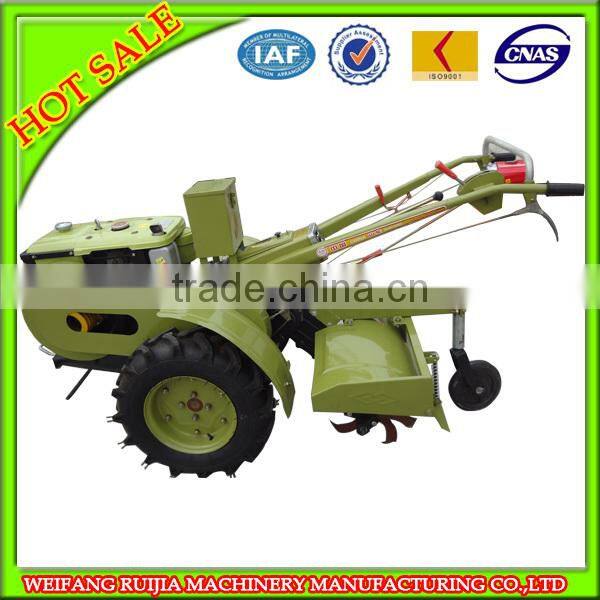

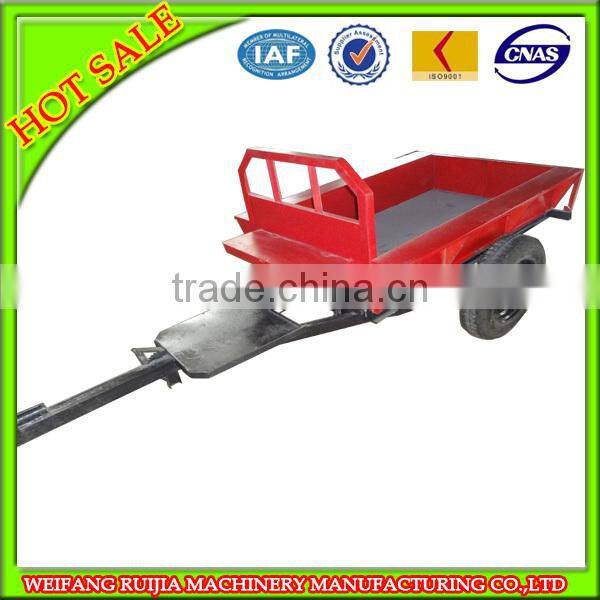

China Manufacturer diesel engine power tiller with 0.5ton /1ton/1.5ton two wheel trailer
Name | Unit | Parameter |
Model | / | 101B-3 |
Overall Dimension | mm | 2120*840*1160 |
Construction Weight | kg | 255 |
Rated Power | kW/HP | 5.88-11/8-15 |
Type | / | Dual-purpose for both traction and drive |
Wheel Track | mm | 680-850 |
Min.ground Distance | mm | 210 |
Tyre Type | / | 6.00-12 |
Tyre Pressure | KPa | 100-120(field work),180-200(Transportation work) |
Gear (forward/reverse) | / | 6/2 |
Gear speed | km/h | Forwad:1.68,2.61,4.22,6.79,10.57,17.08 Reverse:1.29,5.22 |
Engine and Clutch Connection | / | Leather Belt |
Starting Model | / | Hand Starting/Electrical Starting |
Clutch Type | / | Dry Friction |
Gear Box | / | (3+1)*2 |
Diesel Engine Weight | kg | 80-105 |
Air Cylinder No. | Cylinder | 1 |
Rated Speed | R/Min | 2300 |
Cooling Model | / | Water-cooled/ Condensing cooled |

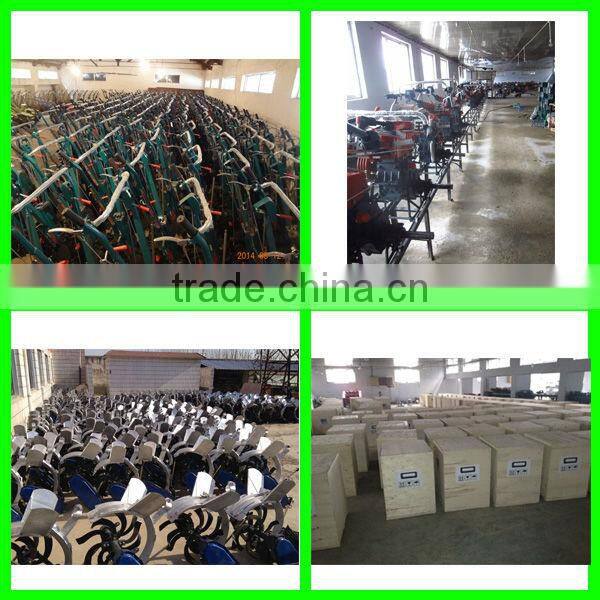

Weifang Ruijia Machinery Manufacturing Co., Ltd was established in 2004, and devotes to the supplying of farm machines for more than ten years.
We strive to provide customers with farm machines and the attachments which meet the customer’s expectations and satisfaction.

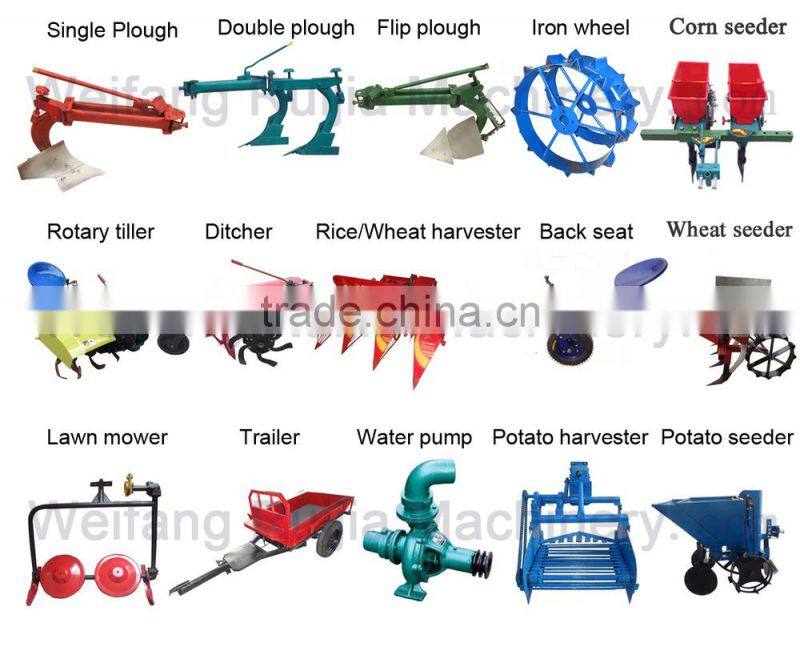

Our main products include walking tractors, power tillers, rotary cultivators, tiller cultivators, micro tillage machines, rural management machines, etc.
1.Q:What's the type of your power ?
A:101B-3,Dongfeng.
2. Q: What's your power range ?
A: We can offer the power rated range from 8 to 22HP.
3. Q:What’s your payment item ?
A: T/T, L/C.
4. Q:What’s your delivery time ?
A: Within 20 days after receiving the deposit.
5. Q:Do you have export experience?
A: Yes, more than10 years. We have exported our products to Ukraine, Russian, Algeria and other EURO countries
