Magnetic Drum Separator of Wet Type for Mineral Processing
Based on the structure, Wet Type Mineral Processing Magnetic Drum Separator can be divided into reverse-flow(CTN), parallel-flow(CTS) and half reverse-flow(CTB). CTN is used for the dense medium recycling, during which the particle size between 0~0.6mm. CTB is widely used in the links of primary selecting and finished recycling of mine industry, during which the particle size between 0~0.6mm. The particle size of the CTS recycling process is between 0~6mm, which is widely used in mine wet type primary selecting, and is widely used in some process of larger particle size instead of CTB. With recent years’ improvement of technology, CTS become widely used in tails recycling and sea sand iron recycling. Combining with foreign technological development and processing requirement, we put forward the half reverse-flow separator and low-intensity magnetic separator for more areas.
Features
1. High magnetic recovery and discharge. |
2. The feed slurries recover the magnetics. |
3. Available in single or multiple drum applications. |
4. Recover magnetic solids in as clean a magnetic concentrate as possible. |
5. Permanent magnet assembly eliminates coil burn-outs. |
6. The magnet / pole elements are bolted to a mild steel shaft. |
7. The drum is made from thick stainless steel for long service life. |

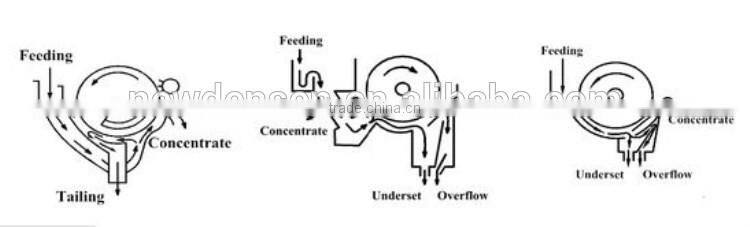

Working principle
There are three types of this item:
TYPE |
Grain-Size(mm) |
Applications |
CTB |
0-0.6 |
Concentration of mine |
CTN |
0-0.6 |
Heavy medium recovery |
CTS |
0-6 |
Tailing recycling |
Specification
Magnetic separator iron ore type |
Drum Specs |
Rotation speed(rpm) |
Handling Capacity |
Motor Power |
||
Dia(mm) |
Length(mm) |
t/h |
m3/h |
kw |
||
CTB/N/S44 |
400 |
400 |
45 |
1~2 |
3 |
1.1 |
CTB/N/S46 |
400 |
600 |
45 |
1~3 |
5 |
1.1 |
CTB/N/S63 |
600 |
300 |
40 |
3~5 |
8 |
1.1 |
CTB/N/S66 |
600 |
600 |
40 |
5~10 |
16 |
1.1 |
CTB/N/S69 |
600 |
900 |
40 |
8~15 |
24 |
1.1 |
CTB/N/S612 |
600 |
1200 |
40 |
10~20 |
32 |
2.2 |
CTB/N/S618 |
600 |
1800 |
40 |
15~30 |
48 |
2.2 |
CTB/N/S712 |
750 |
1200 |
35 |
15~30 |
48 |
3.0 |
CTB/N/S718 |
750 |
1800 |
35 |
20~45 |
72 |
3.0 |
CTB/N/S912 |
900 |
1200 |
28 |
18~30 |
45 |
4.0 |
CTB/N/S918 |
900 |
1200 |
28 |
25~55 |
90 |
4.0 |
CTB/N/S924 |
900 |
1800 |
28 |
35~70 |
110 |
4.0 |
CTB/N/S1015 |
1050 |
1500 |
21 |
30~55 |
95 |
4.0 |
CTB/N/S1018 |
1050 |
1800 |
21 |
40~75 |
120 |
5.5 |
CTB/N/S1021 |
1050 |
2100 |
21 |
45~88 |
140 |
5.5 |
CTB/N/S1024 |
1050 |
2400 |
21 |
52~100 |
160 |
5.5 |
CTB/N/S1027 |
1050 |
2700 |
21 |
60~110 |
180 |
7.5 |
CTB/N/S1030 |
1050 |
3000 |
21 |
65~125 |
200 |
7.5 |
CTB/N/S1218 |
1200 |
1800 |
19 |
47~90 |
140 |
5.5 |
CTB/N/S1224 |
1200 |
2400 |
19 |
82~120 |
192 |
7.5 |
CTB/N/S1230 |
1200 |
3000 |
19 |
80~150 |
240 |
7.5 |

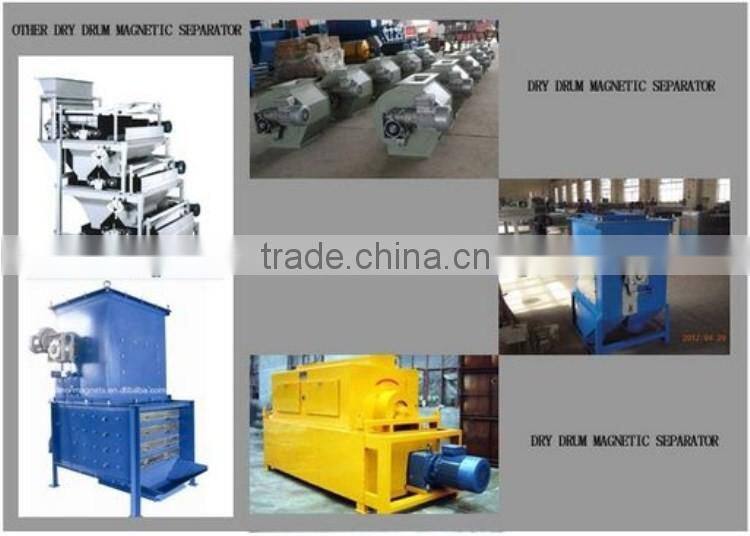

Other Products
Standard sea-worthy export packing
With well-equipped professional engineers and strong technical ability, our company has been in this field for 10 years.
1.We cooperate with superior suppliers (Nord &Schneider)to ensure the quality.
2.Tests of materials are freely checked for the required quality of the equipment before packing.
3.Engineers are always available to service for machinery commissioning overseas, which is not only after sales service support, but also technology support .
4."Keep Improving, Pursuing Excellence" would be kept forever.
1. What is the MOQ of your machine?
A: Our MOQ is 1 set
2. How long is the machine warranty period?
A: The product warranty period is 12 months
