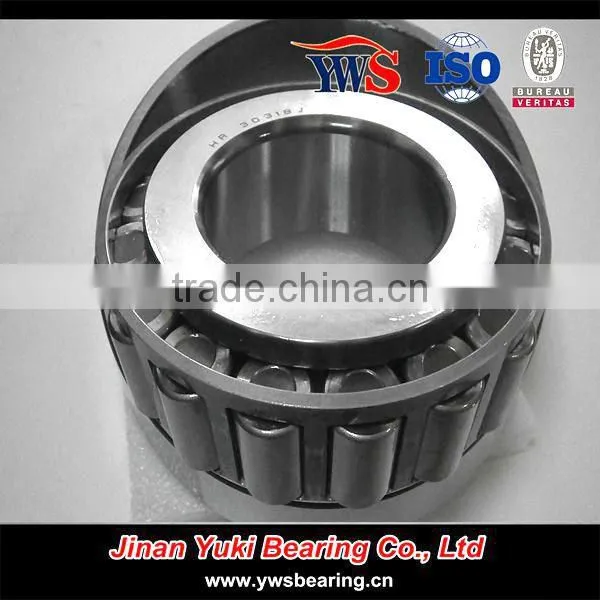

90*190*46.5mm Taper Roller Bearing 3018JR 30318

90*190*46.5mm Taper Roller Bearing 3018JR 30318 thumbnail-1
90*190*46.5mm Taper Roller Bearing 3018JR 30318 thumbnail-2
90*190*46.5mm Taper Roller Bearing 3018JR 30318 thumbnail-3
90*190*46.5mm Taper Roller Bearing 3018JR 30318 thumbnail-4
90*190*46.5mm Taper Roller Bearing 3018JR 30318 thumbnail-5
90*190*46.5mm Taper Roller Bearing 3018JR 30318 thumbnail-6
90*190*46.5mm Taper Roller Bearing 3018JR 30318 photo-1

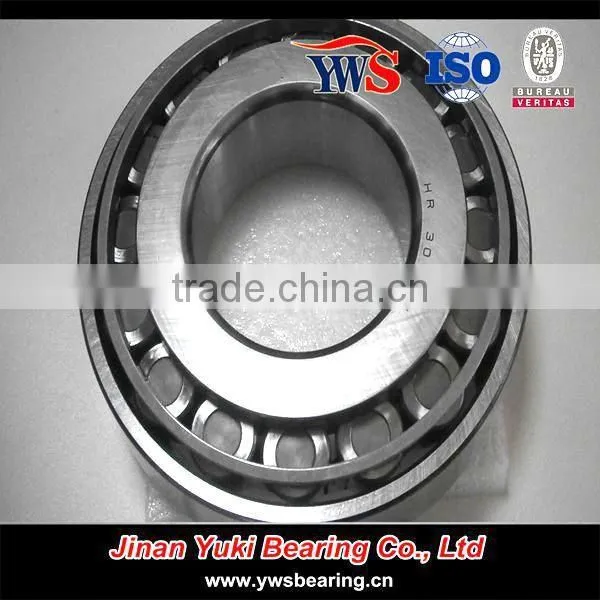

90*190*46.5mm Taper Roller Bearing 3018JR 30318 photo-2

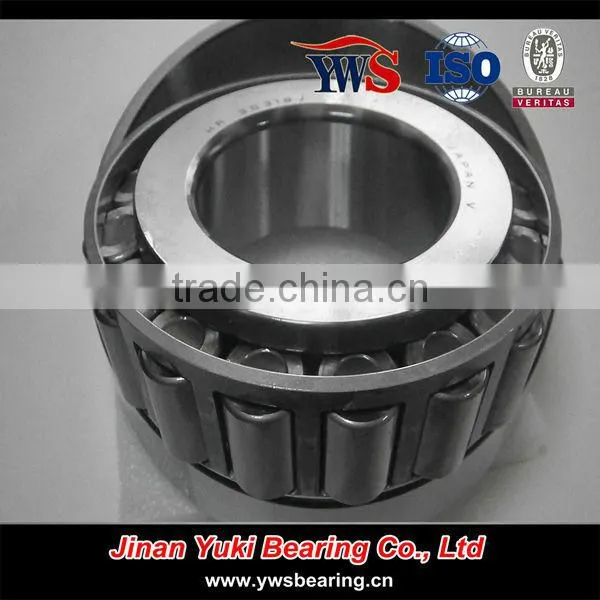

90*190*46.5mm Taper Roller Bearing 3018JR 30318 photo-3

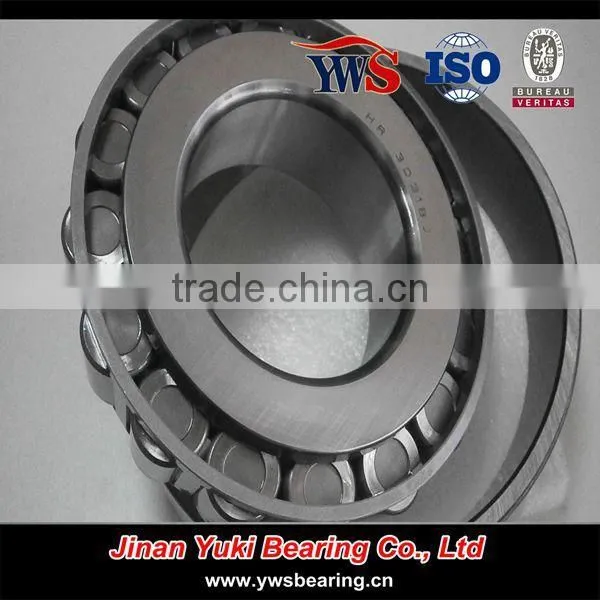

90*190*46.5mm Taper Roller Bearing 3018JR 30318 photo-4

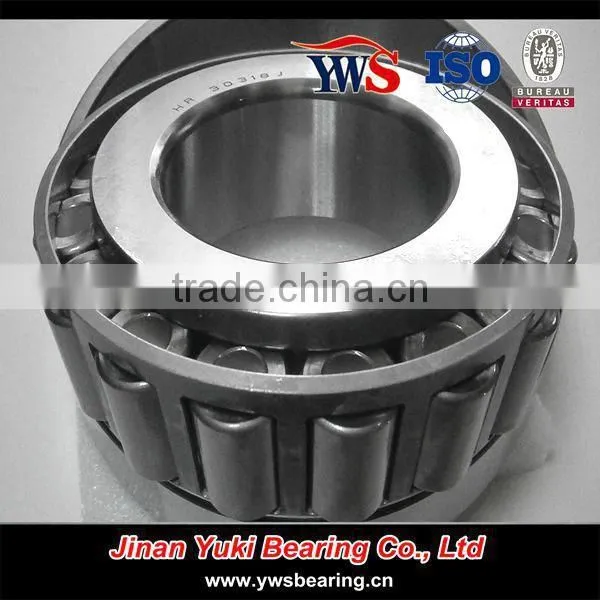

90*190*46.5mm Taper Roller Bearing 3018JR 30318 photo-5

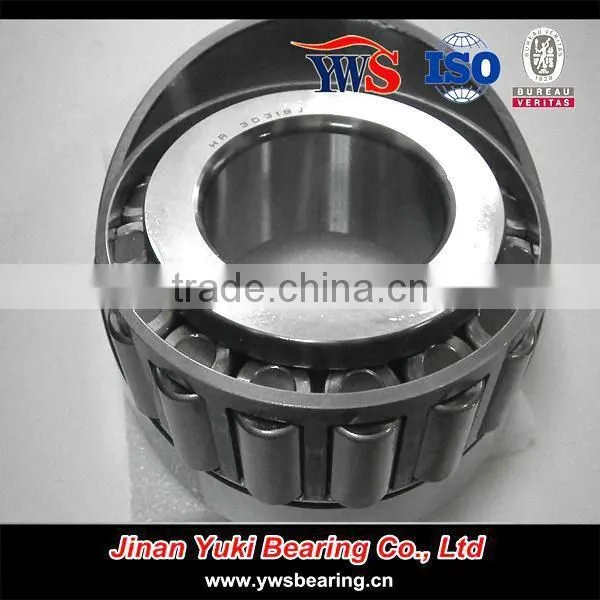

90*190*46.5mm Taper Roller Bearing 3018JR 30318 photo-6
US$ 0.5 - 9 MOQ: 2 Pieces
Key Specifications
Get Latest Price
Brand Name:
YWS or OEM
Bore Size:
35, 540
Outside Diameter:
15, 260
Contact Supplier Request Quote Chat Now
Jinan Yuki Bearing Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name YWS or OEM
Bore Size 35, 540
Outside Diameter 15, 260
Model Number 3018JR 30318
Precision Rating ABEC-1(P0),ABEC-3(P6),ABEC-5(P5),ABEC-7(P4)
Seals Type open
Number of Row Single Row
Place of Origin Shandong, China

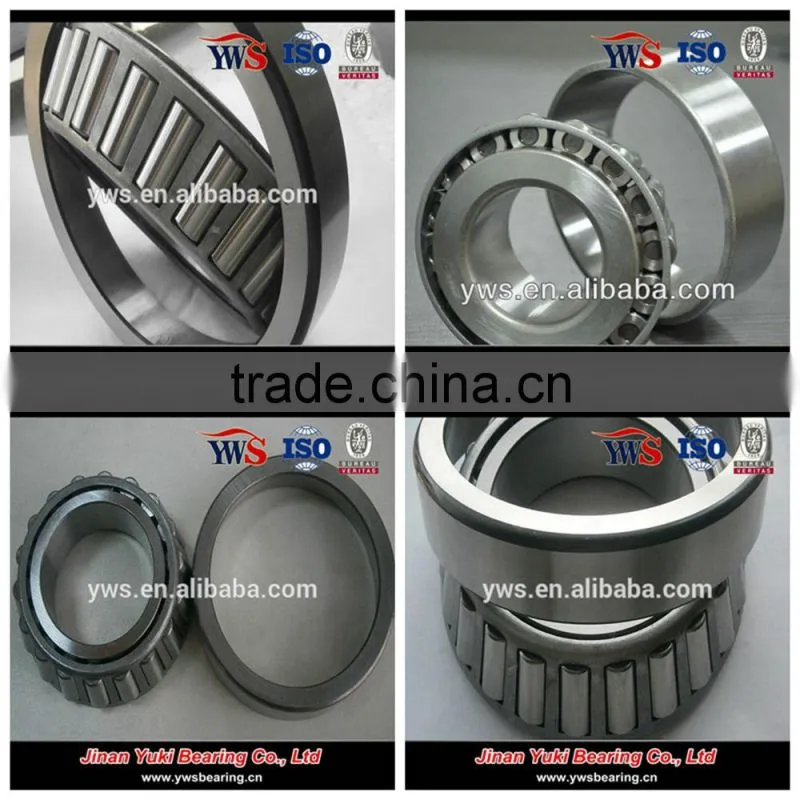

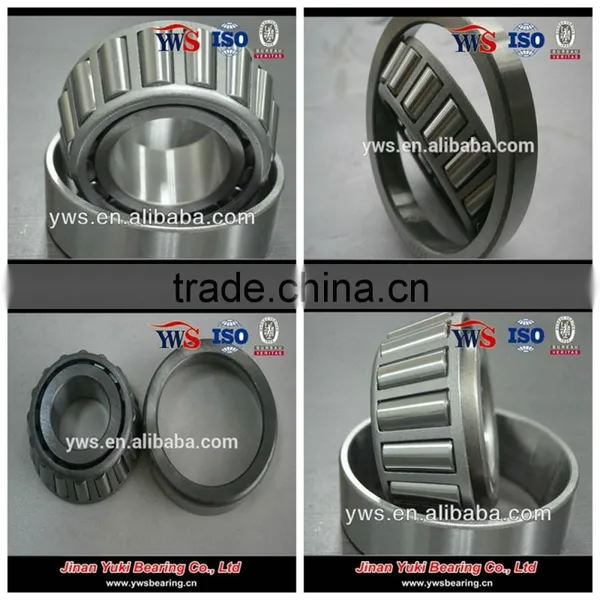

90*190*46.5mm Taper Roller Bearing 3018JR 30318



90*190*46.5mm Taper Roller Bearing 3018JR 30318

90*190*46.5mm Taper Roller Bearing 3018JR 30318

90*190*46.5mm Taper Roller Bearing 3018JR 30318 90*190*46.5mm Taper Roller Bearing 3018JR 30318
90*190*46.5mm Taper Roller Bearing 3018JR 30318

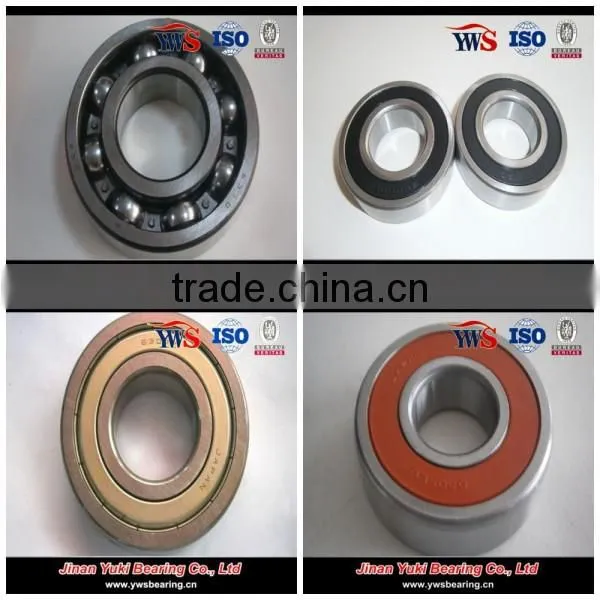

If you need ball bearings ,please Click the next picture:

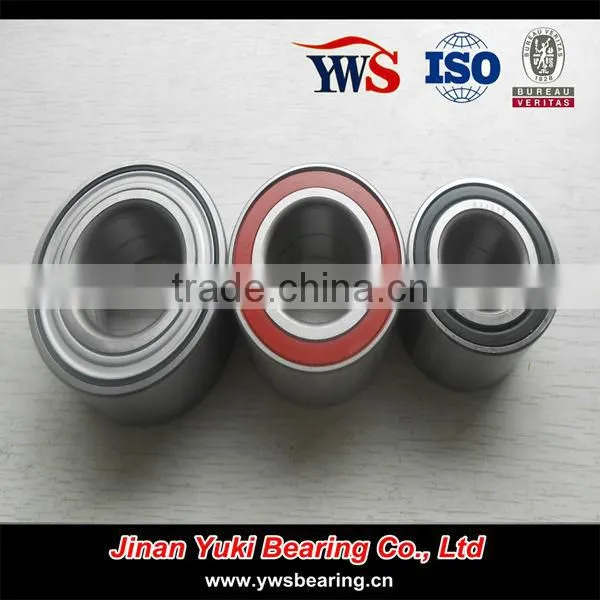

If you need wheel bearings ,please Click the next picture:



If you need one way bearings ,please Click the next picture:



If you need split bearings ,please Click the next picture:



Split roller bearing include:spherical roller bearing,SNL pillow block, Adapter sleeve, Positioning ring



bearing packing







                                                    our office and workshop











                        some VIP customers pictures ,waiting for you







we have other Sweden Japanese Germany brand bearings





taper roller bearing specification



Structure:

Taper

Type:

Roller

Brand Name:

yws or other brands

Bore Size:

21.430 - 280 mm

Outside Diameter:

45.237 - 380 mm

Model Number:





Precision Rating:

P0 P5 P6

Seals Type:

open zz rs

Number of Row:

Single Row

Place of Origin:

Shandong,China

Material::

Chrome steel,carbon steeel .stainless steel POM plastic

Hardness:::

HRC60-HRC65

Cage:::

Brass,Steel,nylon

HS::

84822000

Quality::

Original,OEM brand,high quality.

Rotational Speed::

1000-4000

ServiceRange::

OEM brand,Specially produce diversified brand for customer Require







taper roller bearing feature



Tapered roller bearings have taper-formed raceways on inner and outer rings, and have taper formed rollers between raceways.



If the conical surface extension, it will eventually converge in the bearing axis on a bit.



  • This kind of bearings are generally used to support combined load mainly consisting of radial load.Bearing’s axial bearing capacity by contact angle a that outer raceway point of view decision.
  • The greater the angle,the axial bearing capacity is the bigger.
  • Tapered roller bearings are separable bearings.
  • Their rollers,cage and inner ring are called as cone and outer ring are named as cup.
  • Cone and cup can be mounted respectively.
  • The bearings are classified by elements as single row,double row and multiple row bearings.
taper roller bearing model nos
model ID OD W Cr Cor Grease lubrication speed Oil lubrication speed weight
(mm) (mm) (mm) (kN) (kN) (r/min) (r/min) (kg)
30202 15 35 11 14.9 13.4 12000 16000 0.053
30244 220 400 73 — — — — 35.5
30340 200 420 80 1120 1450 820 1100 53.5
30352 260 540 114 — — — — 108
32205 25 72 24.25 — — — — 0.174
30302 15 42 13 22.8 21.5 9000 12000 0.094
30203 17 40 12 20.8 21.8 9000 12000 0.079
30303 17 47 14 28.2 27.2 8500 11000 0.129
32303 17 47 19 31.9 29.9 9400 13000 0.17
32904 20 37 12 13.2 17.5 9500 13000 0.056
32004 20 42 15 25 28.2 8500 11000 0.095
30204 20 47 14 28.2 30.5 8000 10000 0.126
30304 20 52 15 30.5 28.4 8300 11000 0.17
32304 20 52 21 42.8 46.2 7500 9500 0.23
329/22 22 40 12 15 20 8500 11000 0.065
320/22 22 44 15 26 30.2 8000 10000 0.1
32905 25 42 12 16 21 6300 10000 0.064
32005 25 47 15 28 34 7500 9500 0.11
33005 25 47 17 32.5 42.5 7500 9500 0.129
30205 25 52 15 32.2 37 7000 9000 0.154
33205 25 52 22 47 55.8 7000 9000 0.216
30305 25 62 17 46.8 48 6300 8000 0.263
31305 25 62 17 40.5 46 6300 8000 0.262
32305 25 62 24 61.5 68.8 6300 8000 0.368
329/28 28 45 12 16.8 22.8 750D 9500 0.069
320/28 28 52 16 31.5 40.5 6700 8500 0.142
332/28 28 58 24 58 68.2 6300 8000 0.286
32906 30 47 12 17 23.2 7000 9000 0.072
32006X2 30 55 16 27.8 35.5 6300 8000 0.16
32006 30 55 17 35.8 46.8 6300 8000 0.17
33006 30 55 20 43.8 58.8 6300 8000 0.201
30206 30 62 17.5 43.2 50.5 6000 7500 0.231
32206 30 62 20 51.8 63.8 6000 7500 0.287
33206 30 62 25 63.8 75.5 6000 7500 0.342
30306 30 72 21 59 63 5600 7000 0.387
23334 170 360 120 — — — — —
31306 30 72 21 52.5 60.5 5600 7000 0.392
32306 30 72 27 81.5 96.5 5600 7000 0.562
329/32 32 52 14 23.8 32.5 6300 8000 0.106
320/32 32 58 17 36.5 49.2 6000 7500 0.187

 some Inch tapered roller bearing
Model No. Size(mm) Weight
d D B (KG)
L45449/10 29 50.292 14.224 0.118
M12649/10 21.43 50.005 17.526 0.17
LM11749/10 17.462 28.5 14.605 0.026
LM11949/10 19.05 45.237 15.49 0.122
L68149/10 34.981 59.131 15.875 0.166
LM67048/10 31.75 59.13 15.88 0.18
25590/20 45.618 83.058 23.876 0.556
2788/20 38.1 76.2 23.81 0.455
387/382 57.15 98.425 21 0.596
368/362 50.8 88.9 20.638 0.514
LM48548/10 34.925 65.088 18.034 0.26
11590/20 15.875 42.862 14.288 0.095
09067/195 19.05 49.225 19.845 0.176
1280/20 22.225 57.15 22.225 0.286
L44649/10 26.988 50.292 14.224 0.126
15123/245 31.75 62 19.05 0.244
M88048/10 33.338 68.262 22.225 0.375
M86649/10 30.162 64.292 21.443 0.341
25877/21 34.925 73.025 23.8 0.461
2580/20 31.75 66.421 25.4 0.4
M12749/10 22 45.237 15.494 0.116
3579/25 42.862 87.312 30.162 0.784
3780/20 50.8 93.264 30.162 0.87
LM29749/10 38.1 65.088 18.034 0.233
JL69349/10 38 63 17 0.186
M807046/10 50.8 104.775 36.512 1.49
M801346/10 38.1 82.55 29.37 0.76
LM300849/10 41 68 17.5 0.242
28985/20 60.325 101.6 25.4 0.79
29587/20 63.7 107.95 25.4 0.9
29590/20 66.675 107.95 25.4 0.84
39590/20 66.675 112.712 30.162 1.13
28680/20 55.562 97.63 24.608 0.769
LM102949/10 45.242 73.431 19.558 0.31
LM104948/10 50 82 21.5 0.41
LM501349/10 41.275 73.431 19.558 0.32
LM603049/11 45.242 77.788 19.842 0.36
HM218248/10 89.975 146.975 40 2.36
HM518445/10 88.9 152.4 39.688 2.83
HM212049/10 66.675 122.238 38.1 1.85



Are you interested in these products? If so,pls send inquiry to me. :)
