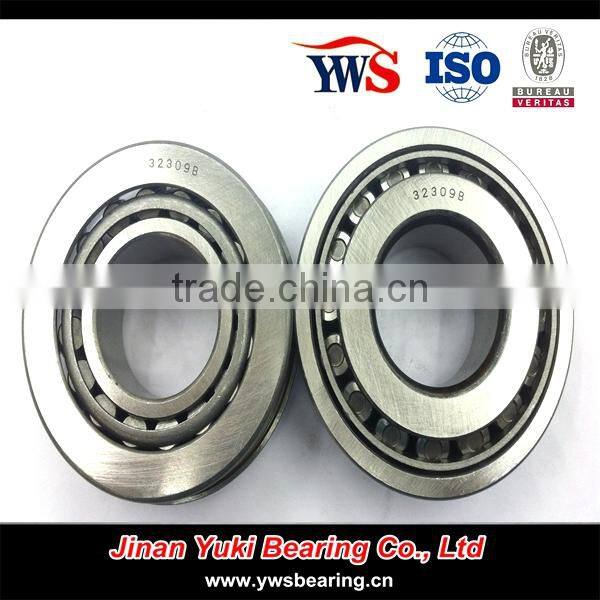

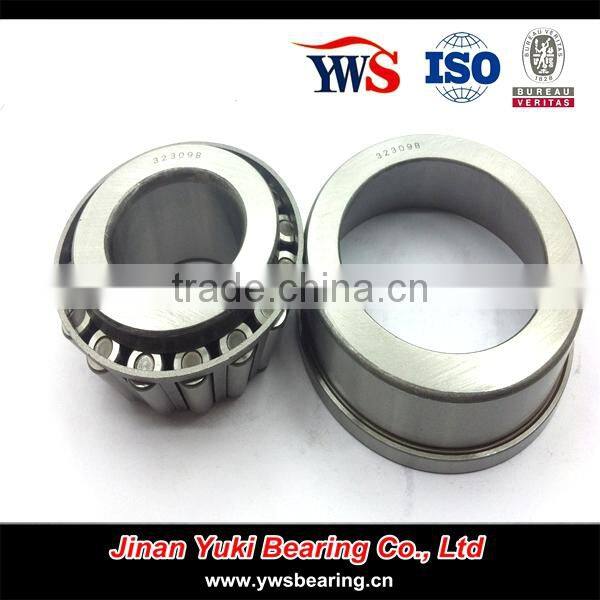

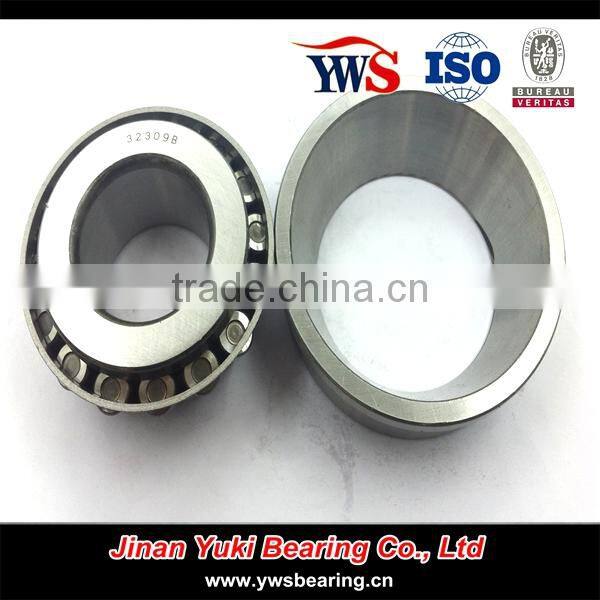

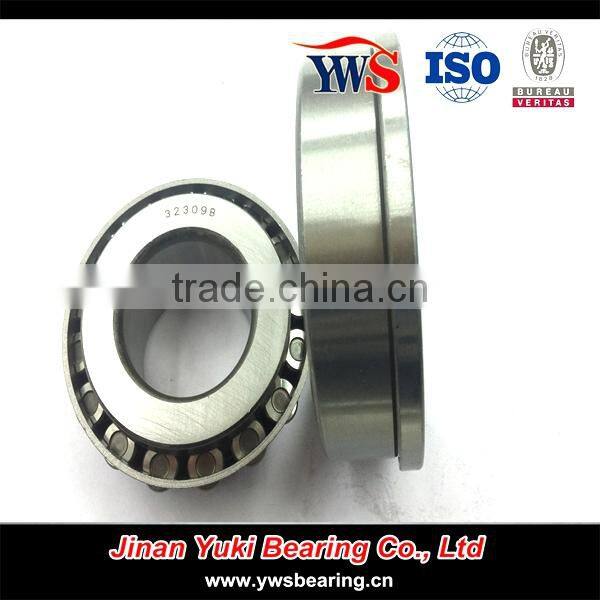

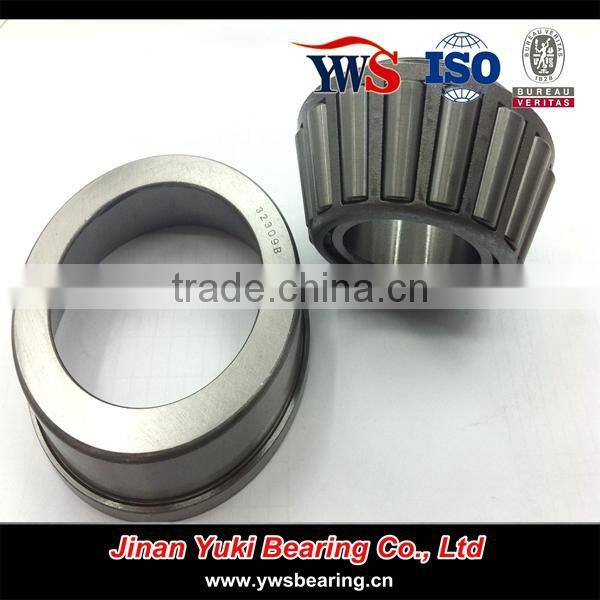

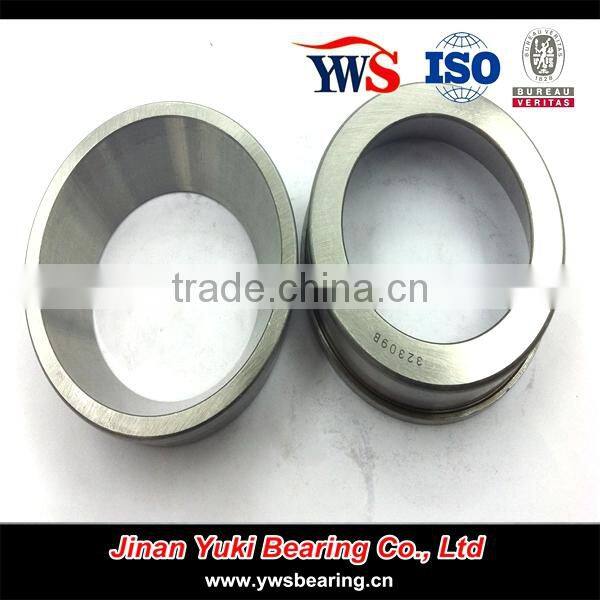

Large Stock Miniature Tapered Roller Bearings 32309B

Large Stock Miniature Tapered Roller Bearings 32309B thumbnail-1
Large Stock Miniature Tapered Roller Bearings 32309B thumbnail-2
Large Stock Miniature Tapered Roller Bearings 32309B thumbnail-3
Large Stock Miniature Tapered Roller Bearings 32309B thumbnail-4
Large Stock Miniature Tapered Roller Bearings 32309B thumbnail-5
Large Stock Miniature Tapered Roller Bearings 32309B thumbnail-6
Large Stock Miniature Tapered Roller Bearings 32309B photo-1
Large Stock Miniature Tapered Roller Bearings 32309B photo-2
Large Stock Miniature Tapered Roller Bearings 32309B photo-3
Large Stock Miniature Tapered Roller Bearings 32309B photo-4
Large Stock Miniature Tapered Roller Bearings 32309B photo-5
Large Stock Miniature Tapered Roller Bearings 32309B photo-6
US$ 0.3 - 5.2 MOQ: 2 Pieces
Key Specifications
Get Latest Price
Brand Name:
YWS /OEM
Bore Size:
19, 150
Outside Diameter:
30, 360
Contact Supplier Request Quote Chat Now
Jinan Yuki Bearing Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
QINGDAO
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name YWS /OEM
Bore Size 19, 150
Outside Diameter 30, 360
Model Number 32309B
Precision Rating ABEC1 ABEC3 ABEC5 ABEC7
Seals Type open 2RS ZZ RS
Number of Row Single Row
Place of Origin Shandong, China

Large stock miniature Tapered roller bearings 32309B

Product Description

Large stock miniature Tapered roller bearings 32309BLarge stock miniature Tapered roller bearings 32309BLarge stock miniature Tapered roller bearings 32309BLarge stock miniature Tapered roller bearings 32309BLarge stock miniature Tapered roller bearings 32309BLarge stock miniature Tapered roller bearings 32309B





Related Products



If you need wheel hub bearing,please Click the next picture:







If you need ball bearing,please Click the next picture:







If you need one way bearing,please Click the next picture:







Packaging & Shipping





Precautions



taper roller bearing specification



Structure:

Taper

Type:

Roller

Brand Name:

yws or other brands

Bore Size:

21.430 - 280 mm

Outside Diameter:

45.237 - 380 mm

Model Number:





Precision Rating:

P0 P5 P6

Seals Type:

open zz rs

Number of Row:

Single Row

Place of Origin:

Shandong,China

Material::

Chrome steel,carbon steeel .stainless steel POM plastic

Hardness:::

HRC60-HRC65

Cage:::

Brass,Steel,nylon

HS::

84822000

Quality::

Original,OEM brand,high quality.

Rotational Speed::

1000-4000

ServiceRange::

OEM brand,Specially produce diversified brand for customer Require







taper roller bearing feature



Tapered roller bearings have taper-formed raceways on inner and outer rings, and have taper formed rollers between raceways.



If the conical surface extension, it will eventually converge in the bearing axis on a bit.



  • This kind of bearings are generally used to support combined load mainly consisting of radial load.Bearing’s axial bearing capacity by contact angle a that outer raceway point of view decision.
  • The greater the angle,the axial bearing capacity is the bigger.
  • Tapered roller bearings are separable bearings.
  • Their rollers,cage and inner ring are called as cone and outer ring are named as cup.
  • Cone and cup can be mounted respectively.
  • The bearings are classified by elements as single row,double row and multiple row bearings.

Bearing Catalog



model ID OD W Cr Cor Grease lubrication speed Oil lubrication speed weight
(mm) (mm) (mm) (kN) (kN) (r/min) (r/min) (kg)
30202 15 35 11 14.9 13.4 12000 16000 0.053
30244 220 400 73 — — — — 35.5
30340 200 420 80 1120 1450 820 1100 53.5
30352 260 540 114 — — — — 108
32205 25 72 24.25 — — — — 0.174
30302 15 42 13 22.8 21.5 9000 12000 0.094
30203 17 40 12 20.8 21.8 9000 12000 0.079
30303 17 47 14 28.2 27.2 8500 11000 0.129
32303 17 47 19 31.9 29.9 9400 13000 0.17
32904 20 37 12 13.2 17.5 9500 13000 0.056
32004 20 42 15 25 28.2 8500 11000 0.095
30204 20 47 14 28.2 30.5 8000 10000 0.126
30304 20 52 15 30.5 28.4 8300 11000 0.17
32304 20 52 21 42.8 46.2 7500 9500 0.23
329/22 22 40 12 15 20 8500 11000 0.065
320/22 22 44 15 26 30.2 8000 10000 0.1
32905 25 42 12 16 21 6300 10000 0.064
32005 25 47 15 28 34 7500 9500 0.11
33005 25 47 17 32.5 42.5 7500 9500 0.129
30205 25 52 15 32.2 37 7000 9000 0.154
33205 25 52 22 47 55.8 7000 9000 0.216
30305 25 62 17 46.8 48 6300 8000 0.263
31305 25 62 17 40.5 46 6300 8000 0.262
32305 25 62 24 61.5 68.8 6300 8000 0.368
329/28 28 45 12 16.8 22.8 750D 9500 0.069
320/28 28 52 16 31.5 40.5 6700 8500 0.142
332/28 28 58 24 58 68.2 6300 8000 0.286
32906 30 47 12 17 23.2 7000 9000 0.072
32006X2 30 55 16 27.8 35.5 6300 8000 0.16
32006 30 55 17 35.8 46.8 6300 8000 0.17
33006 30 55 20 43.8 58.8 6300 8000 0.201
30206 30 62 17.5 43.2 50.5 6000 7500 0.231
32206 30 62 20 51.8 63.8 6000 7500 0.287
33206 30 62 25 63.8 75.5 6000 7500 0.342
30306 30 72 21 59 63 5600 7000 0.387
23334 170 360 120 — — — — —
31306 30 72 21 52.5 60.5 5600 7000 0.392
32306 30 72 27 81.5 96.5 5600 7000 0.562
329/32 32 52 14 23.8 32.5 6300 8000 0.106
320/32 32 58 17 36.5 49.2 6000 7500 0.187



 About us

  Jinan Yuki Bearing Co., Ltd. is a Sino-Japanse joint ventured company, specializing in designing and manufacturing various types of bearings including deep groove ball bearings, spherical insert bearings, tapered roller bearings, angular contact ball bearings, thrust ball bearings, self-aligning ball bearings as well as plastic bearings, ceramic bearing and so on. We could also provide OEM service according to our customers' requirements.
