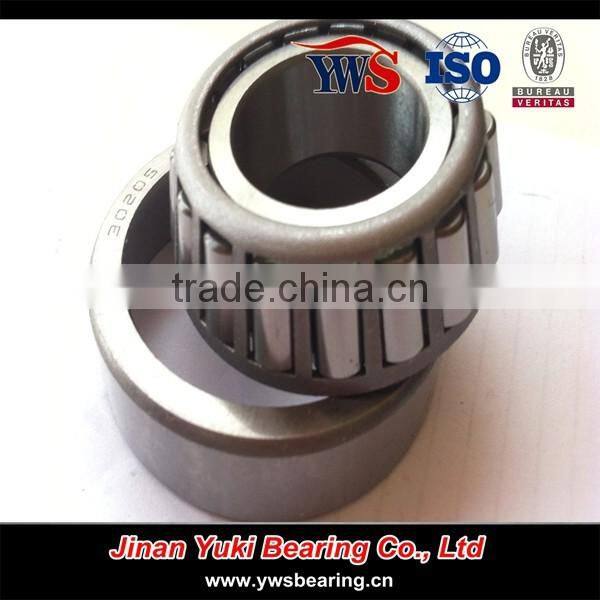

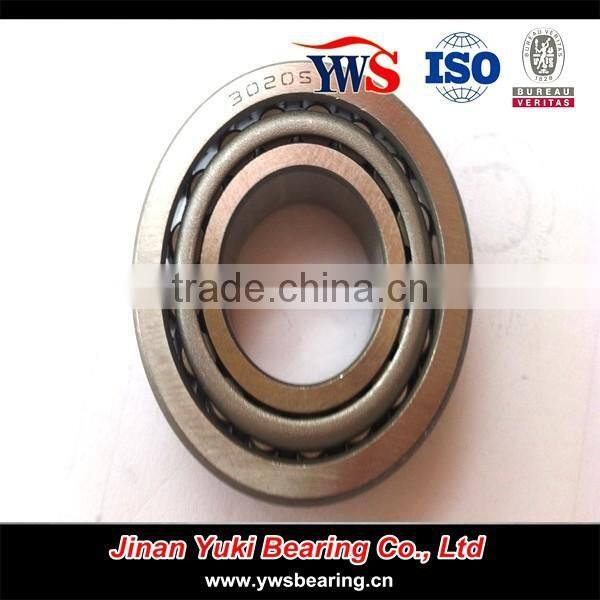

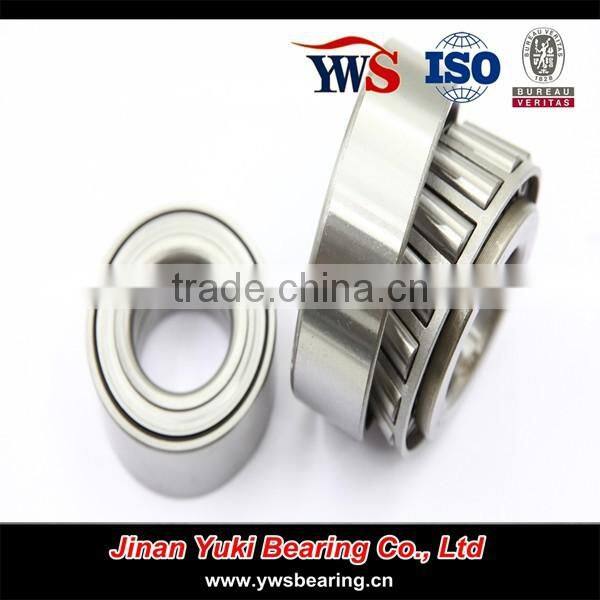

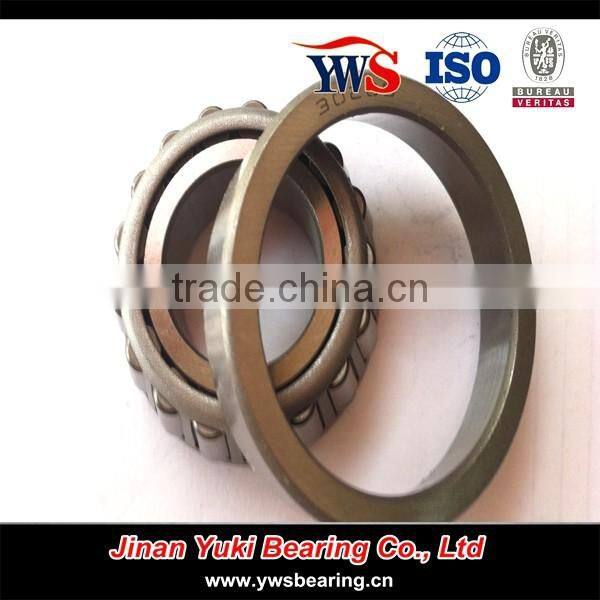

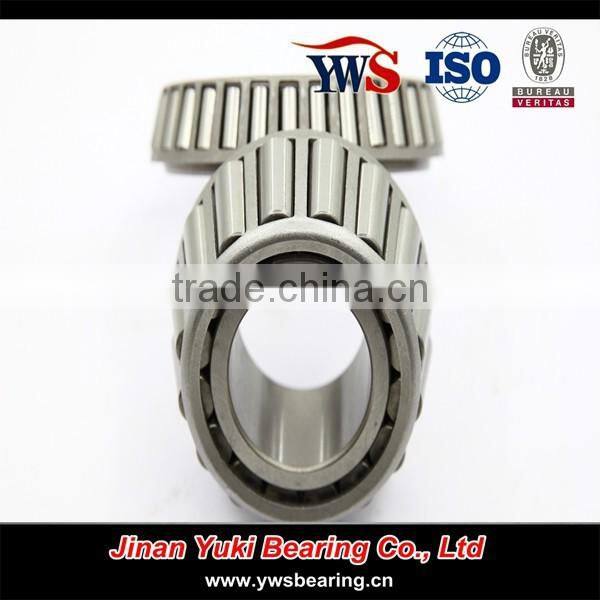

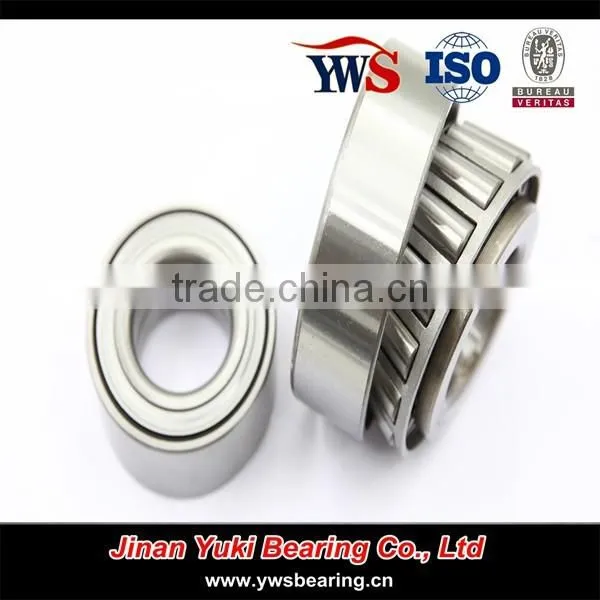

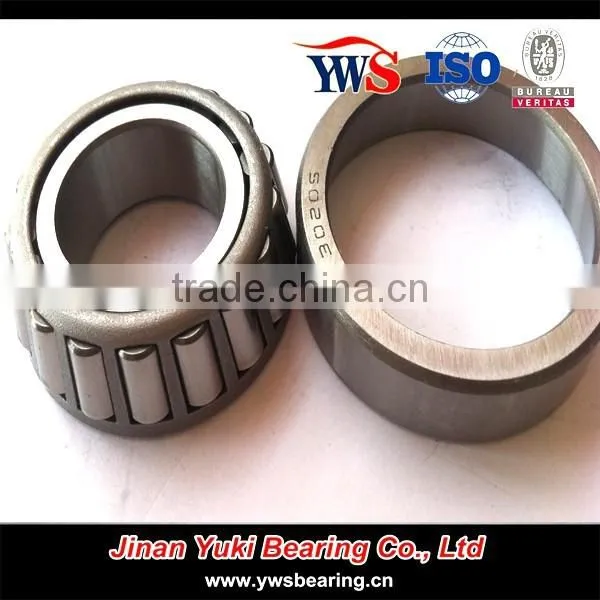

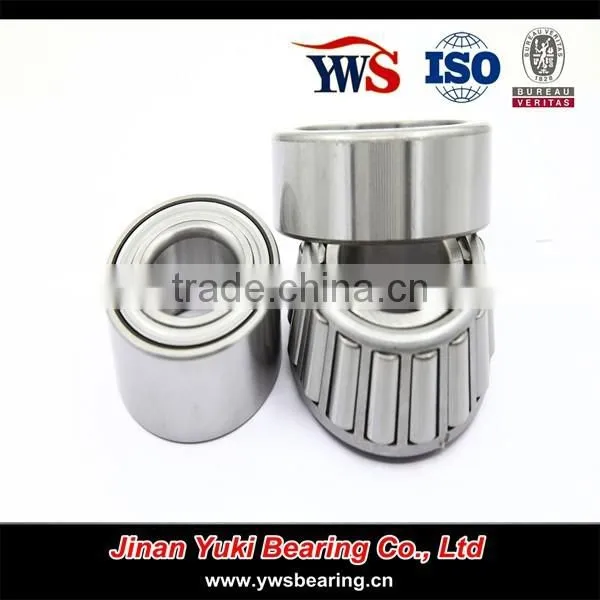

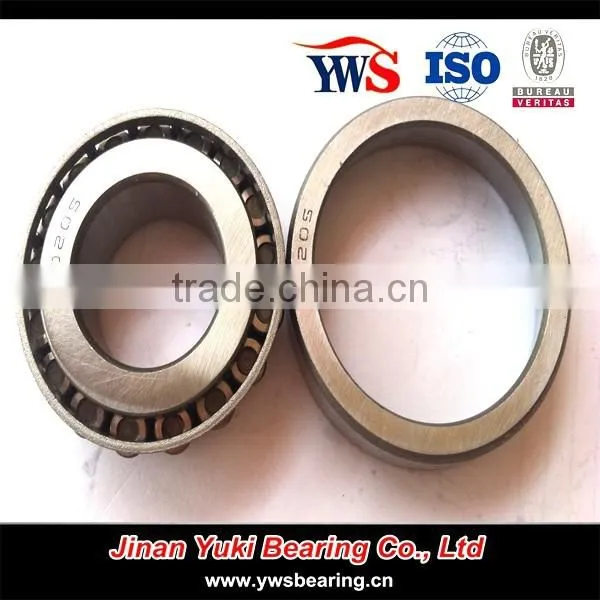

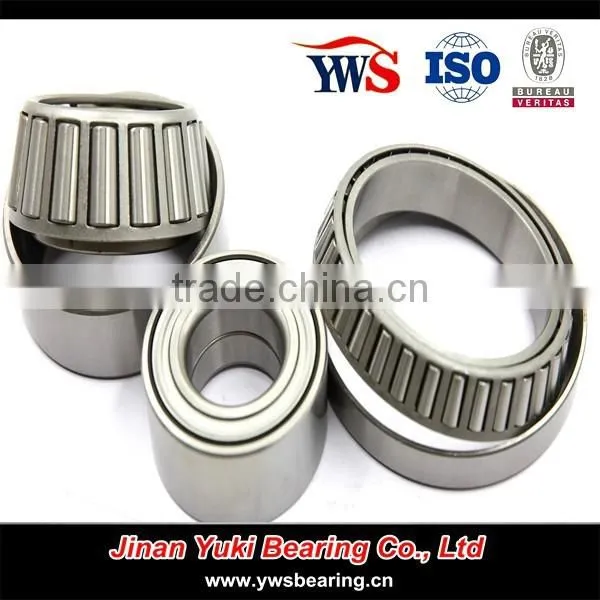

32005jr taper roller bearing

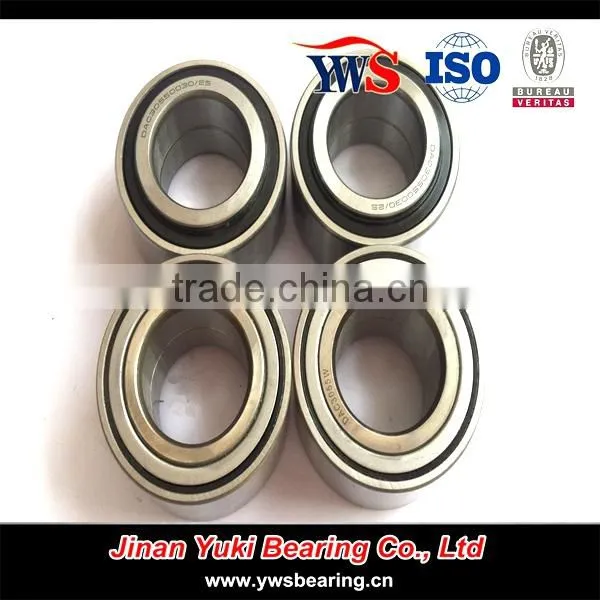

If you need wheel hub bearing,please Click the next picture:
If you need ball bearing,please Click the next picture:
If you need one way bearing,please Click the next picture:
taper roller bearing specification
Structure: |
Taper |
Type: |
Roller |
Brand Name: |
yws or other brands |
Bore Size: |
21.430 - 280 mm |
Outside Diameter: |
45.237 - 380 mm |
Model Number: |
|
Precision Rating: |
P0 P5 P6 |
Seals Type: |
open zz rs |
Number of Row: |
Single Row |
Place of Origin: |
Shandong,China |
Material:: |
Chrome steel,carbon steeel .stainless steel POM plastic |
Hardness::: |
HRC60-HRC65 |
Cage::: |
Brass,Steel,nylon |
HS:: |
84822000 |
Quality:: |
Original,OEM brand,high quality. |
Rotational Speed:: |
1000-4000 |
ServiceRange:: |
OEM brand,Specially produce diversified brand for customer Require |
|
|
taper roller bearing feature
Tapered roller bearings have taper-formed raceways on inner and outer rings, and have taper formed rollers between raceways.
If the conical surface extension, it will eventually converge in the bearing axis on a bit.
- This kind of bearings are generally used to support combined load mainly consisting of radial load.Bearing’s axial bearing capacity by contact angle a that outer raceway point of view decision.
- The greater the angle,the axial bearing capacity is the bigger.
- Tapered roller bearings are separable bearings.
- Their rollers,cage and inner ring are called as cone and outer ring are named as cup.
- Cone and cup can be mounted respectively.
- The bearings are classified by elements as single row,double row and multiple row bearings.
| model | ID | OD | W | Cr | Cor | Grease lubrication speed | Oil lubrication speed | weight |
| (mm) | (mm) | (mm) | (kN) | (kN) | (r/min) | (r/min) | (kg) | |
| 30202 | 15 | 35 | 11 | 14.9 | 13.4 | 12000 | 16000 | 0.053 |
| 30244 | 220 | 400 | 73 | — | — | — | — | 35.5 |
| 30340 | 200 | 420 | 80 | 1120 | 1450 | 820 | 1100 | 53.5 |
| 30352 | 260 | 540 | 114 | — | — | — | — | 108 |
| 32205 | 25 | 72 | 24.25 | — | — | — | — | 0.174 |
| 30302 | 15 | 42 | 13 | 22.8 | 21.5 | 9000 | 12000 | 0.094 |
| 30203 | 17 | 40 | 12 | 20.8 | 21.8 | 9000 | 12000 | 0.079 |
| 30303 | 17 | 47 | 14 | 28.2 | 27.2 | 8500 | 11000 | 0.129 |
| 32303 | 17 | 47 | 19 | 31.9 | 29.9 | 9400 | 13000 | 0.17 |
| 32904 | 20 | 37 | 12 | 13.2 | 17.5 | 9500 | 13000 | 0.056 |
| 32004 | 20 | 42 | 15 | 25 | 28.2 | 8500 | 11000 | 0.095 |
| 30204 | 20 | 47 | 14 | 28.2 | 30.5 | 8000 | 10000 | 0.126 |
| 30304 | 20 | 52 | 15 | 30.5 | 28.4 | 8300 | 11000 | 0.17 |
| 32304 | 20 | 52 | 21 | 42.8 | 46.2 | 7500 | 9500 | 0.23 |
| 329/22 | 22 | 40 | 12 | 15 | 20 | 8500 | 11000 | 0.065 |
| 320/22 | 22 | 44 | 15 | 26 | 30.2 | 8000 | 10000 | 0.1 |
| 32905 | 25 | 42 | 12 | 16 | 21 | 6300 | 10000 | 0.064 |
| 32005 | 25 | 47 | 15 | 28 | 34 | 7500 | 9500 | 0.11 |
| 33005 | 25 | 47 | 17 | 32.5 | 42.5 | 7500 | 9500 | 0.129 |
| 30205 | 25 | 52 | 15 | 32.2 | 37 | 7000 | 9000 | 0.154 |
| 33205 | 25 | 52 | 22 | 47 | 55.8 | 7000 | 9000 | 0.216 |
| 30305 | 25 | 62 | 17 | 46.8 | 48 | 6300 | 8000 | 0.263 |
| 31305 | 25 | 62 | 17 | 40.5 | 46 | 6300 | 8000 | 0.262 |
| 32305 | 25 | 62 | 24 | 61.5 | 68.8 | 6300 | 8000 | 0.368 |
| 329/28 | 28 | 45 | 12 | 16.8 | 22.8 | 750D | 9500 | 0.069 |
| 320/28 | 28 | 52 | 16 | 31.5 | 40.5 | 6700 | 8500 | 0.142 |
| 332/28 | 28 | 58 | 24 | 58 | 68.2 | 6300 | 8000 | 0.286 |
| 32906 | 30 | 47 | 12 | 17 | 23.2 | 7000 | 9000 | 0.072 |
| 32006X2 | 30 | 55 | 16 | 27.8 | 35.5 | 6300 | 8000 | 0.16 |
| 32006 | 30 | 55 | 17 | 35.8 | 46.8 | 6300 | 8000 | 0.17 |
| 33006 | 30 | 55 | 20 | 43.8 | 58.8 | 6300 | 8000 | 0.201 |
| 30206 | 30 | 62 | 17.5 | 43.2 | 50.5 | 6000 | 7500 | 0.231 |
| 32206 | 30 | 62 | 20 | 51.8 | 63.8 | 6000 | 7500 | 0.287 |
| 33206 | 30 | 62 | 25 | 63.8 | 75.5 | 6000 | 7500 | 0.342 |
| 30306 | 30 | 72 | 21 | 59 | 63 | 5600 | 7000 | 0.387 |
| 23334 | 170 | 360 | 120 | — | — | — | — | — |
| 31306 | 30 | 72 | 21 | 52.5 | 60.5 | 5600 | 7000 | 0.392 |
| 32306 | 30 | 72 | 27 | 81.5 | 96.5 | 5600 | 7000 | 0.562 |
| 329/32 | 32 | 52 | 14 | 23.8 | 32.5 | 6300 | 8000 | 0.106 |
| 320/32 | 32 | 58 | 17 | 36.5 | 49.2 | 6000 | 7500 | 0.187 |
About us
Jinan Yuki Bearing Co., Ltd. is a Sino-Japanse joint ventured company, specializing in designing and manufacturing various types of bearings including deep groove ball bearings, spherical insert bearings, tapered roller bearings, angular contact ball bearings, thrust ball bearings, self-aligning ball bearings as well as plastic bearings, ceramic bearing and so on. We could also provide OEM service according to our customers' requirements.
certificate
Are you interested in these products? If so,pls send inquiry to me. :)
