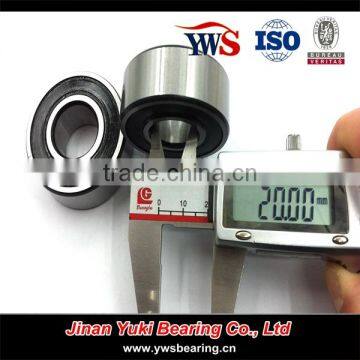

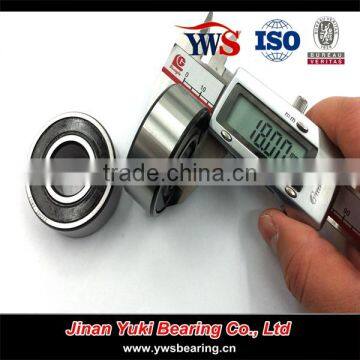

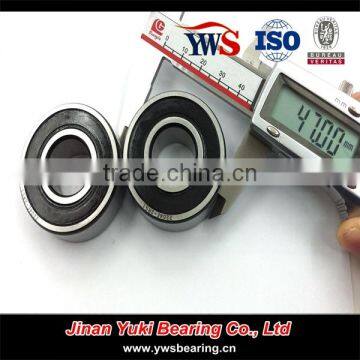

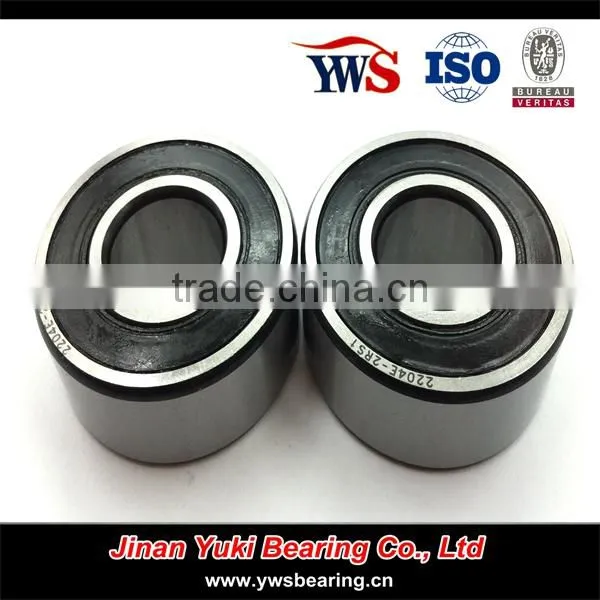

2204E 2rs hot sale self aligning ball bearing 2204E::
characteristics:
1) Chemical resistant. Can work in various chemicals.
2) No need lubrication, clean, and can wash in the water.
3) Non-magnetic and insulation. Reliable working.
4) Constant working in high temperature till 800 Centigrade by choosing different cage.
5) High speed.
6) Light weight.
7) Outstanding long time working in low temperature till -80 centigrade.
8) Tolerance is as per normal bearings. Easy for assembly.
Application is as under:
Electro plating, electro polishing ,Food processing, vacuum applications.
Fiber processing, conveyor processing. Medical radiation, photo processing,
Computer assembly, electronics applications, Medicine equipment, wet applications
Manufacturing high-grade products is our permanent goal.
1.Material: Chrome steel GCr15
2.Inner diameter: 20mm-240mm
3.Precision Grade: P0
4.OEM accepted
| model | d | D | B | model | d | D | B |
| 1200 | 10 | 30 | 9 | 1205 | 25 | 52 | 15 |
| 2200 | 10 | 30 | 14 | 2205 | 25 | 52 | 18 |
| 1300 | 10 | 35 | 11 | 1305 | 25 | 62 | 17 |
| 2300 | 10 | 35 | 17 | 2305 | 25 | 62 | 24 |
| 1201 | 12 | 32 | 10 | 1206 | 30 | 62 | 16 |
| 2201 | 12 | 32 | 14 | 2206 | 30 | 62 | 20 |
| 1301 | 12 | 37 | 12 | 1306 | 30 | 72 | 19 |
| 2301 | 12 | 37 | 17 | 2306 | 30 | 72 | 27 |
| 1202 | 12 | 35 | 11 | 1207 | 35 | 72 | 17 |
| 2202 | 12 | 35 | 14 | 2207 | 35 | 72 | 23 |
| 1302 | 15 | 42 | 13 | 1307 | 35 | 80 | 21 |
| 2302 | 15 | 42 | 17 | 2307 | 35 | 80 | 31 |
| 1203 | 17 | 40 | 12 | 1208 | 40 | 80 | 18 |
| 2203 | 17 | 40 | 16 | 2208 | 40 | 80 | 23 |
| 1303 | 17 | 47 | 14 | 1308 | 40 | 90 | 23 |
| 2303 | 17 | 47 | 19 | 2308 | 40 | 90 | 33 |
| 1204 | 20 | 47 | 14 | 1209 | 45 | 85 | 19 |
| 2204 | 20 | 47 | 18 | 2209 | 45 | 85 | 23 |
| 1304 | 20 | 52 | 15 | 1309 | 45 | 100 | 25 |
| 2304 | 20 | 52 | 21 | 2309 | 45 | 100 | 36 |
| model | d | D | B | model | d | D | B |
| 1210 | 50 | 90 | 20 | 1215 | 75 | 130 | 25 |
| 2210 | 50 | 90 | 23 | 2215 | 75 | 130 | 31 |
| 1310 | 50 | 110 | 27 | 1315 | 75 | 160 | 37 |
| 2310 | 50 | 110 | 40 | 2315 | 75 | 160 | 55 |
| 1211 | 55 | 100 | 21 | 1216 | 80 | 140 | 26 |
| 2211 | 55 | 100 | 25 | 2216 | 80 | 140 | 33 |
| 1311 | 55 | 120 | 29 | 1316 | 80 | 170 | 39 |
| 2311 | 55 | 120 | 43 | 2316 | 80 | 170 | 58 |
| 1212 | 60 | 110 | 22 | 1217 | 85 | 150 | 28 |
| 2212 | 60 | 110 | 28 | 2217 | 85 | 150 | 36 |
| 1312 | 60 | 130 | 31 | 1317 | 85 | 180 | 41 |
| 2312 | 60 | 130 | 46 | 2317 | 85 | 180 | 60 |
| 1213 | 65 | 120 | 23 | 1218 | 90 | 160 | 30 |
| 2213 | 65 | 120 | 31 | 2218 | 90 | 160 | 40 |
| 1313 | 65 | 140 | 33 | 1318 | 90 | 190 | 43 |
| 2313 | 65 | 140 | 18 | 2318 | 90 | 190 | 64 |
| 1214 | 70 | 125 | 24 | 1220 | 100 | 180 | 34 |
| 2214 | 70 | 125 | 31 | 2220 | 100 | 180 | 46 |
| 1314 | 70 | 150 | 35 | 1320 | 100 | 215 | 47 |
| 2314 | 70 | 150 | 51 | 2320 | 100 | 215 | 73 |
Prducts name |
Bearing (Ball bearing, roller bearing) |
Bra0nd name |
YWS |
Series |
1208KTN1 1213KTN1 2207K-2RSTN1 1206K 2307 2309 2200 |
ID size |
5 mm - 350 mm |
Cage material |
Steel , brass , Iron , plastic |
Precision |
PO P6 |
Sealing |
C3 C4 C1 C2 C0 |
Quality standard |
ISO9001:2000 standard |
Service |
OEM service |
|
Delivery date
|
Normally ready goods and stock winthin 15 days |
|
Payment terms
|
A:100% L/C at sight B: 30% T/T in advance .70% against copy of B/L |
Application |
Mining. Metallurgy. Agriculture. Conveying machinery.auto. machine |
Package |
single color box |
|
Details
|
Jinan yuki bearing Co., Ltd. is one of the leading bearing manufacturers in China. With 20 years’ experience, advanced manufacturing facilities and excellent management staff, we can produce products that are equivalent to the world leading brand bearings. We have our own bearing brand YWS and also distribute bearings of global brands, |
Contact |
86-13589124827 |
YWS-- Your Wise Select, to help you succeed
Hope our excellent quality and competitive price will attract your attention!
About us:
We are a Sino-Japanese Joint Venture company specializing in manufacturing and exporting all kinds of bearings.
Our company can manufacture all types of bearings such as deep groove ball bearings, self aligning ball bearings, thrust ball bearings, spherical insert ball bearings and tapered roller bearings.
Our bearings are made in all kinds of materials: ZrO2, Si3N4, plastic,stainless steel,chrome steel, etc.
We can also supply various types of bearings according to your sample and design.
