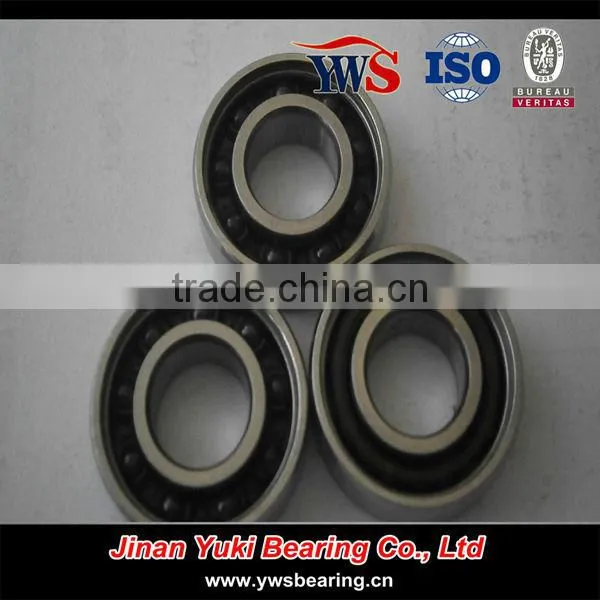

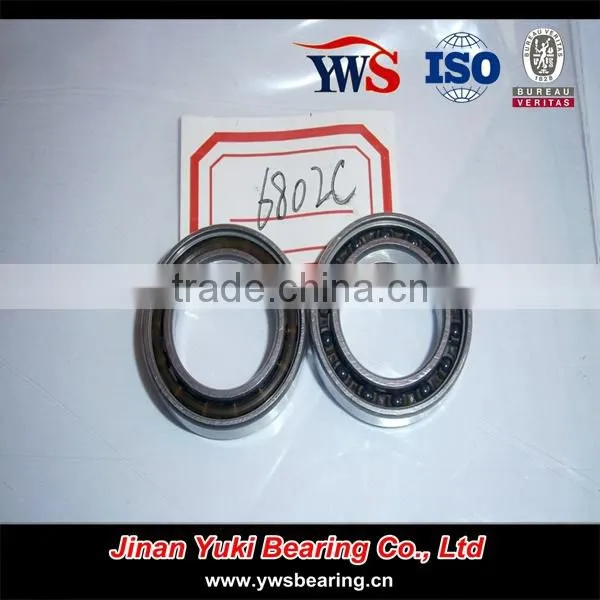

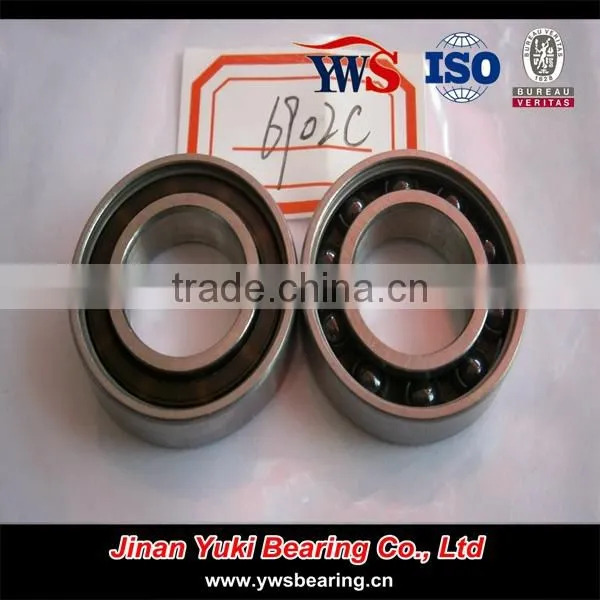

608 6901 6902 6802 699 bicycle hybrid ceramic bearings

608 6901 6902 6802 699 bicycle hybrid ceramic bearings

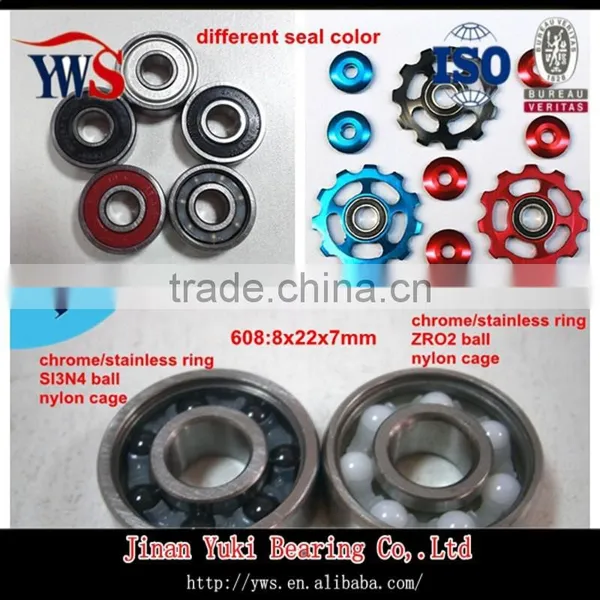

hybrid  ceramic with ZrO2 balls, nylon cage

316 ss hybrid ceramic with PTFE cage

hybrid  ceramic with Si3N4 balls

Full ceramic ZrO2 with PTFE cage

If you need bicycle bearings,please Click the next picture:

6000,6001,6002,6200,6201,6802,6803,6804,6805,6806,6900,6901,

6902,6903,R4,686,687,688,689,699,15267,15268,17287,173110,

163108,16287,16277,6805N,MR2437, 163110, MH-P08, MH-P03,

MH-P04, MH-P08H8, ACB3248,608

We can supply all kinds of bicycle bearing , such as

 (1)bicycle headsets bearing  (2)bicycle bbs bearing  (3)bicycle front/rear hub bearing (4)bicycle sprockets bearing (5)bicycle pedals bearing  (6)bicycle pivots bearing

We can also change the grease according to your need .

We can print what you need words on the bearing

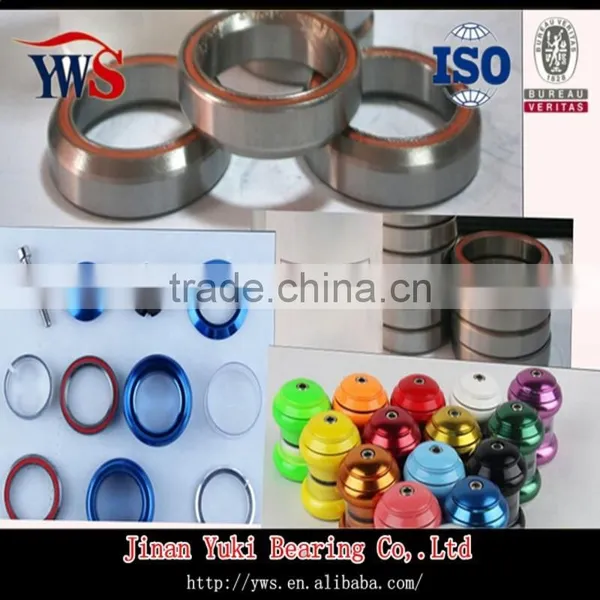

If you need bicycle headsets bearings,please Click the next picture:

Bearing steel material-based, high-grade stainless steel, or hybrid ceramic ball bearings, and some also use titanium Process. The basic use of low-end headset ball cage structure, do not use bearings.

27.15 x 38 x 6.5mm   45°/45°          30.15 x 41 x 7 mm    45°/45°
30.15 x 41 x 6.5mm 45°/45°            30.15 x 41 x 6.5mm 36°/45°

30.15 x 39 x 6.5mm 45/45°              30.15 x 41.8 x 6.5 mm 45/45°

30.15 x 41.8 x 7 mm 45/45°             30.5 x 41.8 x 8 mm 45/45°

30.5 x 41.8 x 8 mm 45/45°               33.5 x 43.8 x 7 mm 30/45°
34.1 x 46.8 x 7mm 45/45°                34.1 x 46.9 x 7mm 45/45°

37 x 49 x 7 mm 45/45°                     39.7 x 50.8 x 7mm 90/90°
40x 51.8 x8 mm 36/45°                    40 x 52 x7 mm 45/45°

40 x 52 x 8mm 45/45°   40 x 52 x 12mm 45/45°   40 x 52 x 6.5 mm 36/45°

If you need bicycle BBs bearings,please Click the next picture:

Axis (BBs) is the most common special regulation ball (which 163110-2RS and 173110-2RS use up) inside use, there are other types of special regulation ball and conventional ordinary ball, as 6802-2RS, 6803-2RS, 6804-2RS, 6805-2RS, 6902-2RS, 6903-2RS, 6905-2RS so on. 15267,15268,17287,173110,163108,16287,16277,6805N,MR2437, 163110

  If you need bicycle Front/Rear Hub bearings,please Click the next picture:

Hubs (front / rear hubs) using conventional single row ball bearing inside more, and some use special rules single / double row ball bearing. As 6804-2RS, 6805-2RS, 6903-2RS, 6904-2RS, 6905-2RS, currently in Taiwan generally upscale hubs, which use a small size specially tapered roller bearings (mainly for high-end car customization). Front wheel hub bearing to separate the main, rear and some use double row bearings, or two separate parallel use.

608 2RS (chrome)   609 2RS ( chrome)    6000 2RS (stainless steel)

6001 2RS (stainless steel)     6002 2RS (chrome)    6002 RS (stainless steel)

6003 2RS (chrome)     6003 2RS (stainless steel)     6900 2RS (chrome)

6901 2RS (stainless steel)    6902 2RS(stainless steel)

6903 2RS (chrome)     6903 2RS (stainless  steel)

If you need bicycle Sprockets bearings,please Click the next picture:

 Sprockets in use to 686-2RS, 608-2RS more, with stainless steel or ceramic ball bearings based

If you need bicycle pedals bearings,please Click the next picture:

Foot (pedals) which use 686-2RS / ZZ, 688-2RS / ZZ, MR137-ZZ-based, and some also use micro-needle roller bearings HK0810, HK1010.

If you need bicycle pivots bearings,please Click the next picture:

Pivot (pivots) which use micro thin-walled 688-2RS, 6800-2RS, 6801-2RS, 6900-2RS, 6902-2RS like more.

ceramic bearing packing

ceramic bearing feature

• Ceramic Ball have many advantages comparing with Steel Ball, the bearing come with ceramic ball can increase bearings performance and extend bearing life when used on High speed, Chemical, Vacuum and High temperature environment.

• Ceramic ball especially Si3N4 have the following performance as low density, high strength, low friction coefficient, electrical and magnetism resistance, wear resistance, well rigidity, lubrication and maintenance free when working, it's the best choice for rollers (inner ring and outer ring are made by metal) of the hybrid construction which are used in high-speed, high accuracy and long life environments. Normally, GCr15 or (AISI440C,316 304) makes inner ring and outer ring; The ceramic ball can adopt ZrO2, Si3N4 or Sic.

  608 6901 6902 6802 699 bicycle hybrid ceramic bearings

Are you interested in these products? If so,pls send inquiry to me. :)
