BB17 BB17-1K BB17-2K One-way Bearings

BB17 BB17-1K BB17-2K One-way Bearings thumbnail-1
BB17 BB17-1K BB17-2K One-way Bearings photo-1
US$ 0.35 - 2.5 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
Yuki bearing/YWS
Bore Size:
8, 40
Outside Diameter:
22, 80
Contact Supplier Request Quote Chat Now
Jinan Yuki Bearing Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao / Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Yuki bearing/YWS
Bore Size 8, 40
Outside Diameter 22, 80
Model Number BB17 BB17-1K BB17-2K
Precision Rating P0 P6 P5
Seals Type 2RS/RS/ ZZ /open
Number of Row Single Row
Place of Origin Shandong, China



BB17 BB17-1K BB17-2K One-way bearings

BB17 BB17-1K BB17-2K One-way bearings

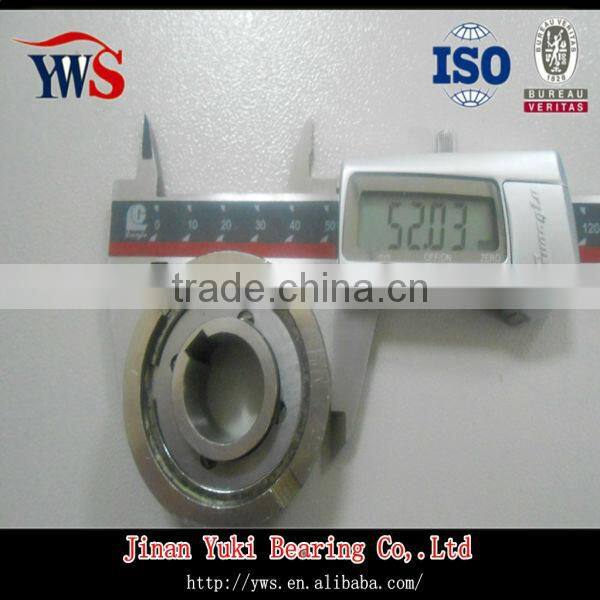

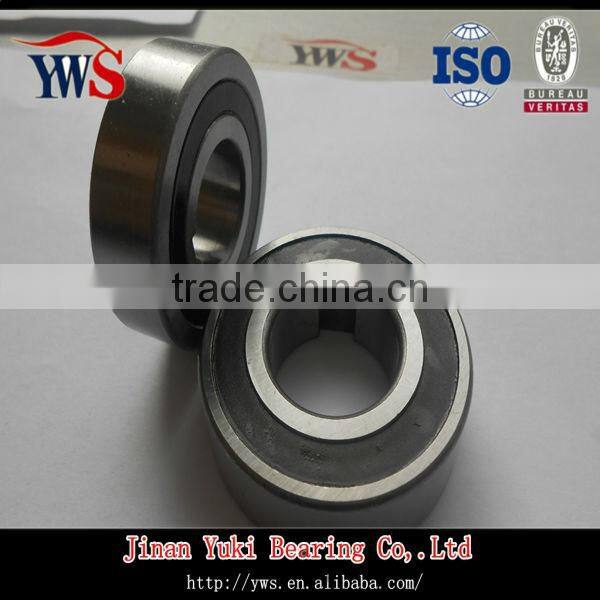

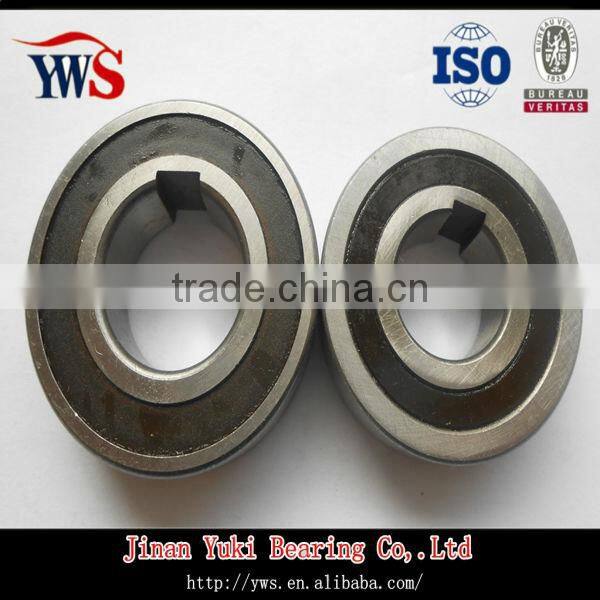

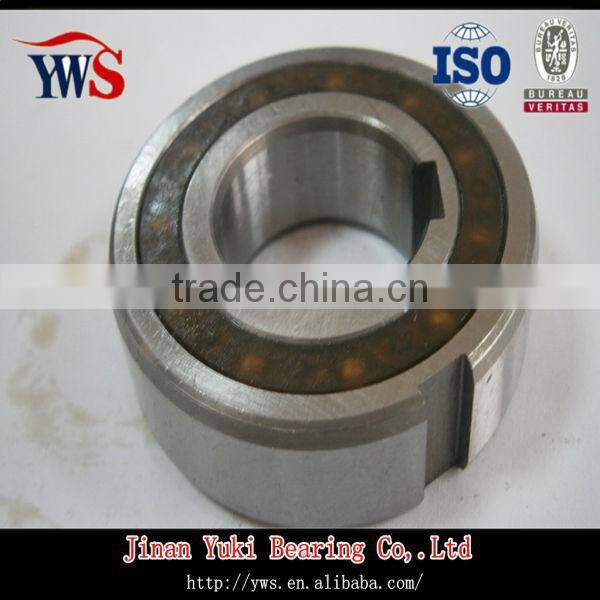

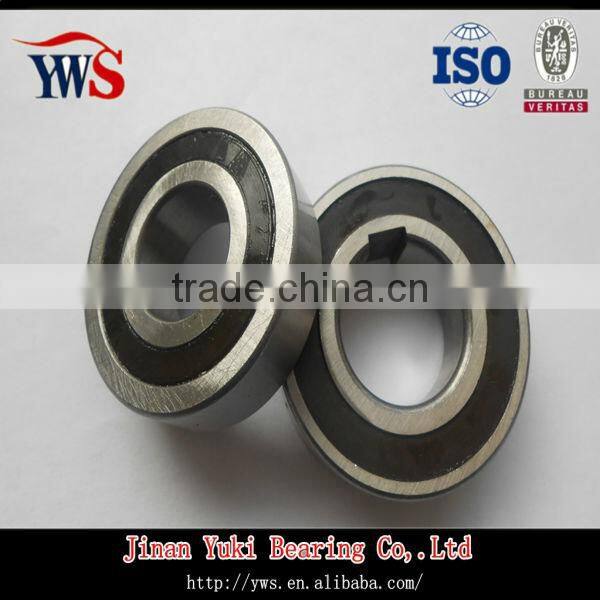

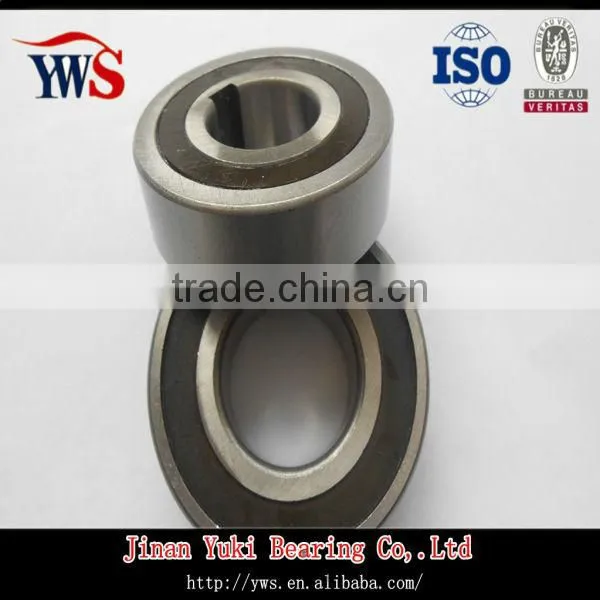

Pictures of BB17 BB17-1K BB17-2K One-way bearings

BB17 BB17-1K BB17-2K One-way bearingsBB17 BB17-1K BB17-2K One-way bearingsBB17 BB17-1K BB17-2K One-way bearingsBB17 BB17-1K BB17-2K One-way bearingsBB17 BB17-1K BB17-2K One-way bearingsBB17 BB17-1K BB17-2K One-way bearings

 Items of One-way bearings

One way clutch CSK type
Bearing No.     Dimension (mm)   Torque Mass
(Stieber-Germany)   Japan d D B (N.m) (kg)
CSK8 CSK 8P CSK 8PP   8 22 9 2.5 0.015
CSK12 CSK 12P CSK 12PP   12 32 10 7.5 0.04
CSK15 CSK 15P CSK 15PP BB15 15 35 11 13.5 0.05
CSK17 CSK 17P CSK 17PP BB17 17 40 12 24.5 0.07
CSK20 CSK 20P CSK 20PP BB20 20 47 14 40 0.11
CSK25 CSK 25P CSK 25PP BB25 25 52 15 68 0.14
CSK30 CSK 30P CSK 30PP BB30 30 62 16 110 0.21
CSK35 CSK 35P CSK 35PP BB35 35 72 17 140 0.3
CSK40 CSK 40P CSK 40PP BB40 40 80 22 260 0.5






Types of One-way clutch bearing



One way clutch also named back stop,overrunning clutch,can overrun freely in one direction of rotation.Can be widely applicated in general industrial transmission machines,printer,textile machinery...etc.



Catalo Index



CSK type-Bearing/freewheel.Dimensions identical to ball bearing series 62



As type-Roller type freewheel.Mounting dimensions similar to bearing series 62



ASNU type-Roller type freewheel.Outer race connection via press fit and/or face key



AA type-Roller type freewheel.Outer race connection via through screws



AE type-Oller type freewheel.Outer race connection via press fit and/or face key



DC type-Double cage sprag type freewheel.Delivered without inner and outer race



KI type-Mini freewheel delivered without outer race



GFKtype-Bearing/freewheel.Dimensions identical to ball bearing series 59



GFR type-Roller type freewheel.Basic module to be completed with flange and cover



B200 type cam clutch-sprag type freewheel cluches

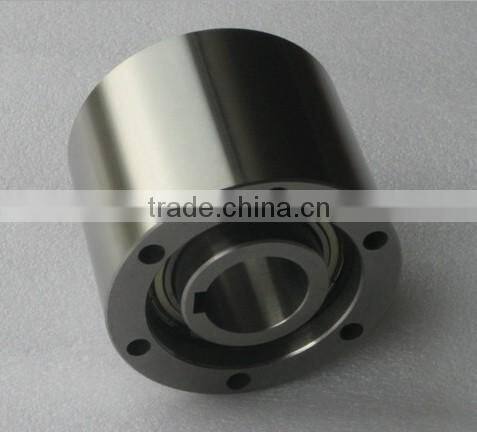

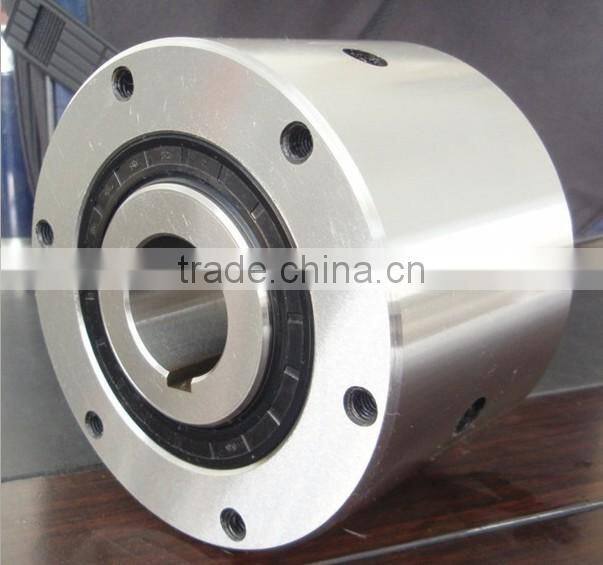

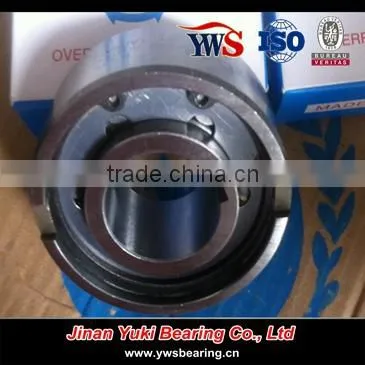

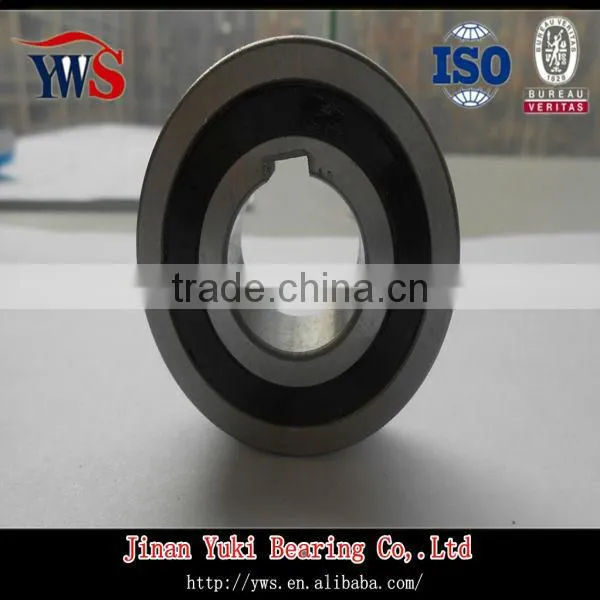

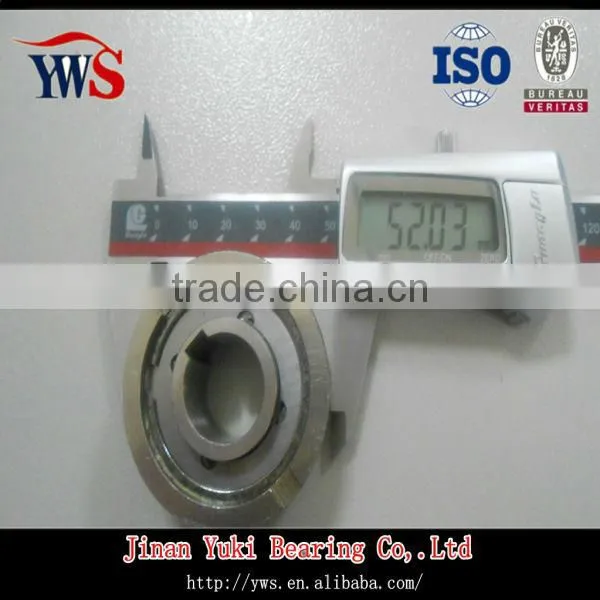

Other One-way clutch bearing

BB17 BB17-1K BB17-2K One-way bearingsBB17 BB17-1K BB17-2K One-way bearingsBB17 BB17-1K BB17-2K One-way bearingsBB17 BB17-1K BB17-2K One-way bearingsBB17 BB17-1K BB17-2K One-way bearings





Description of One-way clutch

1. CSK bearing is one way bearing with a sprag type.



2. CSK bearing has CSK..P, CSK..PP series.



3. CSK bearins series are composed of a 62 series ball bearing (except CSK8 and 40).



4. CSK bearing or One-way bearings are widely used in mining /hydraulic / textile / printing / washing machines, conveyor systems and so on.



5. One way bearing (freewheel bearing) CSK series, HF, HFL, FCB, B200 series.



6. One way clutch (overrunning clutch), GFR, MZ series.



CSK—P and CSK—PP series are available upon request. CSK--P has the same construction and outside dimensions as type CSK, but has a keyway on the inner race; CSK--PP features a keyway in both the inner and outer race. The Model CSK—P clutches must be secured to the shaft by customer supplied snap ring, set collar, spacer, etc. The outer race is secured with a press fit to a N6 tolerance. The Model CSK—PP clutches have a keyway on both races and must be secured by customer supplied snap ring, set collar, spacer, etc

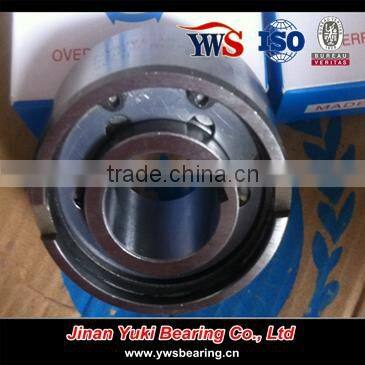

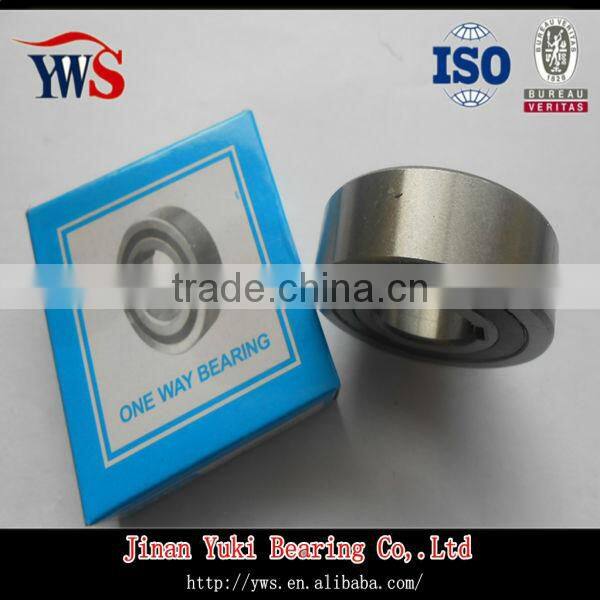

Packing of One-way clutch bearing

BB17 BB17-1K BB17-2K One-way bearings






BB17 BB17-1K BB17-2K One-way bearings
