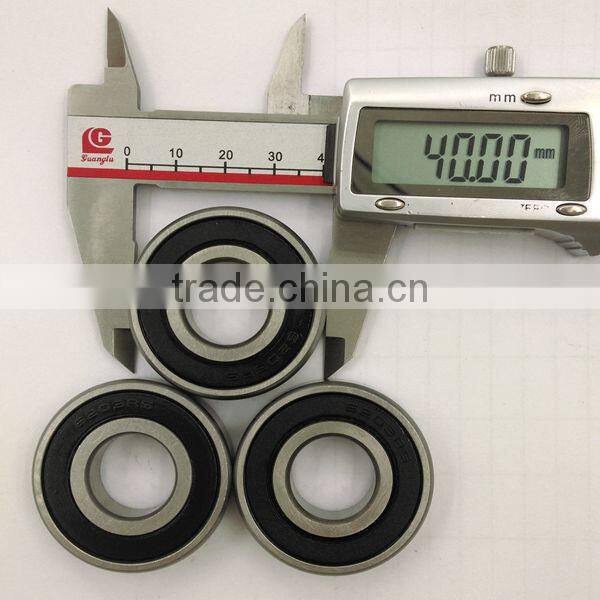

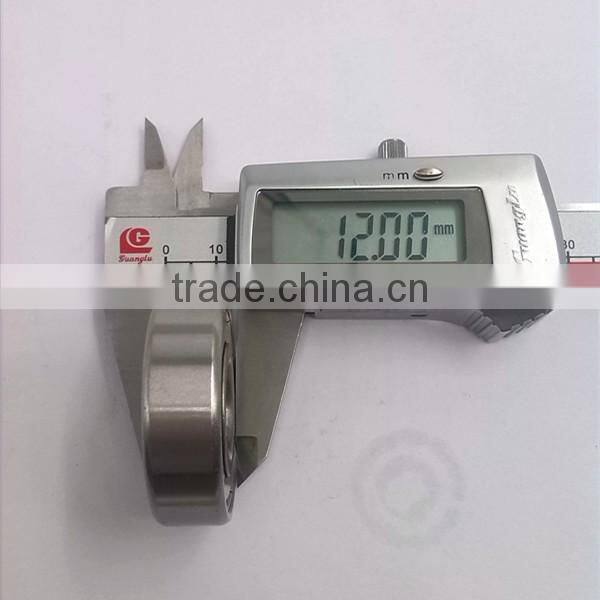

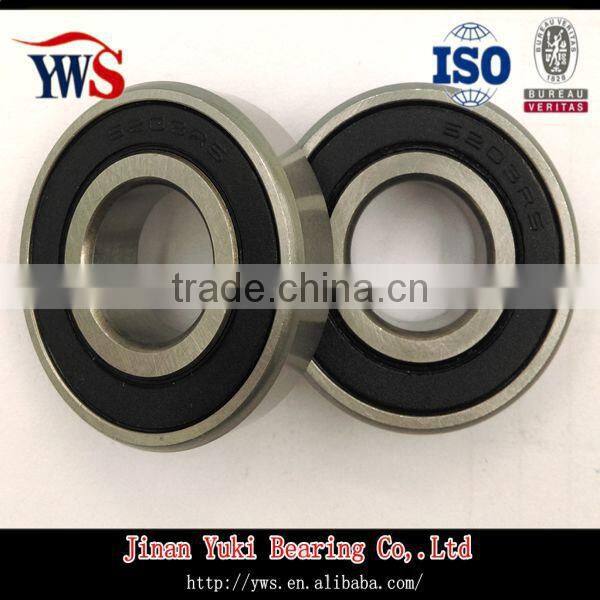

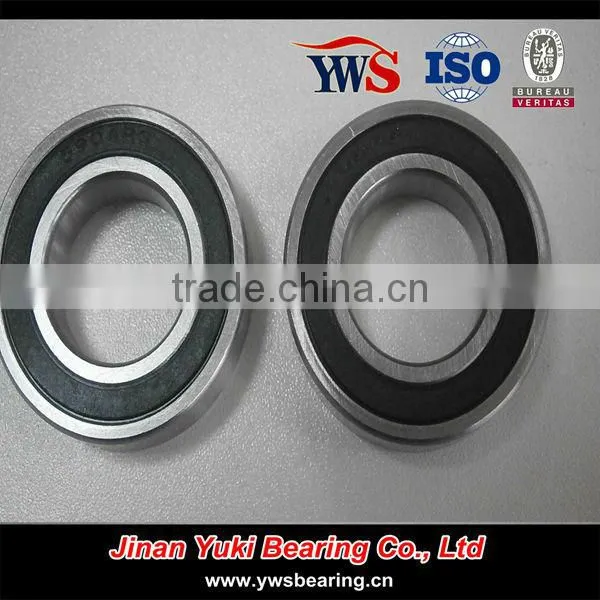

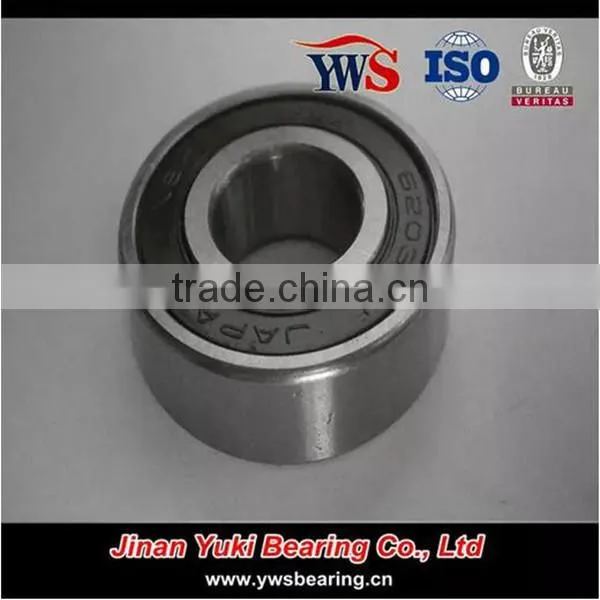

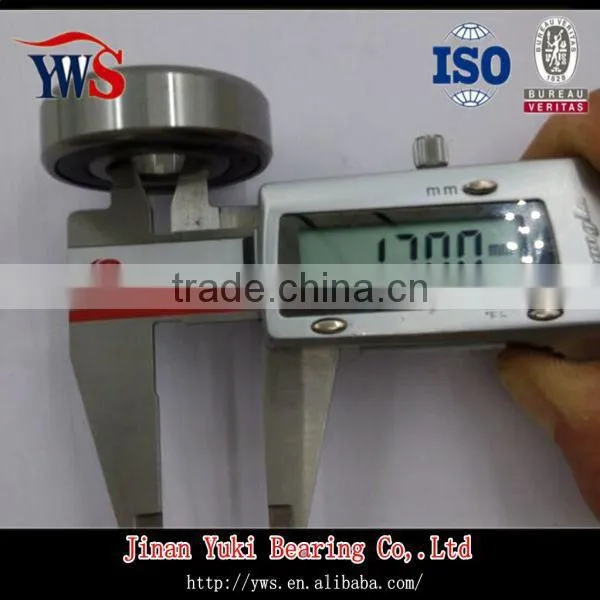

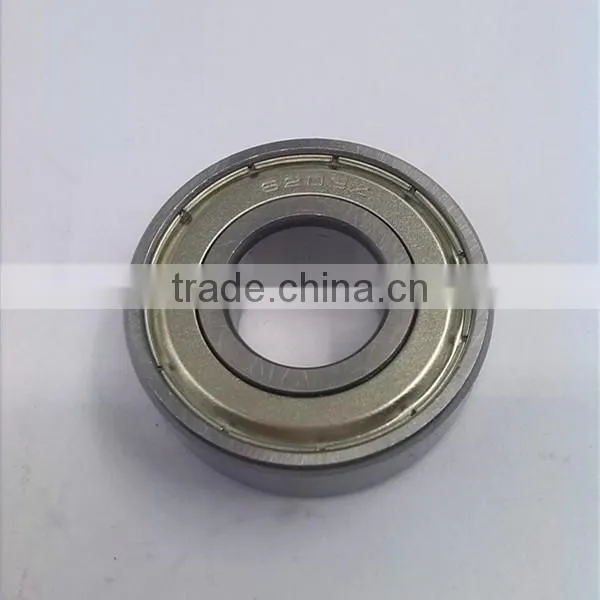

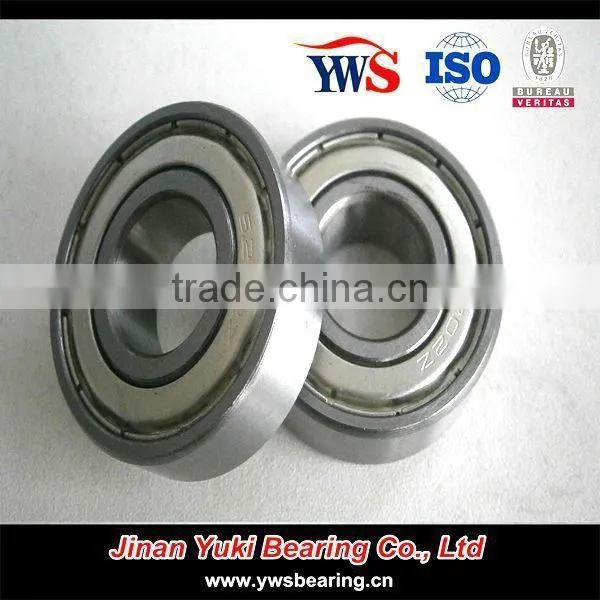

deep groove ball bearing 6203
If you need DDU bearing,please Click the next picture:

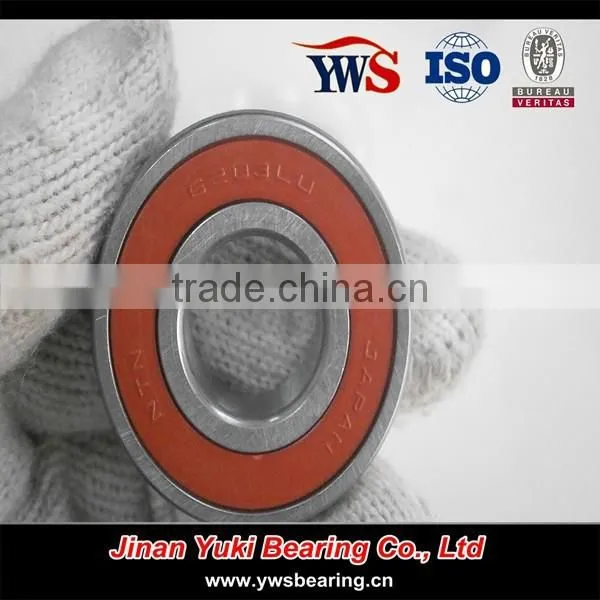

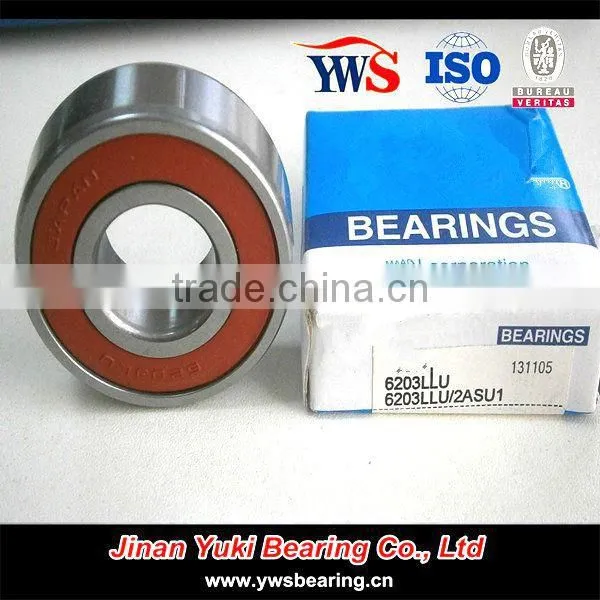

If you need LLU bearing,please Click the next picture:
Ball bearings specification
Brand | YWS OR OEM | ||
Item | ball bearings | ||
seals | 2rs,zz,LLU,DDU | ||
Material |
GCr15 steel,carbon steel,stainless steel etc. | ||
Precision | P0,P2,P5,P6,P4 | ||
Clearance | C0,C2,C3,C4,C5 | ||
bore size | 1-1200mm | outer diameter | 3-1800mm |
cage type | brass;steel plate,nylon,aluminium alloy etc. | ||
seal type |
open,sealed(ZZ,RS,2RS) | ||
features | Long-life with high quality | ||
Low-nosie with strict controlling the quality of bearings | |||
High-load by the advanced high-technical design | |||
Competitive price, which has the most valuable | |||
OEM service offered, to meet the customers'requirements | |||
application | gearbox,auto,reduction box,engine machinery,mining machinery,bicycles,etc. | ||
package | pallet,wooden case,commercial packaging or as customers' requirement | ||
price terms | FOB,CFR,CIF,EXW | delivery time | 3-5 days acccording the quantity |
6000 Series Bearing Catalogue
N0. | Bore | O.D | Width | Chamfer | Load Rating | Maximuum Seed | Weight | ||
mm | mm | mm | mm | Dynamic Cr | Static Cor | Grease r/min | Oil r/min | Kg/pcs | |
604 bearing | 4 | 12 | 4 | 0.2 | 0.97 | 0.36 | 36000 | 44000 | 0.0021 |
605 bearing | 5 | 14 | 5 | 0.2 | 1.33 | 0.505 | 32000 | 40000 | 0.0035 |
606 bearing | 6 | 17 | 6 | 0.3 | 2.19 | 0.865 | 30000 | 38000 | 0.006 |
607 bearing | 7 | 19 | 6 | 0.3 | 2.24 | 0.91 | 28000 | 36000 | 0.008 |
608 bearing | 8 | 22 | 7 | 0.3 | 3.35 | 1.4 | 26000 | 34000 | 0.012 |
609 bearing | 9 | 24 | 7 | 0.3 | 3.4 | 1.45 | 24000 | 32000 | 0.014 |
6000 bearing | 10 | 26 | 8 | 0.3 | 4.55 | 1.96 | 22000 | 30000 | 0.019 |
6001 bearing | 12 | 28 | 8 | 0.3 | 5.1 | 2.39 | 19000 | 26000 | 0.021 |
6002 bearing | 15 | 32 | 9 | 0.3 | 5.6 | 2.83 | 18000 | 24000 | 0.03 |
6003 bearing | 17 | 35 | 10 | 0.3 | 6.8 | 3.35 | 17000 | 22000 | 0.039 |
6004 bearing | 20 | 42 | 12 | 0.6 | 9.4 | 5.05 | 15000 | 19000 | 0.069 |
6005 bearing | 25 | 47 | 12 | 0.6 | 10.1 | 5.85 | 14000 | 18000 | 0.08 |
6006 bearing | 30 | 55 | 13 | 0.6 | 13.2 | 8.3 | 12000 | 15000 | 0.116 |
6007 bearing | 35 | 62 | 14 | 1.0 | 16 | 10.3 | 10000 | 14000 | 0.115 |
6008 bearing | 40 | 68 | 15 | 1.0 | 16.8 | 11.5 | 8000 | 11000 | 0.19 |
6200 Series Bearing Catalogue
Ball Beaing Part Number | Boundary Dimension(mm) | Basic Load Rating(kN) | Limiting Speed(rpm) | Mass (KG) | |||||||
Open | Shielded | Sealed | d | D | B | rsmin | Cr | Cor | Grease | Oil |
|
6200ZZ bearing | ZZ | DDU | 10 | 30 | 9 | 0.3 | 5.1 | 2.39 | 24000 | 29000 | 0.032 |
6201ZZ bearing | ZZ | DDU | 12 | 32 | 10 | 0.6 | 6.8 | 3.06 | 22000 | 27000 | 0.037 |
6202ZZ bearing | ZZ | DDU | 15 | 35 | 11 | 0.6 | 7.65 | 3.72 | 20000 | 24000 | 0.045 |
6203ZZ bearing | ZZ | DDU | 17 | 40 | 12 | 0.6 | 9.55 | 4.79 | 17000 | 21000 | 0.066 |
6204ZZ bearing | ZZ | DUU | 20 | 47 | 14 | 1 | 12.8 | 6.55 | 14000 | 18000 | 0.106 |
6205ZZ bearing | ZZ | DDU | 25 | 52 | 15 | 1 | 14.4 | 7.8 | 12000 | 16000 | 0.128 |
6206ZZ bearing | ZZ | DDU | 30 | 62 | 16 | 1 | 19.5 | 11.31 | 9500 | 1300 | 0.199 |
6207ZZ bearing | ZZ | DDU | 35 | 72 | 17 | 1.1 | 25.7 | 15.2 | 8500 | 11000 | 0.288 |
6208ZZ bearing | ZZ | DDU | 40 | 80 | 18 | 1.1 | 29.5 | 18 | 8000 | 10000 | 0.366 |
6209ZZ bearing | ZZ | DDU | 45 | 85 | 19 | 1.1 | 31.5 | 20.5 | 7000 | 9000 | 0.398 |
6210ZZ bearing | ZZ | DDU | 50 | 90 | 20 | 1.1 | 35 | 23.2 | 6700 | 8500 | 0.454 |
6300 Series Bearing Catalogue
Bearing No. | Principal dimensions (mm) | Limiting speedings (rpm) | basic load ratings (kn) | mass (kg) | |||||
Bearing Item | d | D | B | rsmin | Grease | Oil | Dynamic | Static | Approx |
6300 bearing | 10 | 35 | 11 | 0.6 | 23000 | 27000 | 8.2 | 3.5 | 0.0530 |
6301 bearing | 12 | 37 | 12 | 1.0 | 20000 | 24000 | 9.7 | 4.2 | 0.0600 |
6302 bearing | 15 | 42 | 13 | 1.0 | 17000 | 21000 | 11.4 | 5.5 | 0.0820 |
6303 bearing | 17 | 47 | 14 | 1.0 | 16000 | 19000 | 13.5 | 6.6 | 0.1096 |
6304 bearing | 20 | 52 | 15 | 1.1 | 14000 | 17000 | 15.9 | 7.9 | 0.1417 |
6305 bearing | 25 | 62 | 17 | 1.1 | 12000 | 14000 | 21.2 | 10.9 | 0.2193 |
6306 bearing | 30 | 72 | 19 | 1.1 | 10000 | 12000 | 26.7 | 15.0 | 0.3498 |
6307 bearing | 35 | 80 | 21 | 1.5 | 8800 | 10000 | 33.5 | 19.1 | 0.4542 |
6308 bearing | 40 | 90 | 23 | 1.5 | 7800 | 9200 | 40.5 | 24.0 | 0.6394 |
6309 bearing | 45 | 100 | 25 | 1.5 | 7000 | 8200 | 53.0 | 32.0 | 0.8363 |
6310 bearing | 50 | 110 | 27 | 2.0 | 6400 | 7500 | 62.0 | 38.5 | 1.0822 |
6311 bearing | 55 | 120 | 29 | 2.0 | 5800 | 6800 | 71.5 | 45.0 | 1.3676 |
6312 bearing | 60 | 130 | 31 | 2.1 | 5400 | 6300 | 82.0 | 52.0 | 1.7095 |
6313 bearing | 65 | 140 | 33 | 2.1 | 4900 | 5800 | 92.5 | 60.0 | 2.0970 |
6314 bearing | 70 | 150 | 35 | 2.1 | 4600 | 5400 | 104.0 | 68.0 | 2.5430 |
6315 bearing | 75 | 160 | 37 | 2.1 | 4800 | 5000 | 113.0 | 77.0 | 3.0460 |
6316 bearing | 80 | 170 | 39 | 2.1 | 4800 | 4700 | 123.0 | 86.5 | 3.6090 |
6317 bearing | 85 | 180 | 41 | 3.0 | 3800 | 4500 | 133.0 | 97.0 | 4.2840 |
6318 bearing | 90 | 190 | 43 | 3.0 | 3600 | 4200 | 143.0 | 107.0 | 4.9790 |
6319 bearing | 95 | 200 | 45 | 3.0 | 3300 | 3900 | 153.0 | 119.0 | 5.7400 |
6320 bearing | 100 | 215 | 47 | 3.0 | 3200 | 3700 | 173.0 | 141.0 | 7.0900 |
6321 bearing | 105 | 225 | 49 | 3.0 | 3000 | 3600 | 184.0 | 153.0 | 8.0570 |
6322 bearing | 110 | 240 | 50 | 3.0 | 2900 | 3400 | 205.0 | 179.0 | 9.5260 |
Are you interested in these products? If so,pls send inquiry to me. :)
