Help CenterGalvanized Square Wire Mesh 4x4/Chicken Wire Mesh/Crimped Wire Mesh/Concrete Wire Mesh
Related Products
-
Plain Woven Stainless Steel Crimped Wire MeshUS$ 8 - 10MOQ: 200 Rolls -
Welded Metal Mesh/316 Mesh Stainless Steel Welded Wire/metal Expanded/reinforcement Wire MeshUS$ 8 - 10MOQ: 200 Rolls
-
400 Micron Stainless Steel 316 Wire Mesh Price per Square MeterUS$ 25 - 200MOQ: 100 Rolls
-
Plastic Window Screen,window NetUS$ 8 - 10MOQ: 200 Rolls
-
Aluminum Window Screen Powder Coated MeshUS$ 3 - 60MOQ: 10 Rolls
1.Material:
black steel wire,white steel wire,lead wire,stainless steel wire,brass wire,copper wire and flat wire etc.
2.Wire diameter:0.3mm~12mm
3.Hole size:1.5mm ~50mm
4.Width:as request
5.Length:as request
6.Application:
Crimped wire mesh is used as fence or filters in a lot of industries;Heavy Duty Crimped wire mesh are also named Quarry Mesh,it is mostly used as screen in mining,coal factory,construction and other industries.
7.Supply form:
in rolls and panels.1mX15m,1.5mX15m,2.0mX20m.etc.
The structure is hard, enduring, graceful, the mesh of mesh is even, it has the characteristics of corrosion-resisting and tructfy enduring.

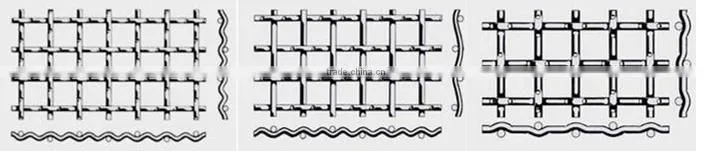

9.Type of weaving:
crimped before weave,double-direction separate,ripples flections,tight lock flections,flattop flections,double-direction flections,list-direction separate ripples flections.
10. specifications:
Specification List of Crimped Wire Mesh/Wire Mesh for Roast | ||||
Wire Gauge | Wire Diameter | Mesh/Inch | Aperture | Weight |
14 | 2.0 | 21 | 1 | 4.2 |
8 | 4.05 | 18 | 1 | 15 |
25 | 0.50 | 20 | 0.61 | 2.6 |
23 | 0.61 | 18 | 0.8 | 3.4 |
24 | 0.55 | 16 | 0.1 | 2.5 |
24 | 0.55 | 14 | 0.12 | 4 |
22 | 0.71 | 12 | 0.14 | 2.94 |
19 | 1 | 2.3 | 0.18 | 1.45 |
6 | 4.8 | 1.2 | 2 | 20 |
6 | 4.8 | 1 | 2 | 20 |
6 | 4.8 | 0.7 | 3 | 14 |
14 | 2.0 | 5.08 | 0.3 | 12 |
14 | 2.0 | 2.1 | 1 | 2.5 |
